| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO |
| Model Number: | WJDZ120S |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 set per month |
| Speed: | 1S/2S,3S/6S | Color: | Optional |
|---|---|---|---|
| Max Boom Length: | 6 Meters With Led Line | Boom Type: | Stright Boom,square Boom |
| COM Interface: | RS485 | Motor Material: | Die-casting Aluminum Alloy |
| High Light: | manual barrier gate,car barrier gate |
||

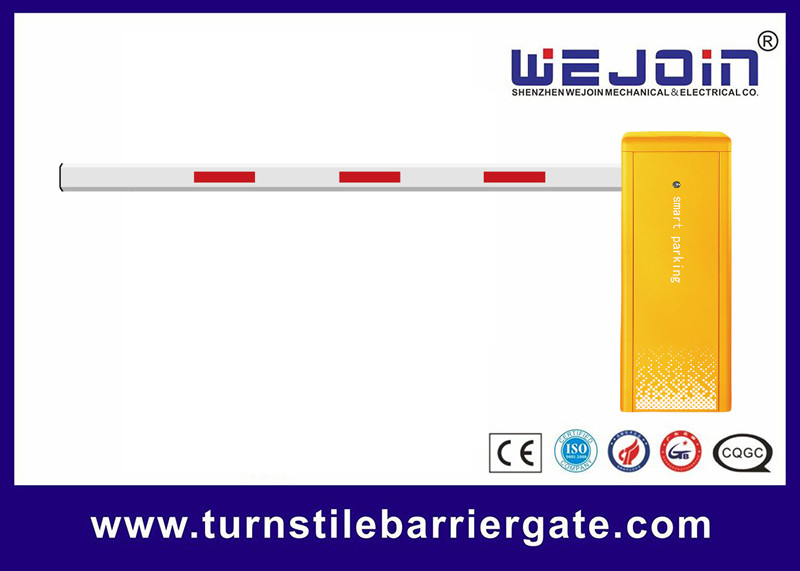

Automatic Boom Intelligent Barrier Gate with Infrared Photocells
Quick Detail:
Name: LED Barrier Gate
Application : Parking System
Speed:1s/2s,3s/6 second
Feature: Manual release
Rated Power:120W
Certificate:CE, ISO,
Net Weight:45KG
Voltage:AC220V, AC110V
Advantage:
1. For one barrier, you can have two speed (no need to change the motor), for example, if you want faster barrier, you can choose 1s/2s motor, and you can also set the up speed to be 1s, and down speed is 2s, or both up and down speed to be 1s or 2s; if you want slower barrier, you can choose 3s/6s motor, the same function as 1s/2s motor.
2. There is braking device on the motor (only on 1s/2s motor), can make the barrier working more stably.
3. Use new designed control board, can have multiple functions.
4. Use free adjusted limit switch.
5. The motor coil use copper wire, the working life of the motor will be much longer. And the working frequency is continuous.
Functions & Features:
1. Manual release
2. Machine core with compression spring,effectively avolds the accidents caused by spring breaking.
3. Die-casting aluminum alloy motor,precision and good at thermal radiating.
4. Motor cooling fan,solving the problem of heat-protection.
5. Double safely limit switches(photoelectricity limit switches(photoelectricty limit switch/motor memory sensor)
6. Reversing on obstacle.
7. Auto-closing.
8.Support the INFRARED PHOTOCELL for anti-bumping function(optional)
9.Traffic light interface.
10.Wire control(switch signal)Remote control(418MHz)
11.RS485 communication module (optional)
Applications:
Barrier Gate with LED boom is installed with LED boom, and traffic light on the housing. When the boom rises up, the light turns green; when the boom falls down, the light turns red. Beside the LED, the boom is also installed with rubber below, which not only indicates the transit situation, but also protect vehicle from hitting.
Communication with customers
Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.
Q: As for the over-heating problem of barrier gate
A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
