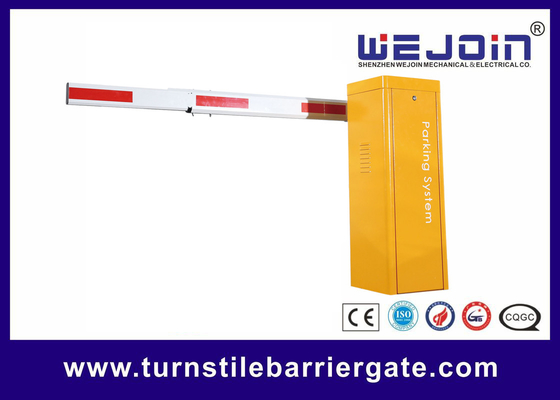

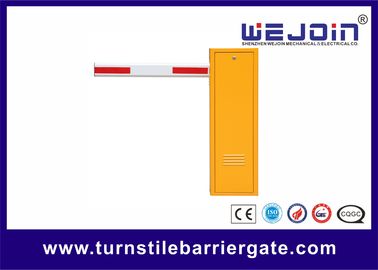

Economic Parking Barrier Gate , Manual Release Security Entrance Gate

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ801J
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Force: Heavy Duty Motor: Die Casting Aluminum Alloy
Speed: 3s,6s Material: Steel
Power: 80W Boom Type: Straight,90degree Folding,180 Degree Folding,fence Boom
Delivery: 3~5 Working Days After Payment Received Voltage: AC220V; AC110V

Product Description



Economic Parking Barrier Gate , Manual Release Security Entrance Gate



Quick Detail

Name

Economic Barrier Gate

Application

Parking System

Speed

3s,6s

Feature

Manual release

Rated Power

80W

Certificate

CE, ISO

Net Weight

40KG

Voltage

AC220V, AC110V



Functions & Features:

1. Wheel manual release.In case of power off,rotate the wheel manual release on the bottom of the motor to raise the boom manually.When power on,the motor will work normally.

2. Machine core with strong and double springs, make the machine core works more steadily.

3. Die-casting aluminum alloy motor,lrecise and good at thermal radiation.

4. Crank and rod structure makes the boom run placidly.

5. Double safety limit switches(photoelectricity limit switch and motor memory sensor)

6. Reversing on obstacle.

7. Auto-closing.

8. Interface for traffic light

9. Support the infrared photocell for anti-bumping function(oltional)

10. Traffic light interface(AC220V,can support lamp with 40w)

11.Wire control(switch signal)/Remote control(418MHZ)

12.Rs485 Communication module(optional)

13.Open,close control interface for parking system.

14.Provide limit state signal to parking system



Application:

Suitable for indoor as well as outdoor parking area.
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls,

hospitals, stadiums, business centers,etc.



Production Series

Model No. Open/Close Speed Max Boom Length Boom Type
WJDZ801J-13 3 seconds 4.5m Straight boom
WJDZ801J-16 6 seconds 6m Straight boom
WJDZ801J-23 3 seconds 3m 90 degree, Articulated boom
WJDZ801J-26 6 seconds 5m 90 degree, Articulated boom
WJDZ801J-33 3 seconds 3m 180 degree, Articulated boom
WJDZ801J-36 6 seconds 5m 180 degree, Articulated boom
WJDZ801J-46 6 seconds 4m Two-level, fence boom
WJDZ801J-56 6 seconds 3.5m Three level, fence boom



Technical Specification

Working Temperature -35℃~+60℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 200W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 40kgs
Arm Speed 3s, 6s
Max boom length 6 meters
Enclosure Rating IP54
MTBF 25000000 times
