| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | ISO,CE, |
| Model Number: | WJTS122 |
| Minimum Order Quantity: | 1set |
| Price: | negotiation |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 3-15 days depending on the quantity |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1,000 set/month |
| Power Supply: | DC Motor | Transit Speed: | 30~40 Persons/min |
|---|---|---|---|
| Name: | Vertical-type Tripod Turnstile | Rated Power: | 36W |
| Frequency: | 50/60HZ | Driving Force: | 3KG |
| High Light: | turnstile entry systems,pedestrian security gates |
||
Company security metro Turnstile Barrier Gate vehicle access control barriers
Quick Detail:
| Name | Automatic Tripod turnstile | Driving Motor | DC Motor |
| Power Supply | 220V±10%, 110V±10% | Housing material | Stainless Steel 304/ Iron with Powder |
| Frequency | 50/60HZ | Rotating Direction | Double Direction |
Functions and Features:
1.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2.All the system runs stable with little noise and no mechanical impact
3.It can self-check and alarm which will be make it convenient to use
4.Several ways of working molds can be chosen at your request
5.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
6.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7.Beam can be lifted and fall when electricity is cut-off
8.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
10.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12.You can set the function with or without card-reading memory according to your requirement
13.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request
Specifications:
| Model Item |
WJTS122 | WJTS110 | WJTS112 | WJTS111 |
| Manual, Semi or Full-automatic | Full-automatic | |||
| Material of Housing | 304 Stainless Steel | Iron with Powder | ||
| Thickness of Housing | 1.50mm | |||
| Dimension of Housing (L×W×H mm) |
420×380×1000 | 1235×280×1000 | 1235×280×1000 | 420×380×1050 |
| Length of Pole (out of housing) | 490mm | |||
| Net Weight | 50kg | 70kg | 70kg | 45kg |
| Max Load-bearing of Pole | 80kg | |||
| Driving Force of Pole | 3KG | |||
| Rotating Direction | Double Direction | |||
| Power Supply | 220V±10%, 110V±10% | |||
| Frequency | 50/60HZ | |||
| Working Voltage of Motor | DC12V | |||
| Rated Power | 50W | |||
| Driving Motor | DC Motor | |||
| Input Interface | DC12V electrical leveel signal, more than 100ms, or DC12V impulse signal driveing current, more 10mA |
|||
| Transit Speed | 30~40 persons/min | |||
| Working Temperature | －40°C~55°C | |||
| Working Environment | Indoor / Outdoor (Shelter) | |||
| Relative Humidity | ≤95% | |||
Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.
After-sale Service:
1 year warranty
Lifetime Service with charge accordingly
Detail Preview:

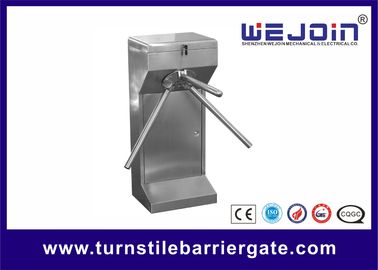

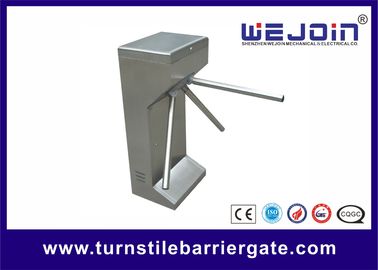

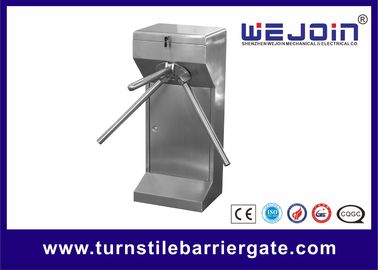

Semi-auto tripod turnstile barrier gate core
Arm
Product Assembly
