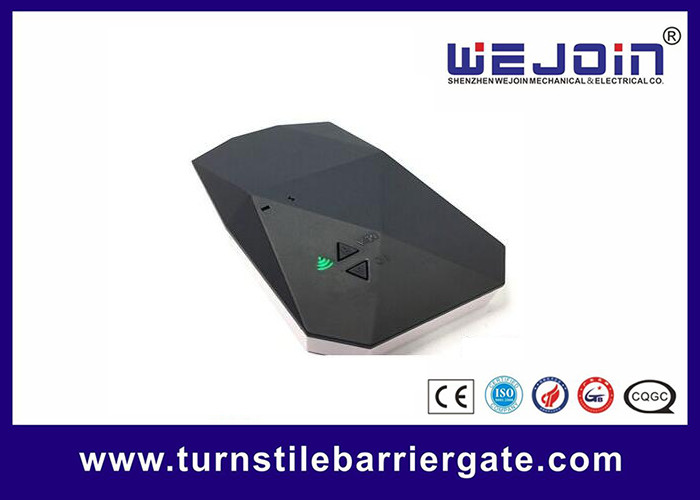

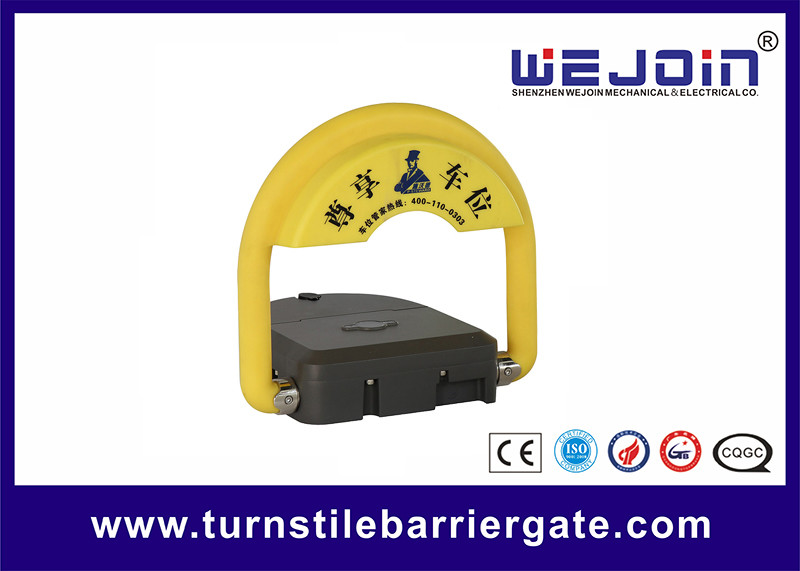

Remote Control Distance Automatic Car Parking Space Lock Device

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJCS101
Minimum Order Quantity: 1 SET
Price: 120~250USD
Packaging Details: carton
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Detail Information
Application: Parking System Standard Voltage: DC12V
Operational Current: 0.4A Protection Grade: IP68
Trade Terms: EXW,FOB,CIF Warranty: 1 Years
High Light:

parking reservation lock

,

car park locks


Product Description

Remote Control Distance Automatic Car Parking Space Lock Device



Parking Lock Description:

Remote control parking lock is a kind of device which can be automated lift, the role is to prevent someone else take your own car parking spaces, let your vehicle and park at your parking lock at any time. It is energy-saving.The battery is a best product in China.

It uses the United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge and discharge performance characteristics, theorily can be recharged 5000 times.

The power connection is anti disconnecting design in case that the user misplaces the battery causing short circuit; battery installation is easy. So it is more safe.

And the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather.

The cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.The external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontal



Parking Lock Installation

A. Installation Spot: It is suggested to install the parking lock at the very center of parking seat.

B. Installation Ground: To install the parking lock in a dry and smooth concrete ground, and no radio signal interference around.

C. Installation Steps: Drill four corresponding holes 10*5 mm in the ground and use four expansion bolts prepared in the package to fasten it. (as the following drawings show)



Parking Lock Quick Detail:

Name

Parking Lock

Application

Parking System

Standard Voltage

DC12V

Operational Current

0.4A

Protection Grade

IP68

Certificate

CE, ISO

Net Weight

8KG

Up to Down Time

4-6s





Remote Control Distance Automatic Car Parking Space Lock Device 0
