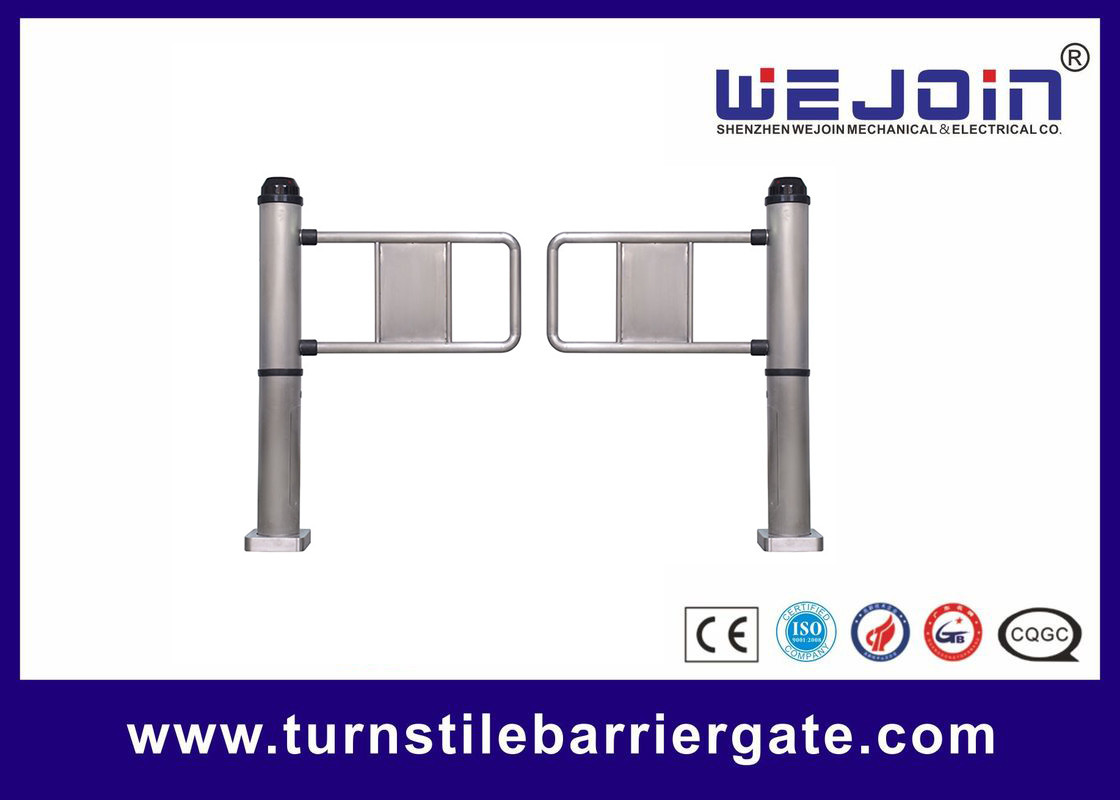

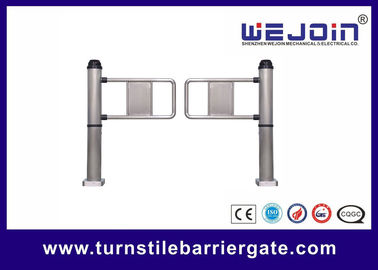

Professional Access Control Entrance Swing Barrier Gate With 500~900mm Arm Length

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WITB101
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Wooden box
Delivery Time: 5-10 days
Payment Terms: L/C, Western Union
Supply Ability: 50PCS/week
Detail Information
Housing Material: Stainless Steel 304 Arm Length: 500~900mm
Motor Material: Steel And Aluminum Alloy Motor Type: Brush DC24V
Relative Humidity: ≤95% Transit Speed: 30~40 Persons/min
High Light:

speed gate systems

,

pedestrian gate access control


Product Description

Professional Access Control Entrance Swing Barrier Gate With 500~900mm Arm Length



Quick Detail:

  • Name: Swing Barrier gate

  • Voltage: 110V/220V

  • Application: Park,shopping mall and playground

  • Feature: Adjustable access directions

  • Motor type: DC24V,brush

  • Material: Stainless steel

  • Certificate: CE,ISO



Specifications

Model

Item

Swing Barrier Mechanism

Mechanism Dimension

108*450mm

Arm Length(Optional)

500-900mm

Swing Direction

Single or Bidirectional Operation are Available

Voltage

220V+-15% or 110V+-15%

Driving Motor

24V Brush DC Motor

Input Interface

Dry Contact and Switch Signal Connection

 Motro Material

Steel and Aluminum Alloy

 Working Temperature

-25°C~50°C

Time for Opening or Closing

1 s

Transit Speed

30~40 persons/min

Working Environment

Indoor / Outdoor (Shelter)

Starting time after power on

3 s

Relative Humidity

≤90%, with no condensation



Description:

1.WEJOIN swing barriers have a compact electro-mechanical design with unique drive which ensure product durability and silent operation and self-lock mechanism can also well protect the access control security.

2.WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.anti-reversing passing function

3.WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So that customers can integrate the swing barrier with different system, like card reader, ticket system, bus station ,token system etc.

4.WEJOIN swing barriers have auto delay closing function, Alarm for unauthorized access and no access against passenger flow.

5.WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can ensure the entrance security.

6.WEJOIN swing barriers input interface available for dry contact and switch signal connection

Professional Access Control Entrance Swing Barrier Gate With 500~900mm Arm Length 0
