RFID Full Automatic Toll Gate , Aluminium Alloy Highway Rapid Car Barrier Gate

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ102
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 units/weeke
Contact Now
Detail Information
Material: Aluminium Alloy Work Speed: 1s//3s/6s
Color: Orange Direction: Left Installed/Right Installed
Voltage: 220V/110V Certificate: CE/ISO/

Product Description

Automated electronic Barrier Gate Arm With Die casting Aluminum Alloy Motor



The highway high-speed barrier gate is a safety fast operation barrier to stop unauthorized vehicle from accessing. They are widely used at highway tollgate, airport, and other parking lot. Users can control the highway automatic boom barrier gate with remote controller or manual button, which is very convenient.



Intelligence parking Barrier gate with special motor main controller with multiple running mode optional . Use of advanced anti-aging waterproof ,durable ,do not fade. yellow ,green ,blue can be optional . reasonable structure design , used for management lane, divide into straight pole , fold pole,two fence, three fence .



Applications:



Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.



Specifications

Model WJDZ102
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 8m
Speed 1S,3s,6s
Net weight 60kgs




Quick Detail:

  1. Name: Vehicle access
  2. Application: Toll system
  3. Speed:1s,3s,6s
  4. Feature: Auto-closing
  5. Rated Power:80W
  6. Net Weight:60KG



Model Selection and Differences



Model Boom Shape Max Boom Length Speed

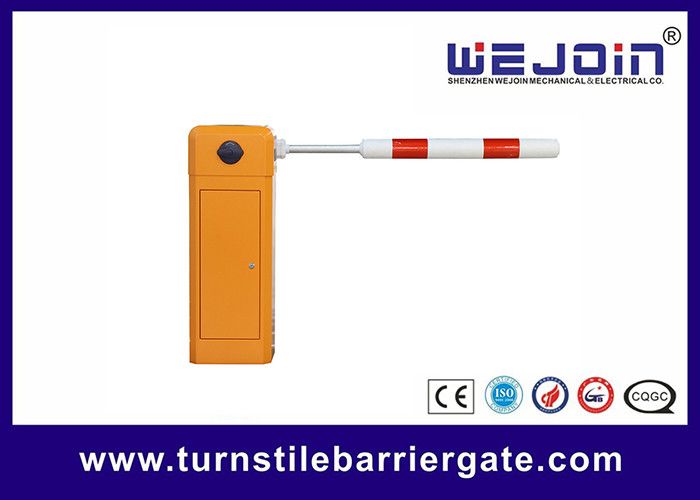

WJDZ10216 Straight boom 6m 6 seconds
WJDZ10213 Straight boom 4.5m 3 seconds
WJDZ10211 Straight boom 3m 1 second

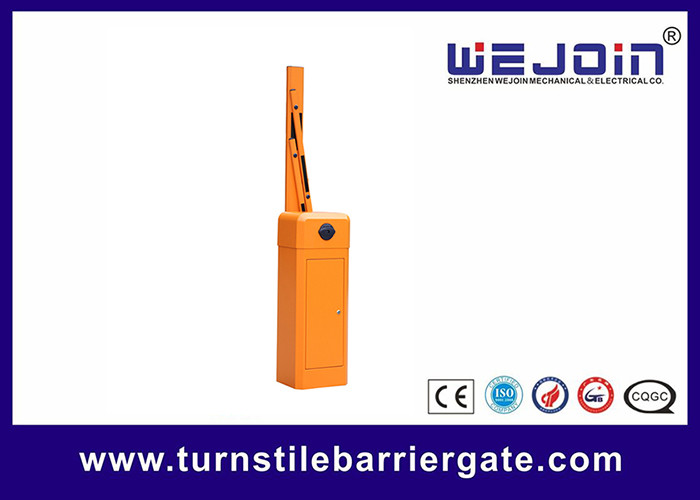

WJDZ10226 90 degree, Articulated boom 5m 6 seconds
WJDZ10223 90 degree, Articulated boom 3m 3 seconds
WJDZ10236 180 degree, Articulated boom 5m 6 seconds
WJDZ10233 180 degree, Articulated boom 3m 3 seconds

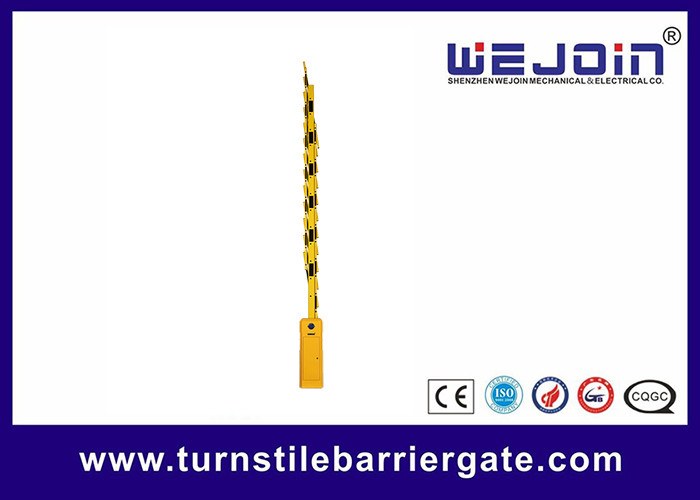

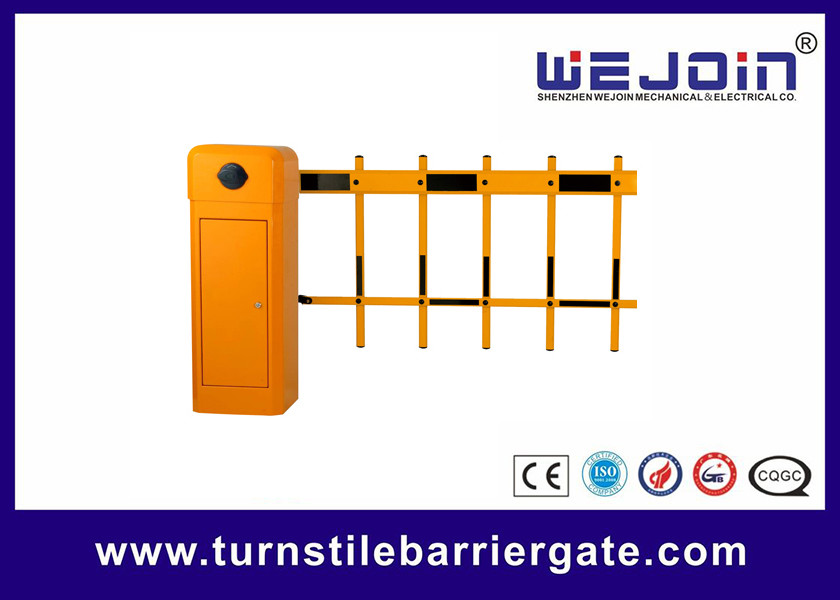

WJDZ10246 Two-level, fence boom 4.5m 6 seconds
WJDZ10256 Three level, fence boom 4m 6 seconds





Customized boom length optional.

Straight boom arm, max 6meters.

Fence style boom arm, max 5meters.

Folding style boom arm, max 4meters.

High speed 1.6S/3S barrier boom arm max 2-4meters.







Communication with customers



Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters







Functions & Features:

1. Anti-collision, with foam covering the boom.(Optional)

2. Anti-smashing, with pressure wave switch to avoid strong hitting and damage.(Optional)

3. Quick movement configurable opening times: 0.6S, 1.5S, 3S, 6S are optional

4. Traffic light LED screen. Green for open. Red for close. Or Warning RED Light.

5.Self-learning function and encoder controlled movement
6.Integrated obstacle detection system for extra safety
7.Customized boom length. Max 2m.
8.Easy to integrate with other parking access control system

9.Two operation modes: Remote control, manual button

10.Loop detector can be equipped.

11.Simply structure, runs stable and reliable.

12. Good quality with competitive price.



Why to choose WEJOIN Traffic Parking Boom Barrier Gate?



1. Automatic Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on

2.Automatic Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. Automatic Parking Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.



We have sold barrier gate to more than 50 countries ,like Brazil,Chile,Pure, Colombia,

United States,Australia,Canada, New Zealand, the Netherlands, Switzerland, Sweden,German, Portugal, Philippines,Vietnam, Singapore, Malasia,Saudi Arabia, Kenya,Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on.



Description:





RFID Full Automatic Toll Gate , Aluminium Alloy Highway Rapid Car Barrier Gate
