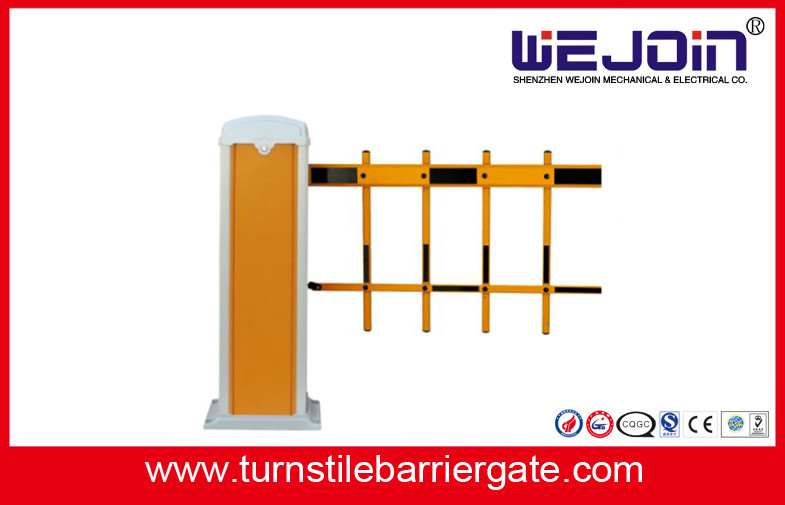

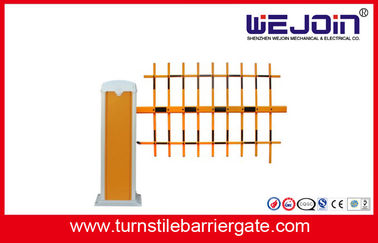

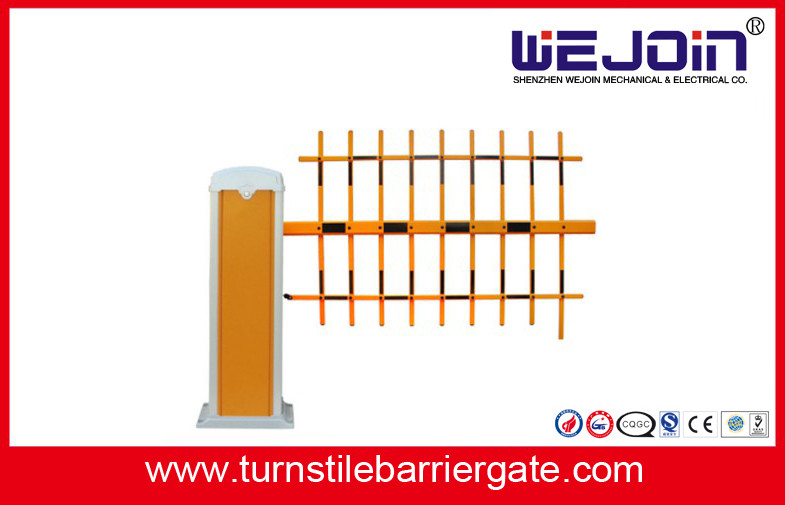

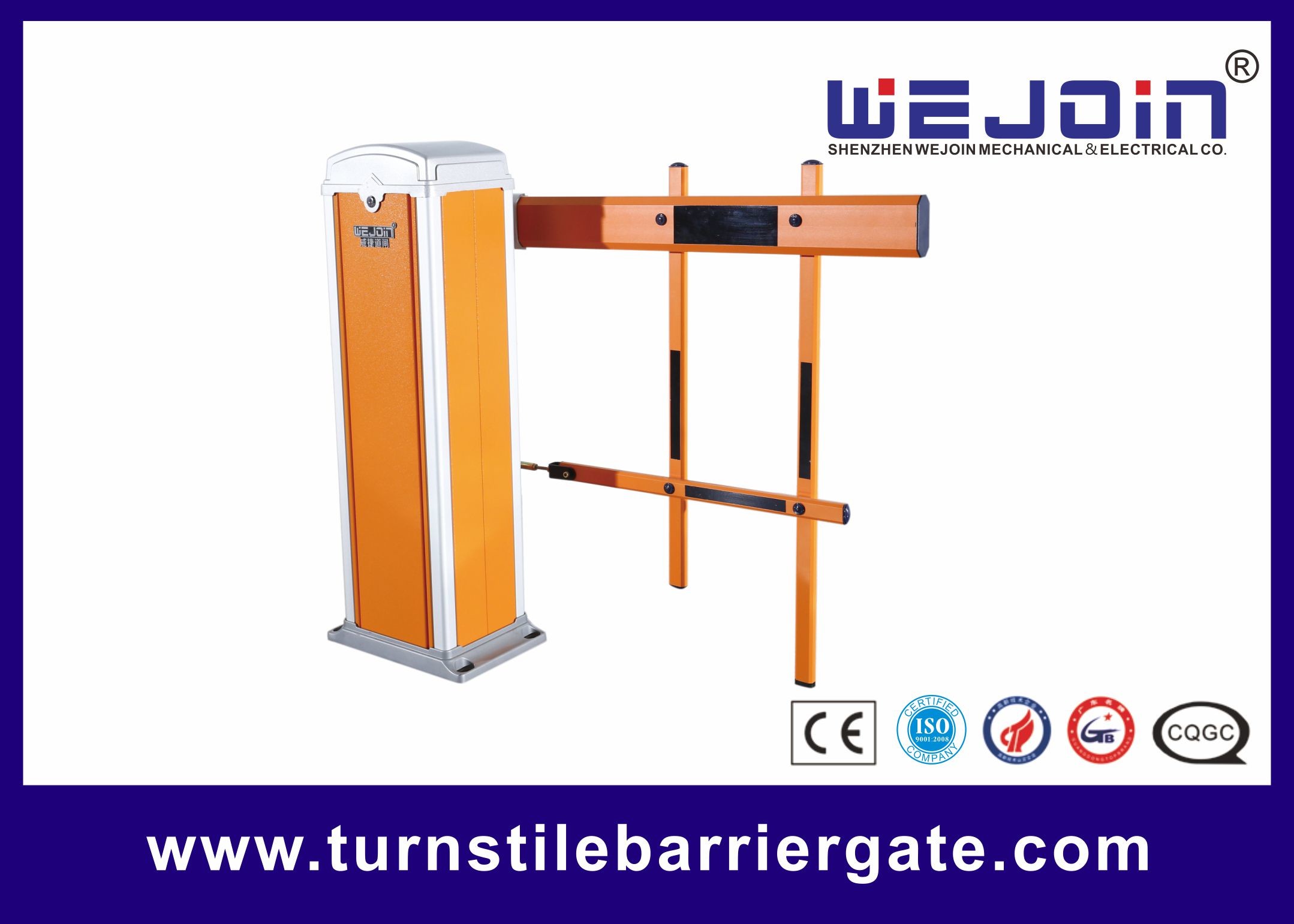

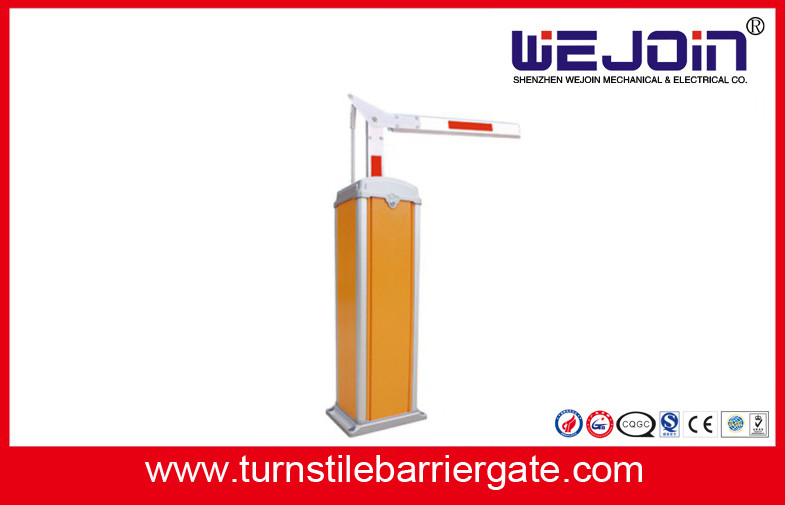

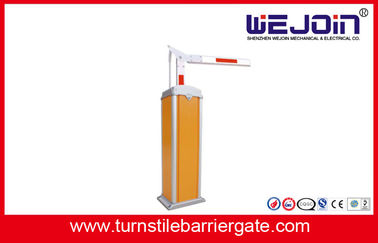

Durable Entrance Barrier Systems , Automatic Security Gates For Parking Management

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDA601
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton /wooden
Delivery Time: 3-5 working days
Payment Terms: T/T
Supply Ability: 6000 pcs/month
Detail Information
Motor Material: Aluminum Alloy Operating Time: 3s, 6s
Boom Type: Straight Folding Fencing Housing Material: Stainless Steel
High Light:

automatic barrier gate system

,

electric barrier gate


Product Description





Powerful functions with fashionable design! your best choice!

  • Safety photoelectricity limit switch.



1. Advance manual release

2. Full molding design for all the main parts, cast by aluminum alloy, realizing precisely match for each components, realzing non rusting and corrosion-resistant in atrocious weather.

3. Boom can rise and fall on left/right side by setting on the same machine

4. no need to change the balance spring when the boom shorter than 6 meters

5. Adopt the third generation WEJOIN machine core

6. Support the infrared photocell for anti-bumping(optional)

7. Support for the external and internal vehicle loop detector

8. Auto warming-up, suitable for cold environment

9. Auto-closing

10. RS485 communicational module to realize the intelligent management for the passing

11. Thermal radiates rapidly, no thermal protection

12. Die-casting aluminum alloy machine core and advanced doubled-stage driving motor, effectively solve the problem of mechanism block up.

13. Special art and craft makes out the most modernize and fashionable housing

14. Safety photoelectricity limit switch.





Model

Item

601-13

601-16

601-23

601-26

601-33

601-36

601-46

601-56

Running time

3sec

6sec

3sec

6sec

3sec

6sec

6sec

6sec

Boom type

straight

90 degree folding

180degree folding

2fencing

3fencing

Boom length

4m

4.5m

3m

4m

3m

4m

3.5m

3m

Boom dimension

45*100mm

Boom weigth

4.5kg

6 kg

6.5 kg

8 kg

9 kg

11 kg

7 kg

7.5 kg

Voltage

AC220V±10%, AC110± 10%

frequency

50/60hz

Motor voltage

220V

power

120W

Working temperature

-35degree~+75degree

Protection degree

IP44





Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.





Our Service

Pyment Term Leading Time Minimum Order Supply Ability Package
T/T; West Union 5-7 working days 1 Unit 10,000 Unit/ Month Paper Carton or Wooden Box
