Heavy Duty Automatic Boom Barrier Gate Auto Closing For Vehicle Access Control

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJDZ101
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 1-20 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 5000 units/weeke
Contact Now
Product Description

Traffic Parking Boom Barrier Gate WJDZ101 With Mannual Clutch





Quick Detail:



Name Boom Barrier Gate Application Parking Lot
Speed 1s,3s,6s Feature Compression spring
Rated Power 80W Certificate CE, ISO,
Net Weight 60KG Voltage AC220V, AC110V



Description:

Model Selection and Differences

Model Boom Shape Max Boom Length Speed
WJDZ10216 Straight boom 6m 6 seconds
WJDZ10213 Straight boom 4.5m 3 seconds
WJDZ10211 Straight boom 3m 1 second

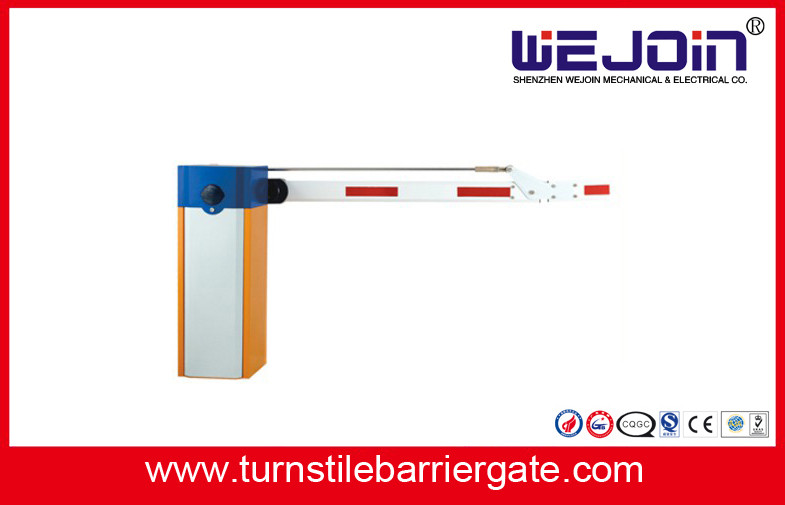

WJDZ10226 90 degree, Articulated boom 5m 6 seconds
WJDZ10223 90 degree, Articulated boom 3m 3 seconds
WJDZ10236 180 degree, Articulated boom 5m 6 seconds
WJDZ10233 180 degree, Articulated boom 3m 3 seconds
WJDZ10246 Two-level, fence boom 4.5m 6 seconds
WJDZ10256 Three level, fence boom 4m 6 seconds

Functions & Features:

1. RS485 Communication Module is compatible

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Reversing on obstacle

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. Manual release device to operate the barrier when power failure

Applications:

Traffic Parking Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirement . It can be used for parking system, factory gate,bus station and so on.



Specifications

Model WJDZ101
Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 8m
Speed 1S,3s,6s
Net weight 60kgs



Why to choose WEJOIN Traffic Parking Boom Barrier Gate?

1. Traffic Parking Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s,6s according to customers requirements. It can be used for vehicle parking system, factory gate,bus station and so on

2.Traffic Parking Boom Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. Traffic Parking Boom Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate reversing on obstacle. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.



Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters
