304 Stainless Steel Flap Barrier Gate Turnstile Stick Access Control System

Basic Information
Place of Origin: SHENZHEN, CHINA
Brand Name: WEJOIN
Certification: CE;ISO
Model Number: WJTY202
Minimum Order Quantity: 1+pair
Price: USD+1800-1880+pair
Packaging Details: wooden
Delivery Time: 5 working days
Payment Terms: T/T
Supply Ability: 10000 sets per month
Contact Now
Detail Information
Motor Type: DC 12V Opening Time: 0.5s
Protection Degree: IP32 Housing Material: 304 Stainless Steel
Max Lane Width: 900mm

Product Description

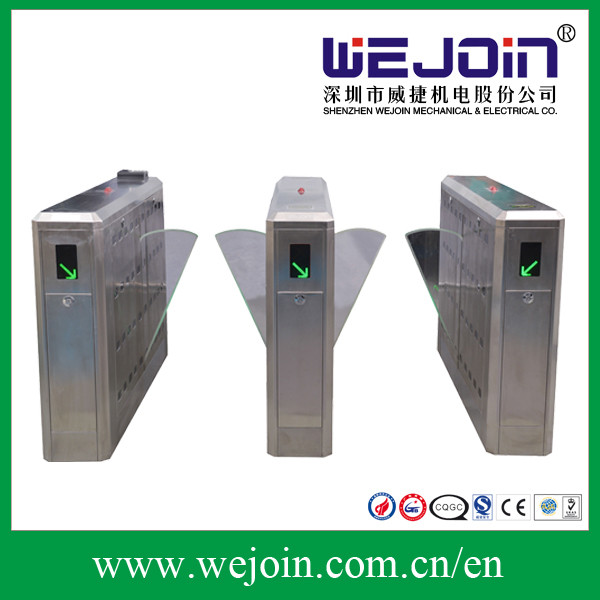

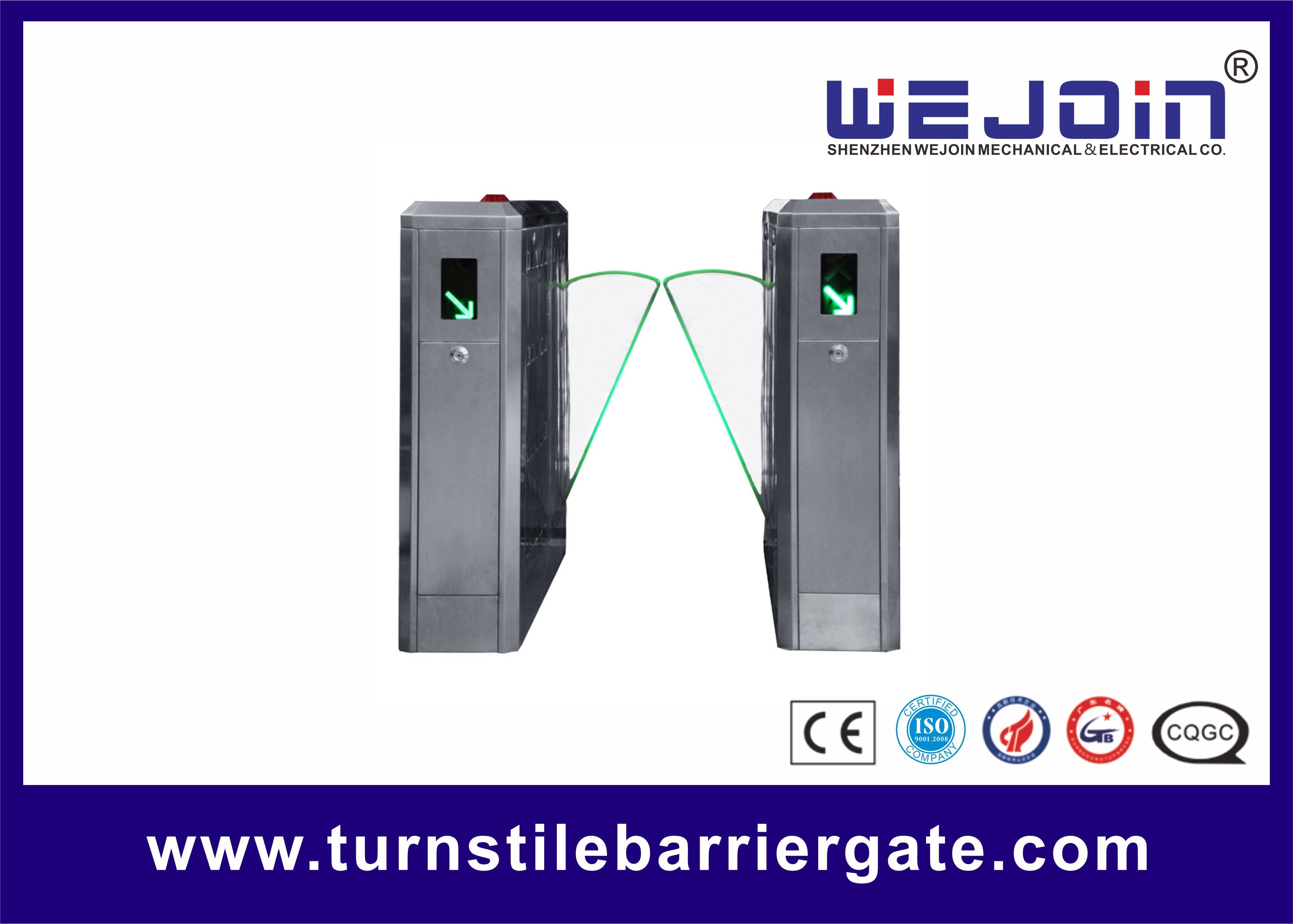

Flap Barrier/Speed Gate

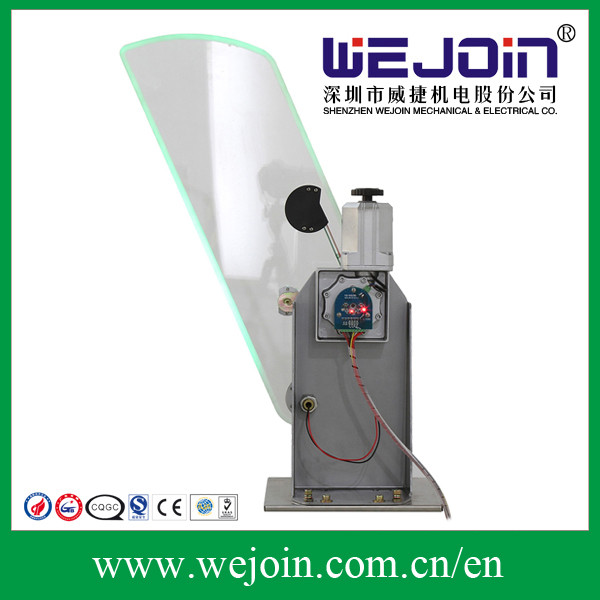

1) A compact clcctro-mcchanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-dclay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access against passenger flow
7) Anti-reverse passing
8) Auto-closing when power on
9) Auto-open and free access when power off
10) Adjustable access directions
11) Emergency interface available
12) Traffic light indicating passenger access



Product Introduction

Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.



Model WJTY201
Stretching-out flap length 275mm
The max lane width 600mm
Cabinet material Cold rolled steel & aluminum alloy
Material of Flap Door Organic glass
Housing of thickness 1.5mm
Normal Life Span 3 millions times
Communication Interface Standard RS485(distance less than 1200 meters)
Transit speed 30-40 persons/min
Time for opening or closing 0.5s
Starting time after power on 3s
Input interface Dry contact signal or +12Vor pulse signal with width more than100ms DC12V
Transit speed 25~32 persons/min
Working temperature -10°C~50°C
Working environment Indoor / Outdoor (Shelter)
Relative humidity

≤95%, no condensation



Company Information


Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.


Our Service

Pyment Term Leading Time Minimum Order Supply Ability Package
T/T; West Union 5-7 working days 1 Unit 10,000 Unit/ Month Paper Carton or Wooden Box
