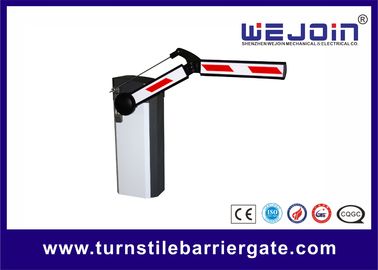

Electric Boom Parking Lot Security Gates , Heavy Duty Parking Gate System 220/110V

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ820
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment being received
Payment Terms: T/T
Supply Ability: 10000 sets/month
Detail Information
Force: Heavy Duty Motor: Die Casting Aluminum Alloy
Speed: 1.5s,3s,6s Housing: Iron With Powder
Volts: 220V /110V Color: Black And White
High Light:

parking lot arm gate

,

auto barrier gate system


Product Description

Aluminum Alloy Mechanism Core Parking Barrier Gate with Motor Cooling Fan





Model WJDZ820 Barrier Gate with rubber on boom
Quick Detail



Name

Bi-directional Barrier Gate

Application

Parking System

Speed

1.5/3/6 second

Feature

Manual release

Rated Power

80W

Certificate

CE, ISO, SGS

Net Weight

50KG

Voltage

AC220V, AC110V


Description

Model Selection and Differences
Electric Boom Parking Lot Security Gates , Heavy Duty Parking Gate System 220/110V 0

Functions & Features



1. Handwheel device to operate the barrier when power failure.

2. Machine core with compression spring, effectively avoids the accidents caused by spring  breaking.

3. Motor cooling fan to avoid the over-heating possibility

4. Auto-reverse when the boom meets obstruction

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well-integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Offering dry contact signal for car parking system (COM, NC, NO)

10. Auto-delay when closing (adjustable)

11. Remote control frequency: 418MHz

12. Boom with protective rubber band

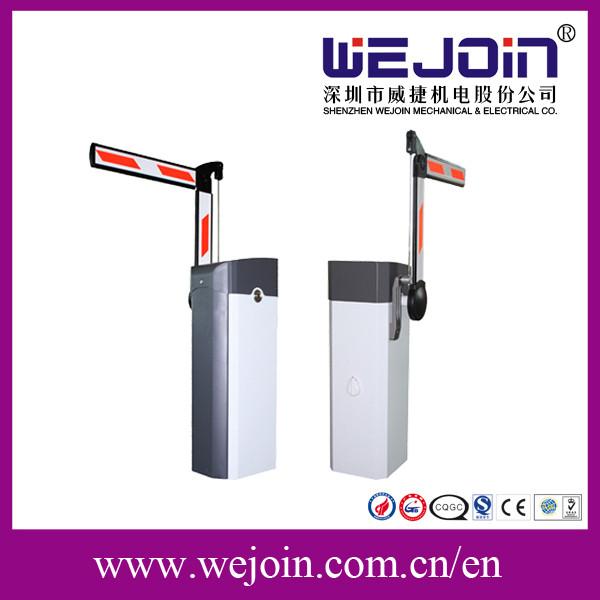

Optional Barrier Boom
Electric Boom Parking Lot Security Gates , Heavy Duty Parking Gate System 220/110V 1
Applications:



  • Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used indoor and outdoor.


Why to choose WEJOIN Barrier Gate with rubber on boom?



1. Barrier Gate with rubber on boom adopts the latest mold casting design, without clutch device. Its machine core adopts connecting rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.

2. Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.


Communication with customers  FQA

Q: What's WEJOIN monthly production capacity for barrier gate?
A: 10000 units.

Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
