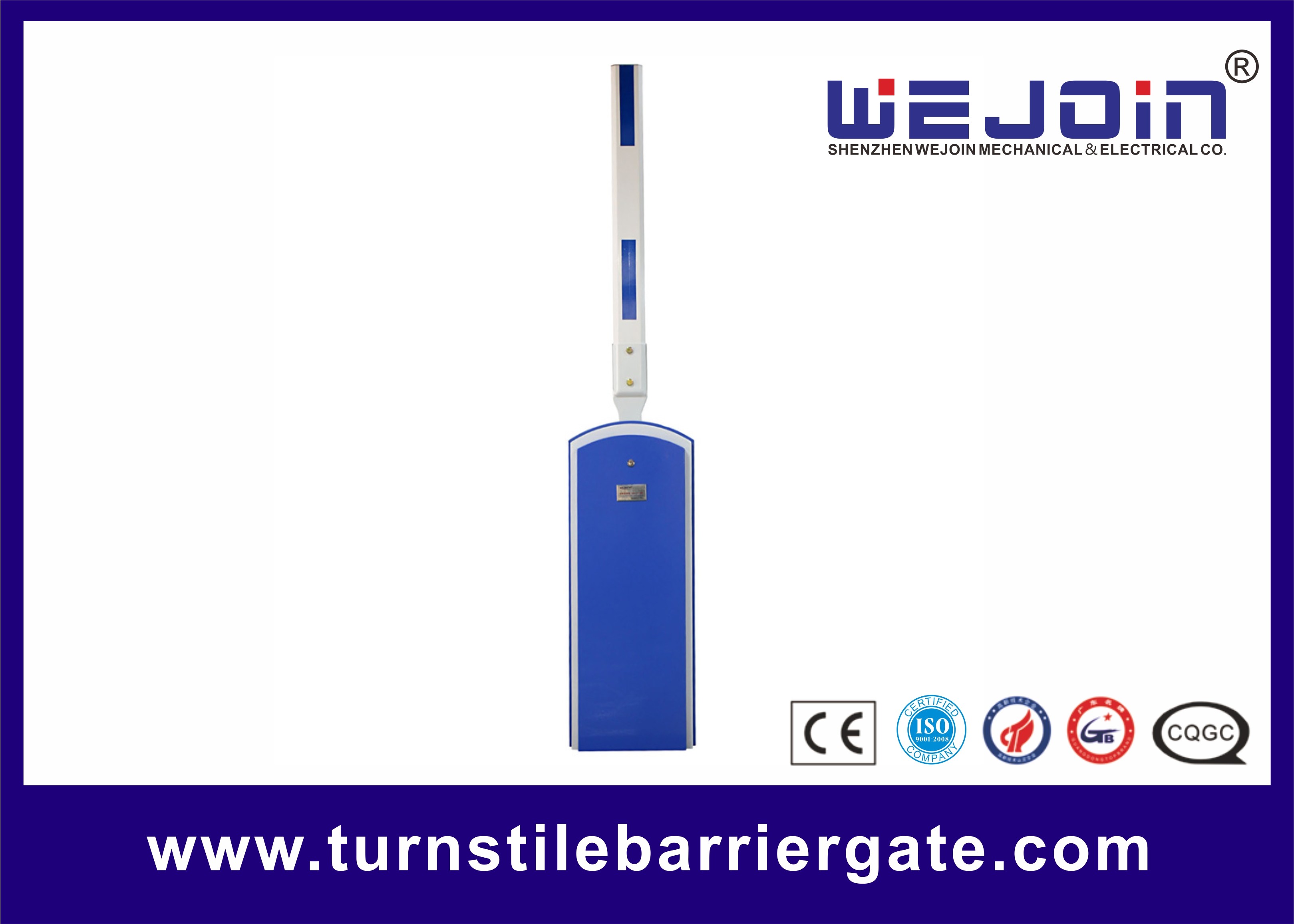

RS485 COM Interface Security Boom Gate Straight / Fence / Folding Boom Barriers

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ301
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton,wooden box
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Units / Month
Contact Now
Detail Information
Boom Type: Straight Arm; Folding Arm; Fence Arm COM Interface: RS485
Motor Material: Die-casting Aluminum Alloy Color: Optional
Max Boom Length: 8 Metes Voltage: 110v/220v

Product Description



Blue Bi - directional Car Park Boom Barrier Gate , Entrance Gate Security Systems





Quick Detail:





  1. *Name: Bi-directional Barrier Gate
  2. *Application: Highway toll
  3. *Speed;3/6 second
  4. *Feature; Manual release
  5. *Rated Power; 80W
  6. *Certificate; CE, ISO,
  7. *Net Weight; 60KG
  8. *Voltage; AC220V, AC110V





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ30116 Straight boom 6m 6 seconds
WJDZ30113 Straight boom 4.5m 3 seconds
WJDZ30126 90 degree, Articulated boom 5m 6 seconds
WJDZ30123 90 degree, Articulated boom 3m 3 seconds
WJDZ30136 180 degree, Articulated boom 5m 6 seconds
WJDZ30133 180 degree, Articulated boom 3m 3 seconds











Applications:





Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can work with parking system very well, and can be used in door and outdoor.





Functions & Features:





1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible



Specifications





Model WJDZ301
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Speed 3S, 6S
Rated Motor 80w
Remote control distance ≥30m
Net weight 60kgs
Relative humidity ≤90%
Max boom length 6 meters





Why to choose WEJOIN Bi-directional Barrier Gate?





  1. 1. Bi-directional Barrier Gate solves the problem of left-installed and right-installed. Due to the same appearance of the two sides of the housing, it can be installed on both side of the gate.
  2. 2. Bi-directional Barrier Gate uses the first generation motor. It is stable and has long service life performance, running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor
  3. 3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.
  4. 4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: How it to solve the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.



Q: Why the boom could not rise up or falldown to the end?

A: 1)When change a long boom to a short one,please readjust it

    2)The sensor dose not plug well,please check it

    3)The"Speed adjust switch" is wrong adjust,please readjust it
