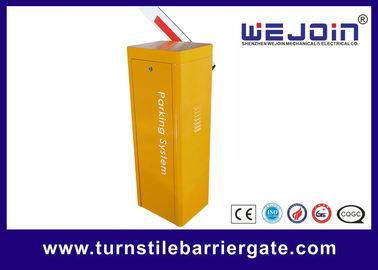

Arm Drop Vehicle Barrier Gates Traffic Light Interface Double Safety Limit Switches

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: DZJ
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor Material: Aluminum Alloy Operating Time: 3s, 6s
Boom Type: Straight Folding Fencing Housing Material: 304 Stainless Steel
Color: Yellow Application: Parking Lot
High Light:

Double Safety Vehicle Barrier Gates

,

Limit Switches Vehicle Barrier Gates

,

AC220V Drop Arm Barrier Gate


Product Description

Arm Drop Vehicle Barrier Gates Traffic Light Interface Double Safety Limit Switches



Parking Barrier Gate Quick Detail:



1. Wheel manual release.

In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.

when power on, the motor will work normally.

2. Machine core with strong and double spring, make the machine core works more steadily.

3. Die-casting aluminum alloy motor, precise and good at thermal radiation.

4. Crank and rod structure makes the boom run placidly

5. Double safety limit switches

6. Reversing on obstacle

7. Auto-closing

8. Support the infrared photocell for antibumping function

9. Support external and internal vehicle loop detector

10. Traffic light interface

11. Wire control / remote control(418MHZ)

12. Digital limit, more precise

13. Open, close control interface for parking system

14. Provide limit state signal to the parking system



Parking Barrier Gate Features:

Voltage

AC220V±10%,AC110V±10%

Frequency

50/60HZ

Rated power

200w

Relative humidity

≤90%

Working temperature

-35℃~+60℃

Housing dimension(W*D*H)

335*285*925mm

Enclosure rating

IP54

MTBF

2500000 times

Weight

40 KG



Technical data:

Model

speed

Arm Type

Max Arm Length

Arm Dimension

801J-13

3s

straight

4.5m

45*100mm

801J-16

6s

6m

801J-23

3s

90º folding

3m

801J-26

6s

5m

801J-33

3s

180º folding

3m

801J-36

6s

5m

801J-46

6s

2 fencing

4m

801J-56

6s

3 fencing

3.5m



Parking Barrier Gate Applications:

  • station

  • highway tollgate

  • high-grade residential area

  • commercial parking lots

  • enterprises and institutions



WEJOIN's Main Advantages

  1. Global leading company for barrier gate

  2. Master of core technology and innovation

  3. Intelligent quality manufacturing process and automatic flexible production

  4. Global advanced manufacturing process and testing equipment

  5. Servo, variable frequency, double speed,bi-direction motor and other leading technique

  6. High speed and low speed coexist in motor

  7. Integral service network covering first-tier and second-tier cities, and more under construction service network
