| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | DZJ |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 sets/month |
| Motor Material: | Aluminum Alloy | Operating Time: | 3s, 6s |
|---|---|---|---|
| Boom Type: | Straight Folding Fencing | Housing Material: | 304 Stainless Steel |
| Color: | Yellow | Application: | Parking Lot |
| High Light: | automatic car park barriers,automatic parking barrier |
||

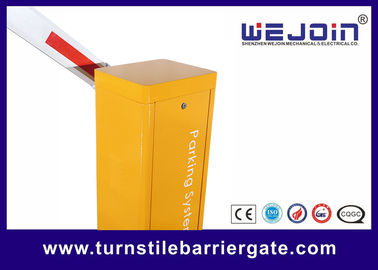

Entrance Automated Electronic Barrier Gates Vehicle Boom 304 Stainless Steel Housing
Electronic Barrier Gates Quick Detail:
1.Wheel manual release.
In case of power off, rotate the wheel manual release on the bottom of the motor to raise the boom manually.
when power on, the motor will work normally.
2.Machine core with strong and double spring, make the machine core works more steadily.
3.Die-casting aluminum alloy motor, precise and good at thermal radiation.
4.Crank and rod structure makes the boom run placidly
5.Reversing on the obstacle
6.Auto-closing
7.Support the infrared photocell for antibumping function(optional)
8.Support external and internal vehicle loop detector(optional)
9.Traffic light interface(ac 22v,can support lamp with 40w)
10.Wire control / remote control(418MHZ)
11.Digital limit, more precise
12.Open, close control interface for parking system
13.Provide limit state signal to the parking system
Electronic Barrier Gates Features:
| Voltage | AC220V±10%,AC110V±10% |
| Frequency | 50/60HZ |
| Rated power | 200w |
| Relative humidity | ≤90% |
| Working temperature | -35℃~+60℃ |
| Housing dimension(W*D*H) | 335*285*925mm |
| Enclosure rating | IP54 |
| MTBF | 2500000 times |
| Weight | 40 KG |
Technical data:
| Model | speed | Arm Type | Max Arm Length | Arm Dimension |
| 801J-13 | 3s | straight | 4.5m | 45*100mm |
| 801J-16 | 6s | 6m | ||
| 801J-23 | 3s | 90º folding | 3m | |
| 801J-26 | 6s | 5m | ||
| 801J-33 | 3s | 180º folding | 3m | |
| 801J-36 | 6s | 5m | ||
| 801J-46 | 6s | 2 fencing | 4m | |
| 801J-56 | 6s | 3 fencing | 3.5m |
