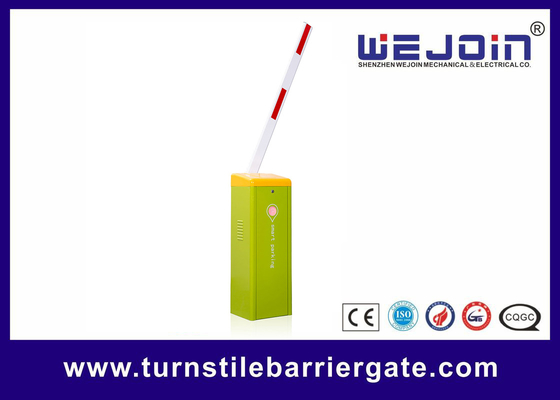

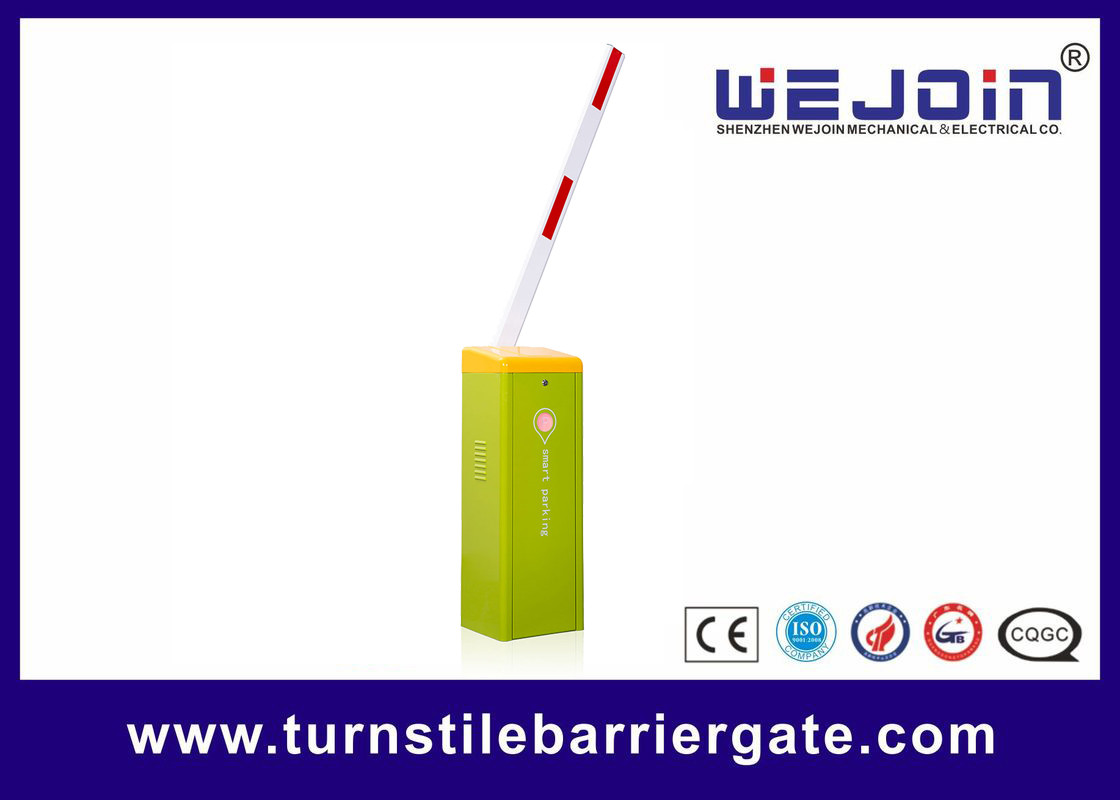

AC 110V Straight Arm Vehicle Access Control Barrier Gate With Loop Detector

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E10
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Housing Color: Yellow-green Boom Type: Straight Boom,fence Boom
Optional Accessories: Loop Detector,Infrared Photocell,etc Voltage: AC 110V Or 220V
Boom Length: Max 6M (customized) Warranty: 2 Year

Product Description

Straight arm vehicle access control barrier gate



Vehicle Barrier Gate Quick Detail:

The technology is applied to drive motor of electric vehicle and spindle motor of CNC lathe.

# Strong moment, high precision control, low temperature rise

# Standard traffic lights

# 3-5S speed adjustable

# yellow-green, dark grey + light grey and yellow-white color optional



Vehicle Barrier Gate Functions & Features
1 . No clutch design : open the barrier gate by manual hand wheel when power of.
2 . No limit switch design : the motor can detect the boom position automatically.
3 . Bi-direction boom holder design : left- installation and right-installation can be exchanged easily and quickly .
4 . Self-detect after power-on , open / close speed is adjustable .
5 . With auto-reversing on obstruction function .
6 . Infrared photocell interface and Loop detector interface is available .
7 . Built-in delay auto-closing function ,coordinated with counting function .
8 . With auto-aging test function .
9 . NO / NC wire control signal input are optional.

Vehicle Barrier Gate Technical Data
Model WJDZE (speed 3~5s adjustable)
Running Speed 3S 4S 5S 5S 5S 5S 5S
Boom Type Straight Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence
Max Boom Length 4.5M 5M 6M 5M 4M 4.5M 4M
Input Voltage AC220V±10%, AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C ~ +85°C
MTBF 3 million times
Traffic Flow Appication 24 hours uninterrupted operation
Max Motor Power 120W
Max Motor Speed 24r/min
Max Torque 240N.m


Vehicle Barrier Gate Applications:

  • station
  • highway toll gate
  • high-grade residential area
  • commercial parking lots
  • enterprises and institutions
  • commercial Plaza



WEJOIN's Main Advantages

  1. Global leading company for barrier gate
  2. Master of core technology and innovation
  3. Intelligent quality manufacturing process and automatic flexible production
  4. Global advanced manufacturing process and testing equipment
  5. Servo,variable frequency,double speed,bi-direction motor and other leading technique
  6. High speed and low speed coexist in motor
  7. Intergral service network covering fist-tier and second-tier cities,and more under construction service network



FAQ

Q1: What is your main products?

A: Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.

Q2: Are you manufacturer? Do you provide ODM / OEM service?

A: Yes, we are manufacturer. WEJOIN provide professional cudtomized serice for global clients.

Q3: I would like to ask if this is with RFID card reader and controller?

A: Yes, there is a controller, our barrier gate can connect with RFID card reader.

Q4: What boom types of your barrier gate?

A: We have 1s with 3m barrier arm, 3s with 4.5m barrier arm, 6s with 6m barrier arm ,etc

Q5: What is your MOQ?

A: Any quantity is acceptable.

Q6: How much is 1 set ? Can provide product details? How fast and how much it would cost to ship this item?

A: Please Click here and send your inquiry, then we will send you the price and details in time.

Q7: How about payment option?

A: 30% by T/T, 70% by T/T before delivery.

Q8: Do you have a model that can be used outdoors without further shelter?

A: Yes, It can be used outdoor without shelter. But product life will be longer with shelter.

Q9: How much warranty time do you have?

A: Whithin one years, if any problems, we will offer the accessories.

Q10: Do you use wechat? Can we plaese talk on wechat? or whatsapp?

A: Yes,my wechat ID FZ15002051250, my phone number/whatsapp is +86 15002051250, my skype ID wejoin09.
