| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE,ISO |
| Model Number: | TY502SV |
| Minimum Order Quantity: | 1pcs |
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50PCS/week |
| Type: | Single Core ; Double Core | Working Environment: | Indoor / Outdoor ( Shelter) |
|---|---|---|---|
| Warranty: | 12 Months | Direction: | One Or Bi-direction(optional) |
| Certification: | ISO,CE,RoHS | Machine Core: | Servo Motor |
| High Light: | Fingerprint flap barrier gate,automatic flap barrier gate,access control flap barrier gate |
||

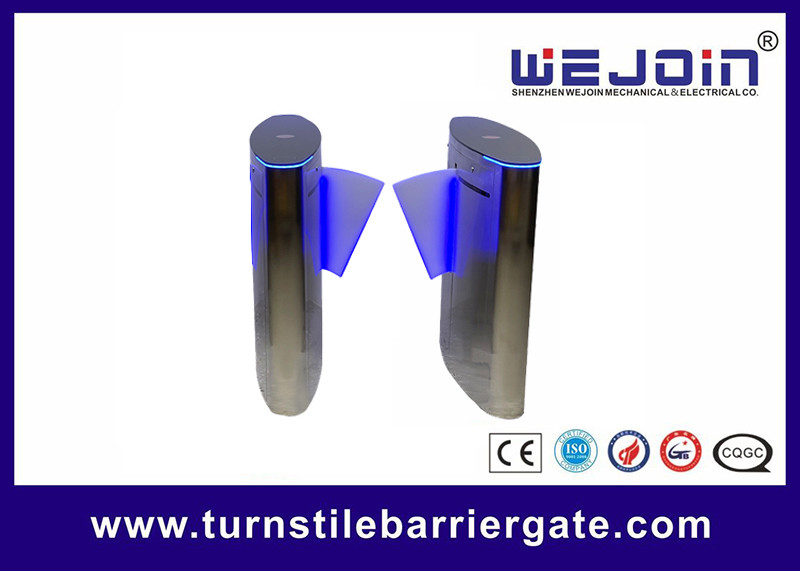

Fingerprint access control system automatic flap barrier gate
Product Introduction
Intelligent flap barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations and other high level venues and then achieve a more intelligent management and control of pedestrian access. The most typical intelligent application is high speed railway station, subway station, BRT station, scenic ticket system and so on.
Flap Barrier Gate Quick Detail:
Material: 304 stainless steel
working temperature :-10°C~50°C
Function: automatic
Direction: bi-direction
Power supply :AC220V±15%, AC110V±15%
Motor voltage :DC12V (brush motor)
Flap Barrier Gate Specifications
|
Model |
WJTY502SV |
|
Cabinet dimension |
1200mm(L)×300mm(W)×1000mm(H) |
|
Stretching-out flap length |
280mm |
|
The max lane width |
660mm |
|
Cabinet material |
304 stainless steel |
|
Power supply |
AC220V±15%, AC110V±15% |
|
Motor voltage |
DC24V (servo motor) |
|
Access device input voltage |
dry contact or 12V electrical level signal or ＞100ms 12V impulse signal or driving current ＞10mA |
|
Max flow rate |
30~40 people per minute |
|
Flap opening/closing time |
1 sec |
|
reset time when power on |
3 sec |
|
protection grade |
IP32 |
|
working environment |
outdoors (with shelter) and indoors. |
|
working temperature |
-10°C~50°C |
