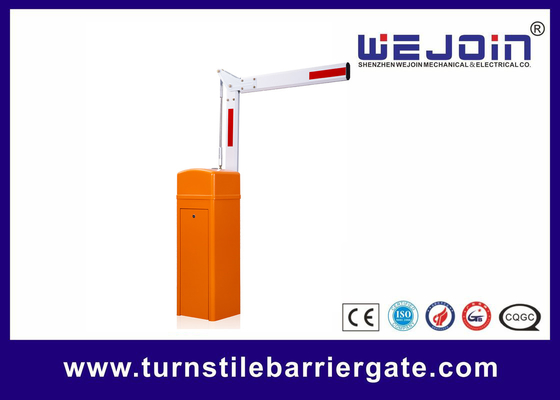

Intelligent Automatic Car Parking System , Parking Boom Barrier Accurate Encoder Detection

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ04SV
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 1.5s,3s,5s
Power: 150W Voltage: AC220V; AC110V
Application: Parking Lot Color: Orange Optional

Product Description

Intelligent Automatic Car Parking System Entrance Barrier Gate



Brief Introduction
This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime



Parking Barrier Gate Functions & Features

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
3). Double tension spring crank transmission design, for more stable and reliable structure.
4). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
5). More sensitive and reacting faster when reversing on obstacles.
6). With counting, delay auto-closing, and auto-aging test function.
7). NO/NC wire control signal input are optional.



Parking Barrier Gate Quick Detail

WEJOIN Mid-Grade Servo Barrier Gate WJDZ04SV

DC Brushless Servo Motor

Higher Stability, Longer Service Life and Easier Operation



Parking Barrier Gate Application

Suitable for indoor as well as outdoor parking area
Parking lots, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.



Parking Barrier Gate Technical Data

Model

WJDZ04SV1 (speed 3~5s adjustable)

Running Speed

3S

4S

5S

5S

5S

5S

Boom Type

Straight

Straight

Straight

90° Folding

2 Fence

3 Fence

Max Boom Length

4.5M

5M

6M

5M

4.5M

4M

Model

WJDZ04SV2 (speed 1.5~5s adjustable)

Running Speed

1.5s

2/3/4/5s

5s

5s

5s

Boom Type

Straight

Straight

90° Folding

2 Fence

3 Fence

Max Boom Length

3.5m

4.5m-6m

4m

4.5m

4m

Housing Dimension

362*325*1030mm

Input Voltage

AC220V±10%,AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C~+85°C

MTBF

5000000 times

Traffic Flow Application

3000 times/24hours

Max Motor Power

150W

Max Motor Speed

24r/min

Max Torque

240N.m



Parking Barrier Gate Packing List

Name

Specification

Quantity

Unit

Application

Screw, Nuts, Flat Pad

M12*70

2

sets

Fixing the boom

Boom Fixing Bar



1

pcs

Fixing the boom

Boom Holder Plastic Cover



1

sets

Optional

Cabinet Fixing Bar



2

pcs

Fixing the boom

Expansion Screws

M16*150

4

sets

Fixing the boom

Support Post



1

pcs

Optional

Radio Emitter



1

pcs

Optional

Keys



2

pcs

For cabinet door

Remote Controller



2

pcs



Manual



1

pcs
