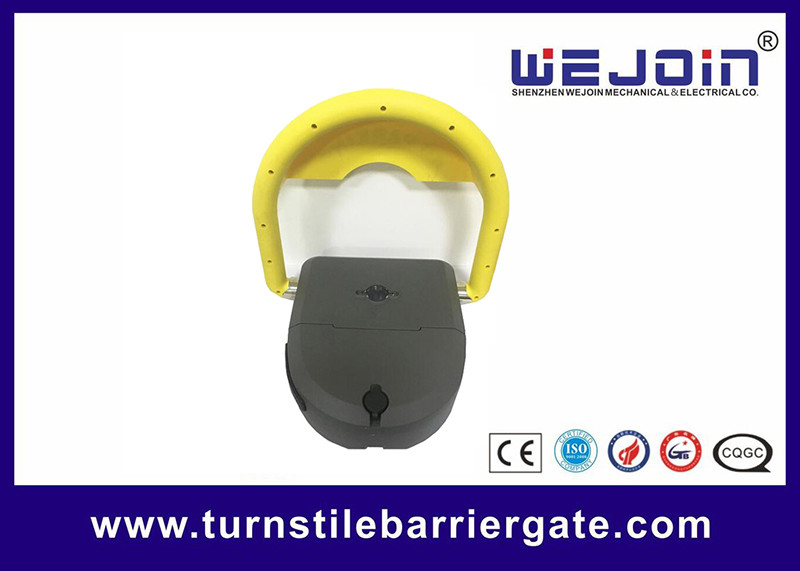

IP68 Water Resistant Parking Space Lock 15m Remote Control Distance Energy Saving

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJCS101
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: Western Union, T/T
Supply Ability: 10000 set / month
Contact Now
Detail Information
Current: 0.4A Running Time: 4~6s
Dimension: 357*370*82.5mm Warranty: 12 Months
Product Name: Parking Lock Material: Die-casted Zinc Alloy

Product Description

IP68 waterproof automatic remote control parking lock intelligent



Product Introduction
Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class varnish with features of wearable, glossy and colorfast. The product has attributes like beautiful and novel structure designing, diversified functions, user-friendly operation, safe and durable features. It is well applied for car parking management in areas like high-end residences, shopping malls, hotels,airports and other commercial places.



Technical Specification

Standard Voltage: DC12V

Battery Voltage: DC12V, 7Ah

Dimension: 357*370*82.5MM

Operational Current: 0.4A

Up to Down Time: 4~6 Seconds

Vertical Position Height: 340MM

Horizontal Position Height: 82.5MM

Remote Control Distance: 15M

Working Temperature: -35°c~+55°c degree centigrade

Maximum Bearing Weight: 5 tons

Protection Grade: IP68



Functions & Features:

1.Energy-saving:adopting well-known brand, the power of the parking lock can last at least half a year.

2.Safe:the power is of anti-reverse design and easy installing.

3.Durable; the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4.Hermetic; the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5.Auto re-positioning; the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to put it horizontally.

6. Noise-free; bearing transmission design of the motor makes almost zero noise. It is beneficial
for battery and motor longevity and lesser friction.
7. Burglarproof; the mounting bolts are placed inside of the cabinet. No one can open it without
key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.





IP68 Water Resistant Parking Space Lock 15m Remote Control Distance Energy Saving
