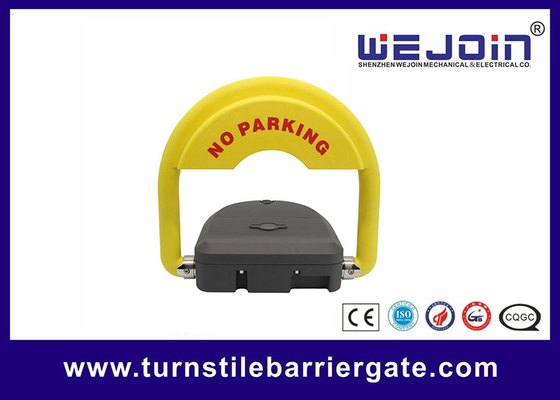

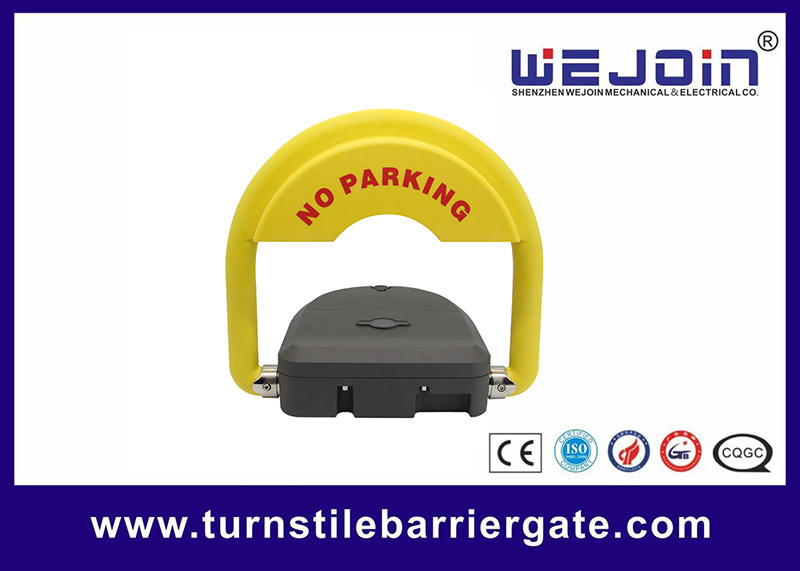

Waterproof Intelligent Parking Space Lock 0.4A Current 12 Months Warranty

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJCS101
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: Western Union, T/T
Supply Ability: 10000 set / month
Detail Information
Current: 0.4A Running Time: 4~6s
Warranty: 12 Months Product Name: Parking Lock
Material: Die-casted Zinc Alloy Width (mm): 357mm
High Light:

automatic parking lock

,

car park locks


Product Description

Waterproof Intelligent parking space lock system smart car parking



Product Introduction

Parking lock is the newly-developed product by our company. The cabinet of the parking lock is coated with high-class varnish with features of wearable, glossy and colorfast. The product has attributes like beautiful and novel structure designing, diversified functions, user-friendly operation, safe and durable features.



Product Features

1. Energy-saving
2. Safe & Hermetic
3. Intelligent self re-positioning
4. Noise-free & Burglarproof



Technical Specification

Model

WJCS101

Standard Voltage

DC12V

Battery Voltage

DC12V, 7Ah

Dimension

357*370*82.5MM

Operational Current

0.4A

Up to Down Time

4~6 Seconds

Vertical Position Height

340MM

Horizontal Position Height

82.5MM

Remote Control Distance

15M

Working Temperature

-35°c~+55°c

Protection Grade

IP68



Detailed Product Desciption

1.Energy-saving:the battery is a best product in China. Using The United States Champion brand battery, with resistant shock, resistant high temperature, small size, good charge and discharge performance characteristics, theorily can be recharged 5000 times. Most energy-using efficient design patterns to achieve the industry's lowest operating current host 0.4A, starting current 0.6A ~ 0.7A, standby current of 0.6mA, thus ensuring once charging using at least once a year.

2.Safe:the power is of anti-reverse design and easy installing.

3.Durable: the cabinet is made of die-casted Zinc alloy with high quality, and the maximum weight of load-bearing is 5 tons; the cabinet is coated with varnish, being water-proof and anti-rust in harsh weather. The sway arm is made of fiber-reinforced nylon, and it will not deform even after car crushing.

4.Hermetic:the cabinet is tightly closed, and Protection Grade is IP68. It is waterproof and dustproof. It can be used broadly.

5.Auto re-positioning:the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will re-position vertically, unless the user uses remote control to make it down.

6. Noise-free:bearing transmission design of the motor makes almost zero noise. It is beneficial for battery and motor longevity and lesser friction.
7. Burglarproof:the mounting bolts are placed inside of the cabinet. No one can open it without key.
8. Easy Installation: four prepared holes at the bottom of the cabinet makes it easy to install.



OUR SERVICES

1. Your inquiry related to our products or prices will be replied in 12 hours.

2. Well-trained and experienced staffs to answer all your enquires in fluent English.

3. OEM&ODM, any your customized we can help you to design and put into product.

4. OEM&ODM welcome under competitive price but high quality.

5. We have our professional R&D, produce the products according your requests.



Product Applications

It is well applied for car parking management in areas like high-end residences, shopping malls, hotels,airports and other commercial places.
