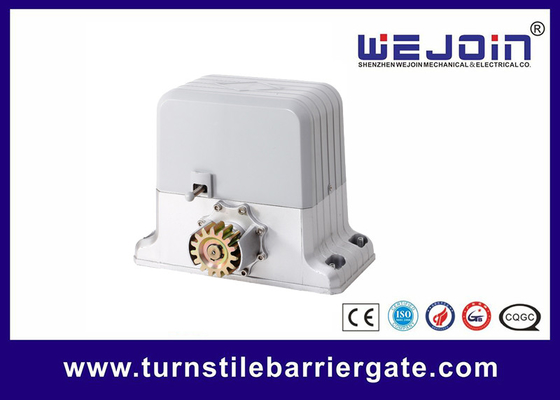

AC Control Board Sliding Driveway Gate Opener Auto Reverse Function For Sliding Door

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Material: Aluminum Alloy Die-cast Environment Temperature: -25°C ~ +55°C
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 110 V
Name: Sliding Gate Operator Usage: Villa Gate
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

1800kg ac control board electric gate motors for sliding door



Main Features
AC motor with built-in control unit
Keypad/single button interface
Alarm lamp, photo beam and safety beam interface
User can select auto-close function
Soft start and slow stop(smart version, optional)
Auto-reverse function when hitting obstacle during closing(smart version, optional)
Manual key release design for emergency power failure



Specifications

Model

WJKMP202

Voltage

220V±10%

110V±10%

Frequency

50HZ

60HZ

Current

2.7A

5.8A

Motor voltage

AC220V / 110V

Capacitor

20μf

60μf +14μf

Output Power

350W

Absorbed power

594W

638W



Motor base and it's installation
1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.



Rack installation
Make the gear of the gear rack towards the floor. Make the gear of the rack fit the gear of the motor. Fasten the gear rack to the door with the screws. Push the gate and make it move the whole route Fasten the gear to the gate after assuring that the gate run smoothly the whole route
Rack is usually installed piece after piece. To avoid dithering or blocking, please adjust the gap of the gear rack. We suggest one way( refer to Fig-3): fix up the rack1 and rack after adjusting the two racks with the small adjusting rack



AC Control Board Sliding Driveway Gate Opener Auto Reverse Function For Sliding Door 0
