1800kg Electric Gate Operators , Motorized Gate Opener Sliding 58.5rpm Gear Speed

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Contact Now
Detail Information
Material: Aluminum Alloy Die-cast Environment Temperature: -25°C ~ +55°C
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 110 V
Name: Sliding Gate Operator Usage: Villa Gate

Product Description

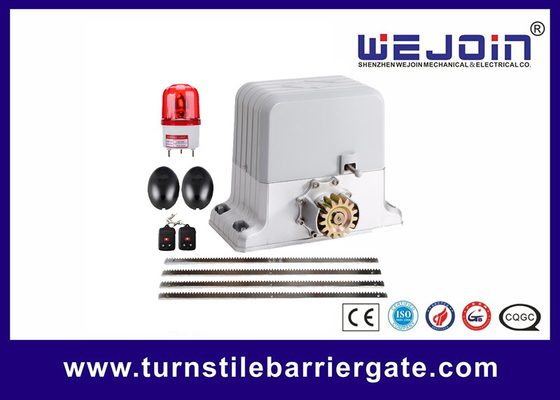

1800KG automatic door operator with gate photocell sensor and rack installation



Specification of motors:


Model:WJKMP202
Voltage: 220V±10%
Frequency:50HZ
Current: 2.7A
Motor voltage: AC220V / 110V
Capacitor: 20μf
Output Power:350W
Absorbed power:594W
Motor speed: 1350rpm
Gear speed: 58.5rpm
Travel speed:11m/min
Max.weight of gate: 1800kg

Model:WJKMP202
Voltage: 110V±10%
Frequency:60HZ
Current: 5.8A
Motor voltage: AC220V / 110V
Capacitor: 60μf +14μf
Output Power:350W
Absorbed power:638W
Motor speed: 1620rpm
Gear speed: 70.2rpm
Travel speed:13.2m/min
Max.weight of gate: 1800kg



There are many several features and functions for motor as follows:
1. It has the exquisite appearance,the main body of the machine,adopting high quality aluminum alloy through spray painting and die casting treatment,is firm and hard.
2. The motor is powerful,starts smoothly,has big torque and low noise,and is smooth and reliable when operating.
3. With built-in thermal protector(the motor will automatically cut off power supply for protection when the motor heat up to rated temperature)
4. The circuit has the functions of electronic infared ray collision prevention and electronic reversion when meeting obstacle so as to ensure pedestrians' safety.
5. Easy to installation is simple,easy maintence.
6. Our warrenty time is one year.



Sliding Gate Door Opener Features
1. Soft start and soft stop
2. Emergency release key in case of power failure
3. Convenient midway mode
4. Stop/Reverse in case of obstruction during gate opening/closing.
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10. Easy to handle and low maintenance
11. 24V low safety voltage with optional solar set as backup battery
12. Guarantee: Normally one year after the shipping, but our after sales service last for lifelong time.
13. Packing: Export brown carton or colorful box depend on your order item, or customized carton with your own logo (we have amount requirement on customized items, above 500pcs per item)
