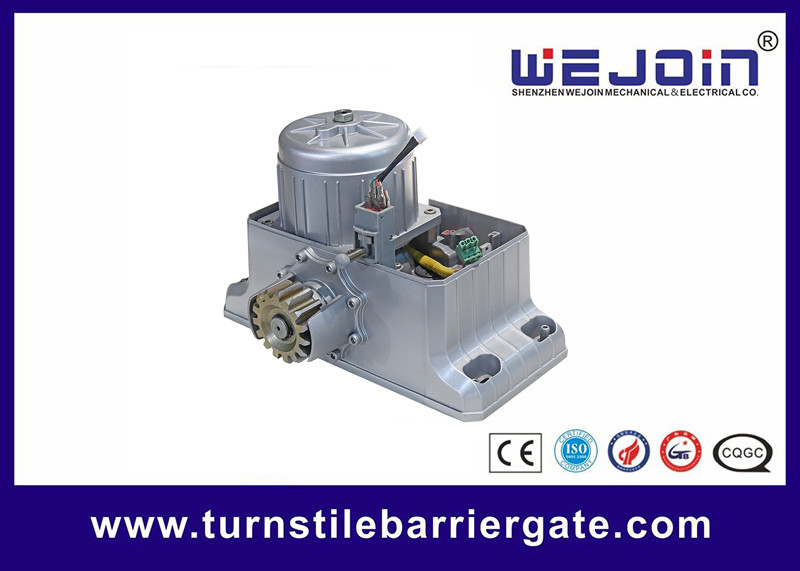

Photocell Sensor Electric Automatic Sliding Gate Opener 16Nm Output Torque

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Material: Aluminum Alloy Die-cast Environment Temperature: -25°C ~ +55°C
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 220 V
Name: Sliding Gate Operator Usage: Villa Gate
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

photocell sensor electric automatic sliding gate operator for sliding gate



Technical Parameters:

Power

AC220C±10V 50/60HZ

Motor speed

55rpm 66rpm

Operating Temperature

-20°C~+50°C

Relative Humidity

≤95%, No Condensation

Remote control operating distance

30m (Frequency433.92mHz)

Rated output power of motor

200W

Remote control mode

Single button

Max gate weight

1800Kg

Output torque

16Nm

Limit switch

Spring limit switch

Noise

≤58dB

Duty cycle

S2, 15 minutes

Extra remote control

20 pcs

Gate move speed

12m/min

Application

Home automation



Functions& Features:
1. Max gate weight 1800kg
2. New design of spring limit switch downward
3. Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch
4. Mcu is supplied to control the gate operator
5. Keypad/single button interface
6. Photo beam safety beam interface
7. User can select Auto-close function
8. Manual key release design for emergency purposes



Packing:
Selling Units: Single item
Single package size: 38*29*34 cm
Single gross weight: 13.0 kg
Package Type: Carton box
