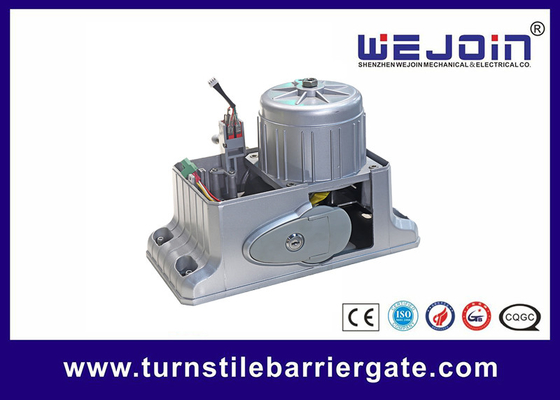

220V / 110V DC Sliding Gate Motor With 5 Standard Mechanical Rotary Limit Switches

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Type: Door Open Motor Material: Aluminum Alloy Die-cast
Usage: Residential Sliding Gates Environment Temperature: -25°C ~ +55°C
Limit Switch: Magnetic Limit Switch Or Spring Limit Switch Voltage: 220 V / 110 V
High Light:

sliding gate opener motor

,

automatic sliding gate opener

,

35nm Torque sliding gate motor


Product Description

Sliding Gate Opener Automatic Door Operator DC Sliding Door Motor



Products Features:
1. The operator is composed of motor, gearbox, manual release mechanism and control system.
2. Using high efficiency worm reducer, large speed ratio, high efficiency, low power, safety and good self-locking.
3. The operator is oil submerging ,good lubrication, low noise, long use life.
4. The built-in control system with remote control, manual control, limiting accurate, convenient adjustment.
5. The motor with thermal protection and overload automatic shutdown protection function.
6. Nice design, beautiful appearance, compact structure, small volume.
7. The suitable working environment temperature is between -20 ℃~ 70 ℃, IP54 protection class with stable performance and safety.
8. Some customized special specifications for customer request.



Characteristics:
1. With 5 standard mechanical rotary limit switches
2. Can choose the absolute value encoder electronics limit
3. Can choose a quick release mechanism
4. There is a group of peripheral interface, can connect with infrared photocell, safety edge switch and door safety protection device.
5. There are two model control system: built-in control panel and separate control box.
6. With phase sequence detection, and overload protection, phase correction.
7. Easy to install and maintain.



Motor Data

Model

WJKMP202

Voltage

220V±10%

110V±10%

Frequency

50HZ

60HZ

Current

2.7A

5.8A

Motor voltage

AC220V / 110V

Capacitor

20μf

60μf +14μf

Output Power

350W

Absorbed power

594W

638W

Torque

35nm

Mode number

M=4

Motor speed

1350rpm

1620rpm
