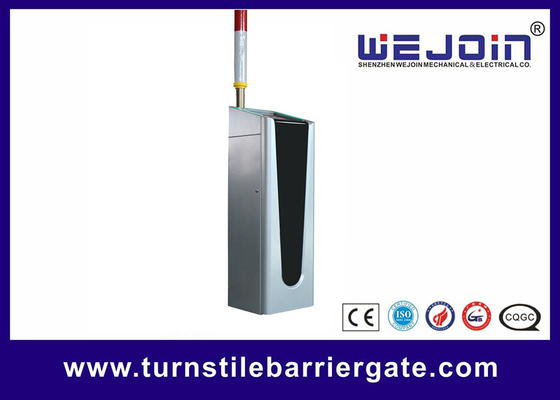

Remote Control Parking Barrier Gate 0.9 - 5s Operating Time Good Torque Balance

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 0.9-5s Boom Type: Carbon Fiber Round Boom
Application: For Enterprises And Institutions Warranty: 1 Year
Product Name: Barrier Gate Material: Steel And Aluminum
High Light:

parking lot arm gate

,

car park barriers


Product Description

Arm Barrier Gate for Car Parking Automat Remote Control Car Parking Barrier



Product Introduction


Servo barrier gate WJCB02 provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as residential community, shopping center, exhibition center, hospitals, airport etc..

WEJOIN Commercial Servo Barrier Gate WJCB02
Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable), 100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!



Parking Barrier Gate Features:



1. DC permanent magnet synchronous motor(PMSM),servo control.

2. Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.

3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.

4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)

5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)

6. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.

7. More sensitive and reacting faster when reversing on obstacles.

8. With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.

9. LCD display controller, more humanized operation and setting.



CB02E/H Series Boom Length and Speed Selection

Model

CB02H (0.9-5S)

Boom Type

Straight Boom

90° Folding Boom

180° Folding Boom

2 Fence Boom

3 Fence Boom

Boom Length

≤3M

≤4.5M

≤6M

≤3M

≤5M

≤3M

≤5M

≤4.5M

≤4M

Passing Speed

≥0.9S

1.5/2.3/3S

3S

2.3/3S

3S

2.3/3S

3S

3S

3S

Running Speed

≥1.3S

2.7/3.8/5S

5S

3.8/5S

5S

3.8/5S

5S

5S

5S

Boom Length (Meters: M) Speed (Seconds: S)
