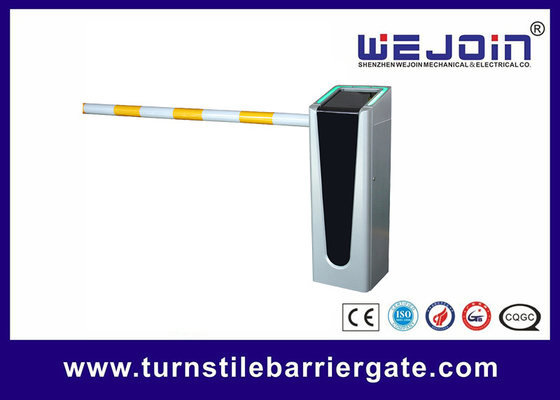

DC Servo Vehicle Barrier Gates Super Torque For Enterprises And Institutions

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Contact Now
Detail Information
Operating Time: 0.9-5s Boom Type: Carbon Fiber Round Boom
Application: For Enterprises And Institutions Warranty: 1 Year
Product Name: Barrier Gate Material: Steel And Aluminum

Product Description

Parking automatic car parking lot gate traffic barrier dc servo barrier



CB02 Commercial Servo Barrier Gate Series
Huayao G20 Commercial Servo Barrier Gate
MTBF: ≧10 million opening and closing cycles
It can be equipped with CB02E(0.5-0. 9S), CB02H(0.9-5S), and CB02I(3-5S)mechanism
Left-installation and right-installation can be exchanged
Super torque, High precise control,Three spring balance mechanism
Alarm against abnormal lifting boom
Support 24 hour continuous operation without heating protection
LCD function display controller
Electronic clutch design
Speed will reduce when boom moves to the limit position
RS485 communication, TCP/IP network port
DC12V power supply is optional



Product parameter:
Working temperature:35℃~85℃
Power supply:AC 220V/110V±10% 50/60HZ
Power consumption:300W
Relative humidity:≤90%
Remote control distance:≥30m
Insulation grate:F
Parameter choose:direction,length,boom style



Parking Barrier Gate Features:
1. DC permanent magnet synchronous motor(PMSM),servo control.
2. Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.
3. Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4. Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)
5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)
6. No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7. More sensitive and reacting faster when reversing on obstacles.


CB02E/H Series Boom Length and Speed Selection

Model

CB02H (0.9-5S)

Boom Type

Straight Boom

90° Folding Boom

180° Folding Boom

2 Fence Boom

3 Fence Boom

Boom Length

≤3M

≤4.5M

≤6M

≤3M

≤5M

≤3M

≤5M

≤4.5M

≤4M

Passing Speed

≥0.9S

1.5/2.3/3S

3S

2.3/3S

3S

2.3/3S

3S

3S

3S

Running Speed

≥1.3S

2.7/3.8/5S

5S

3.8/5S

5S

3.8/5S

5S

5S

5S



Boom Length (Meters: M) Speed (Seconds: S)



Application:
Office Buildings.
Shopping Centers.
Car Parks.
Distribution and Warehouse Facilities.
Commercial and Industrial Facilities.
Government Buildings.
