| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJCB02H |
| Minimum Order Quantity: | 1 set |
| Price: | negociate |
| Packaging Details: | carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Operating Time: | 0.9-5s | Boom Length: | Max.6m |
|---|---|---|---|
| Anti-collision: | Yes | Usage: | Parking Lots |
| Color: | Flashing Gold | Weight: | 65kg |
| High Light: | parking lot arm gate,car park barriers |
||

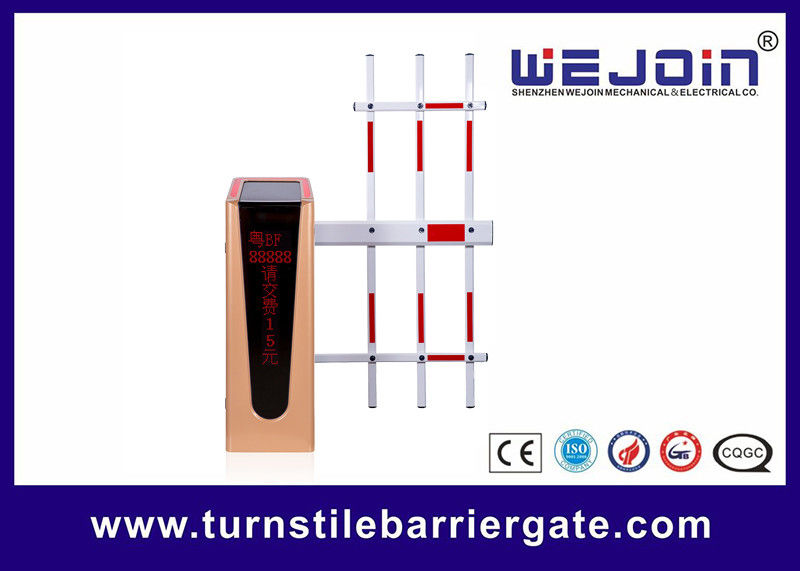

Automatic boom barrier gate with vehicle loop detector for parking system
Our Services
1. Any email will be checked in 5 minutes, any inquiry will be replied within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service
WEJOIN's Main Advantages
1. Global leading company for barrier gate
2. Master of core technology and innovation
3. Intelligent quality manufacturing process and automatic flexible production
4. Global advanced manufacturing process and testing equipment
5. Servo,variable frequency,double speed,bi-direction motor and other leading technique
6. High speed and low speed coexist in motor
7. Integral service network covering fist-tier and second-tier cities,and more under construction service network
Functions and Features
1. DC permanent magnet synchronous motor (PMSM) and servo control technology.
2. The motor has the same performance as the main motor of CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency and low noise.
3. Three tension spring crank transmission design for more stable and reliable structure. (Patented Technology)
4. Scientific balance design, using special material spring, for better balance and maintenance-free.
5. No limit switch design, accurate encoder detection, detecting boom position when power on.
6. Bi-direction boom holder design, left-installation and right-installation can be exchanged easily and quickly.
7. More sensitive and reacting faster when reversing on obstacles.
WEJOIN Profile
Founded in March 2004, Shenzhen WEJOIN Mechanical & Electrical Co. is a national high-tech enterprise specialized in R&D, production and sales of intelligent access control products. It has nearly 200 patented technologies. Its main products including high-end commercial servo barrier gate, high-end servo barrier gate, mid-end servo barrier gate, flap barrier, tripod turnstile, swing barrier, speed gate, etc., are suitable for the entry and exit management of vehicle and personnel such as high-speed toll gate, commercial plaza, residential areas, stations, customs checkpoints, etc.
Technical Data
|
Input Voltage |
AC 220V±10%, AC110V |
|
Motor Voltage |
DC310V |
|
Enclosure Rating |
IP54 |
|
Working Temperature |
-35°C~+85°C |
|
MTBF |
10000000 times |
|
Duty Cycle |
100% |
|
Traffic Flow Application |
24 hours uninterrupted operation |
|
Max Motor Power |
300W |
|
Max Motor Speed |
90r/min |
|
Max Torque |
480N.m |
