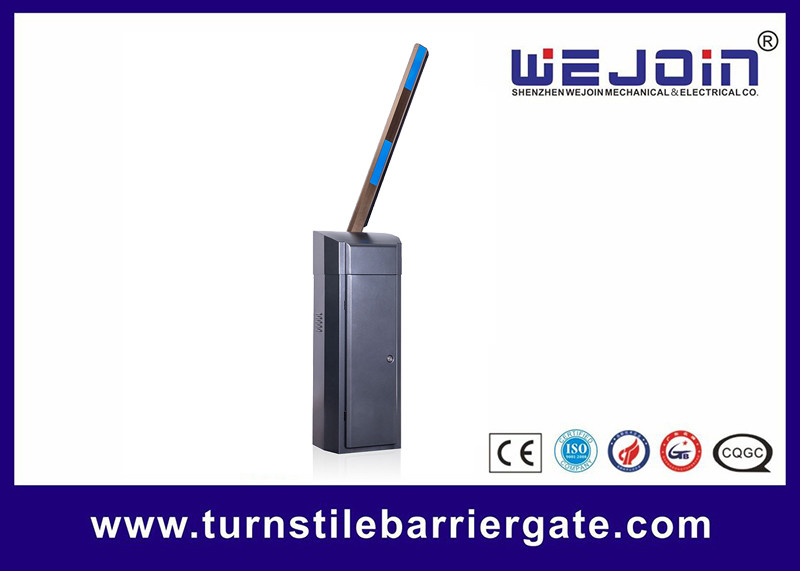

Multi - Spring Balance Vehicle Barrier Gates With Straight Arm Running At High Speed

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 0.9-5s Anti-collision: Yes
Color: Black Application: Over-sized Traffic Flow Area
Material: 304 Stainless Steel Housing Material: 2.0 Mm Cold Rolled Steel Sheet
High Light:

automatic car park barriers

,

security barrier gate


Product Description

automatic car parking barrier gate





WJCB02 Automatic parking barrier /traffic barrier gate/boom barrier gate
Our barrier gate is one of your option, we are professional hardware provider of parking management system and security access control system.
WJCB02 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 2mmcold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:



Technical specifications:
Model: WJCB02
Power supply: 220VAC 50Hz (accept customization)
Motor's power: 300W 220VAC
Max length of boom: 6m
Housing: 1.5mmor 2.0mm steel with painting
Spring: multi-spring balance
Remote control: 2 remote control tag with one receiver.
Net weight: 55kg
Ground weight: 75kg
Warranty: 1 year



Boom Barrier Gate Operation Time Table

Boom type(s)

Open/Close speed(s)

Time from open to chose(s)

Big type arm ≥6

2.5

4.5

Big type arm 4.5-6

1.8

3.8

Middle type arm 4-4.5

1.5

3.3

Middle type arm 3.5

1.2

2

Middle type arm 3.5

0.9

1.8
