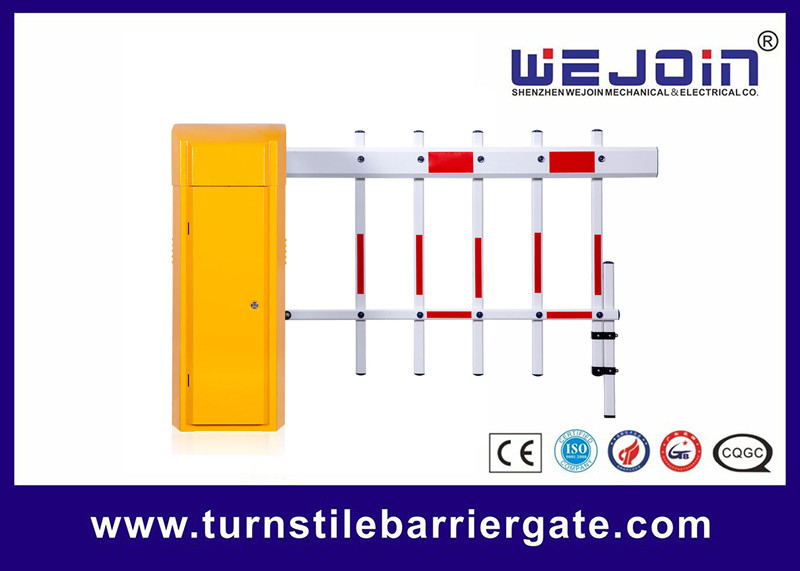

High Grade Residential Area Automatic Barrier Gate Anti Collision With Fence Arm

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJCB02H
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 0.9-5s Boom Length: Max.6m
Anti-collision: Yes Remote Control Distance: <50 Meters
Application: Over-sized Traffic Flow Area Arm Material: Aluminum Alloy
High Light:

vehicle barrier gates

,

security barrier gate


Product Description

high-grade residential area remote control gate barrier with fence arm​





Application
Parking lots, toll gates, border, Goods yards, Railway crossings, Commercial premises, Apartment block access, housing estate etc.



Brief Details

This is our newly-produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operate more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime



Characters

Electric Automatic Barrier Gate for vehicle and car Parking
* Default with 4.1m straight expansion boom
* Product size:970*250*340mm
* Mechanism:Variable speed mechanism
* Housing color: red/orange/customize
* Remote control distance: ≤30m
* Input power: AC100-240V, 50Hz
* Working temperature: '-40 ºC to +80 ºC
* Working life:3-5 years
* Open/Close time:6S/3S
* Case material: Imported Q235 cold rolling steel plate
* Boom material: Alu-alloy
* Packing size:106*38*36cm
* G.W:43.5-45.5kgs



Specification:

Open/Close time

(model WJCB02E, 0.4~0.9s adjustable)

Arm Length

3-6m

Working Temperature

-35ºC to +75ºC

MTBF

>5million times

Power Supply

220V±10 % 50/60HZ

/110V±10 % 50/60HZ

Rated Power

300W

Related Humidity

≤90%

Remote Control Distance

>30M

Net Weight

60KG
