IP54 Servo Control LED Boom Electronic Barrier Gates

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ04SV
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Motor: Die Casting Aluminum Alloy Speed: 3~5s Adjustable
Power: 150W Voltage: AC220V; AC110V
Application: Parking Lot Warranty: 1 Year
High Light:

LED Boom Vehicle Barrier Gates

,

Servo Control Parking Space Barrier


Product Description

electronic security LED boom parking arm barrier gate with remote control



Parking Barrier Gate Application

Indoor as well as an outdoor parking area
parking lots, goods yard, railway crossing, commercial premises, hospitals, stadiums, business centers, etc.



Parking Barrier Gate Brief Introduction
It utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ext. In this way, make the barrier operates more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.



Parking Barrier Gate Functions & Features

1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.



Parking Barrier Gate Technical Data WJDZ04SV2

Model WJDZ04SV2 (speed 1.5~5s adjustable)
Running Speed 1.5s 2/3/4/5s 5s 5s 5s
Boom Type Straight Straight 90° Folding 2 Fence 3 Fence
Max Boom Length 3.5m 4.5m-6m 4m 4.5m 4m
Housing Dimension 362*325*1030mm
Input Voltage AC220V±10%,AC110V±10%
Frequency 50/60HZ
Motor Voltage DC310V
Enclosure Rating IP54
Working Temperature -35°C~+85°C
MTBF 5000000 times
Traffic Flow Application 3000 times/24hours
Max Motor Power 150W
Max Motor Speed 24r/min
Max Torque

240N.m

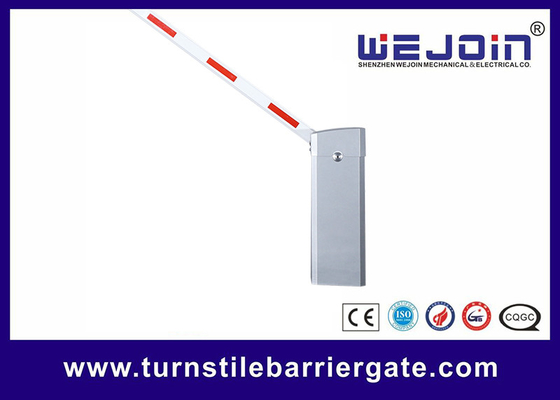

IP54 Servo Control LED Boom Electronic Barrier Gates 0
