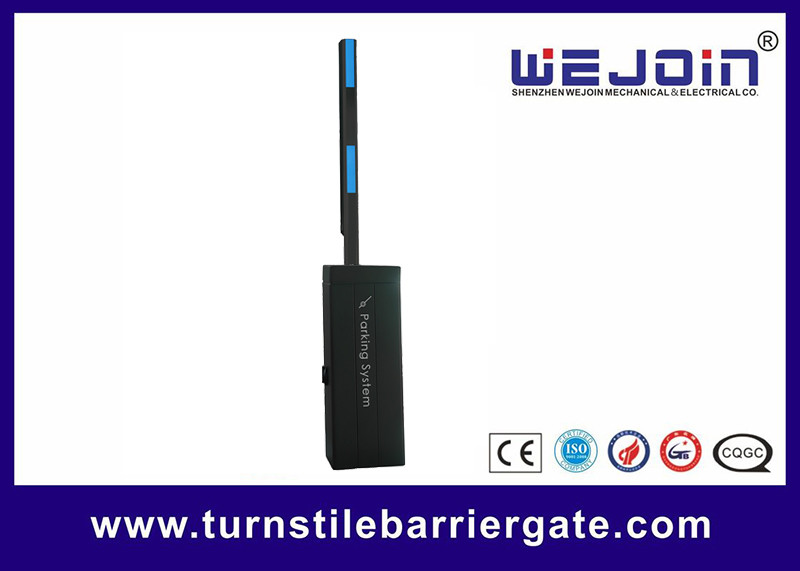

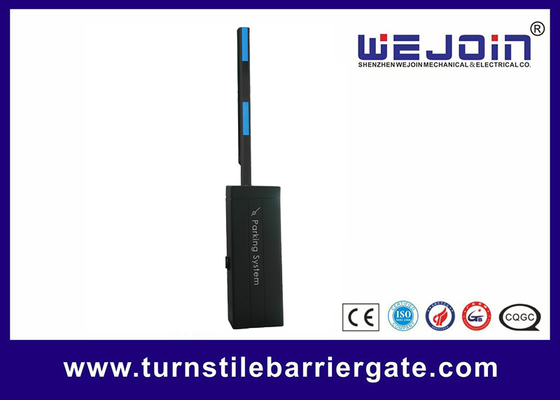

Eco Servo Vehicle Barrier Gate With DC Brushless Servo Motor

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E20
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Voltage: AC 110V Or 220V
Boom Length: Max 6M (customized) Warranty: 2 Year
Housing Color: Yellow-green Application: Parking Solution
High Light:

Eco Servo Vehicle Barrier Gate

,

Servo Motor Vehicle Barrier Gate

,

DC Brushless Straight Boom Barrier Gate


Product Description

WEJOIN Eco-Grade Servo Barrier Gate with DC Brushless Servo Motor


WEJOIN Eco-Grade Servo Barrier Gate WJDZE
DC Brushless Servo Motor
Higher Stability, Longer Service Life and Easier Operation


Vehicle Barrier Gate Technical Data
Model WJDZE1 (speed 1.8~6s adjustable)
Running Speed 1.8s 3S 4S 5/6S 5/6S 5/6S 5/6S 5/6S
Boom-Type Straight Straight Straight Straight 90° Folding 180° Folding 2 Fence 3 Fence
Max Boom Length 4m 4.5M 5M 6M 5M 4M 4.5M 4M

Input Voltage: AC220V±10%, AC110V±10%
Frequency: 50/60HZ
Motor Voltage: DC310V
Enclosure Rating: IP54
Working Temperature: -35°C ~ +85°C
MTBF: 3 million times
Traffic Flow Application: 24 hours of uninterrupted operation
Max Motor Power: 120W
Max Motor Speed: 24r/min
Max Torque: 240N.m



Quality management

Professional Equipment
WEJOIN company introduced a full range of equipment to meet the requirements for manufacturing diverse products. The die casting machines provide the parts we need and guarantee the progress of the production.



Fresh Materials
Our company uses fresh materials in the manufacturing process, such as aluminum alloy, Du Pont nylon. All these ensure the excellent quality of our products, offering longer service life to the customers.



Quality Control
We dedicate to provide only an automatic gate system with the best quality. The quality control team uses professional testing equipment proceeding a series of testing measures to make sure our products meet all the technical requests.



WEJOIN's Main Advantages

1.The global leading company for barrier gate

2.Master of core technology and innovation

3.The intelligent quality manufacturing process and automatic flexible production

4.The global advanced manufacturing process and testing equipment

5.Servo, variable frequency, double speed,bi-direction motor, and other leading technique

6. High speed and low speed coexist in motor

7.Integral service network covering first-tier and second-tier cities, and more under the construction service network


Eco Servo Vehicle Barrier Gate With DC Brushless Servo Motor 0
