| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ101 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Max Boom Length: | 3 Meters | Voltage: | 110v/220v |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Boom Type: | Round Foam Boom | COM Interface: | RS485 |
| High Light: | 6m Boom Parking Barrier Gate,Infrared Photocell Parking Barrier Gate,6sec Building Entrances Barrier Gate |
||

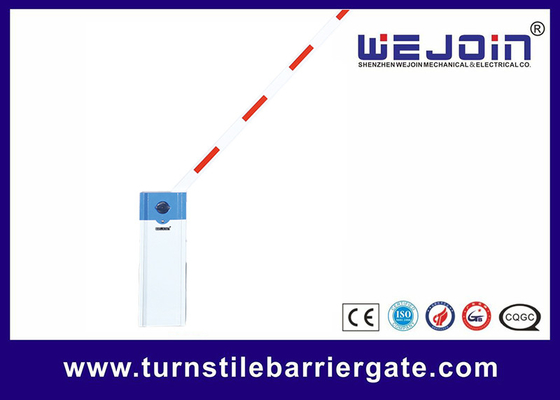

Barrier gates with long booms for car parks, building entrances
Parking Barrier Gate
Barrier gates are built with long booms that are used to block entrances of car parks, building entrances, and residential areas.
-The barriers creates a filter for unauthorized personnel
-Create a solution for traffic control
-Improve security to your premises
Features:
1.Manual release
2.Machine core with compression spring effectively avoids the accidents caused by spring break.
3.Die-casting aluminum alloy motor, precision, and good at thermal radiating.
4.Motor cooling fan, solving the problem of heat-protection
5.Double safety limit switches(photoelectricity limit switch/ motor memory sensor)
6.reversing on an obstacle
7.Auto-closing
8. Support the infrared photocell for anti-bumping(optional)
Specifications
|
Model Item |
101-11 | 101-13 | 101-16 | 101-23 | 101-26 |
| Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec |
| Boom type | straight | 90-degree folding | |||
| Max boom length | 3m | 4.5m | 6m | 3m | 5m |
|
Voltage |
220V±10%, 110V±10% |
||||
|
Frequency |
50/60 Hz |
||||
Service Items
1. The warranty time is one year
2. Offering the lifetime service with a charge
3. Offering the technology support
