| Place of Origin: | CHINA |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE ISO SGS |
| Model Number: | WJDZ101 |
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000 sets/month |
| Max Boom Length: | 3 Meters | Voltage: | 110v/220v |
|---|---|---|---|
| Motor Material: | Die-casting Aluminum Alloy | Housing Material: | Steel |
| Boom Type: | Round Foam Boom | COM Interface: | RS485 |
| High Light: | Aluminum Alloy Parking Gate Barrier,4.5m Boom Parking Gate Barrier,RS485 Automatic Boom Barrier |
||

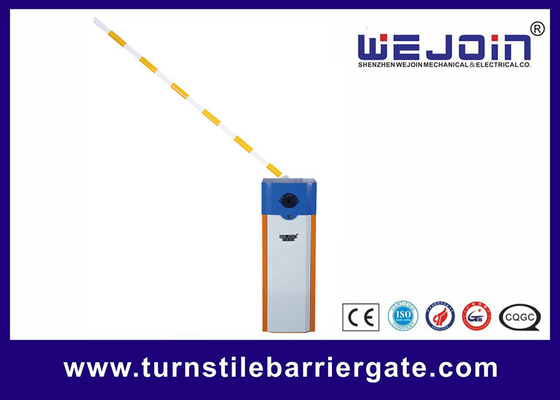

Auto-closing automatic parking lot barrier for apartment block access
Applications:
parking lot, toll gate, goods yard, railway crossing, commercial premise, apartment block access
Specifications:
Manual release
Machine core with compression spring effectively avoids the accidents caused by spring breaking
Die-casting aluminum alloy motor, precision and good at thermal radiating
Motor cooling fan, solving the problem of heat-protection
Double safety limit switches
Reversing on obstacle
Auto-closing
Supports the infrared photocell for anti-bumping function (optional)
Supports the external and internal vehicle loop detector (optional)
Traffic light interface
Wire control (switch signal)/remote control (418MHz)
RS485 communication module (optional)
Specifications
|
Model Item |
101-46 |
| Running time | 6sec |
| Boom type |
2 fencing |
| Max boom length | 4.5m |
| Voltage | 220V±10%, 110V±10% |
| Frequency |
50/60 Hz |
|
Motor voltage |
220V |
|
Power |
80W |
Spring installation
1. Place the selected spring in the spring cabinet
2. Put the spring and spring cabinet into the spring supporter
3. Place the threaded pole into the spring cabinet and fasten it with the necessary screws in the right hole.
4. Place the baffle ring and adjusting the screw to the bottom of the spring, and then adjust it to make it balance the weight of the boom.
