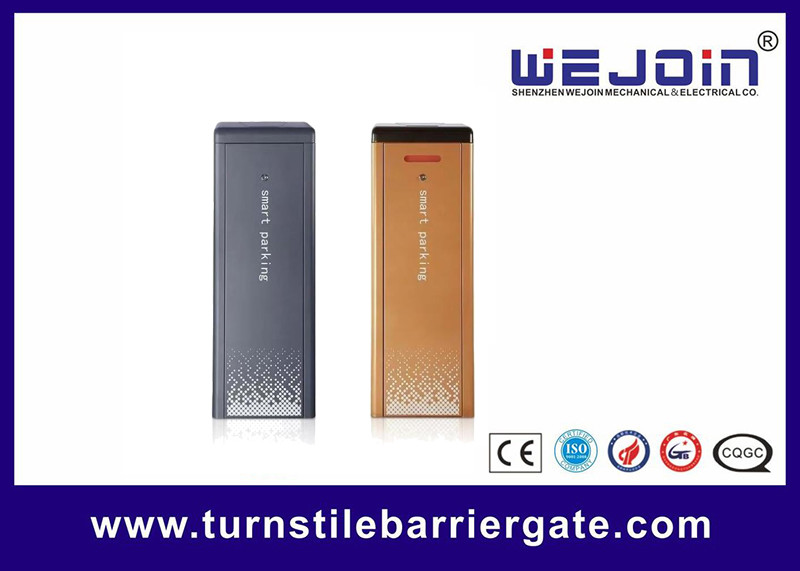

IP54 Straight Folding Intelligent Parking Barrier Stainless Steel SGS

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: E30
Minimum Order Quantity: 1 set
Price: negociate
Packaging Details: carton
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Operating Time: 1.5s, 3s, 4s, 5s, 6s Boom Type: Straight Folding Fencing
Housing Material: 304 Stainless Steel Color: Gold, Black
Application: Parking Lot Warranty: 1 Year
High Light:

Straight Folding Intelligent Parking Barrier

,

IP54 Intelligent Parking Barrier

,

SGS Stainless Steel Barrier Gate


Product Description

Intelligent Parking barrier for high traffic with a long-life cycle



Intelligent Barrier Technical Data:

Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Max Motor Power

200W

Humidity

≤90%

Working Temperature

-35°C∼+85°C

Enclosure Rating

IP54

MTBF

2500000 times

Net Weight

40KGS

Gross Weight

45KGS



Functions & Features
1. Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring life cycle up to 500,000 times.
2. Built-in delay auto-closing and reverse on an obstacle in case of resistance.
3. Support infrared photocell, loop detector, and external radar, and built-in DC12V power output.

4. Standard fitting with 433MHZ learning code remote control, convenient and quick to add configuration.
5. When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery charging module is optional, when power on, the battery will automatically charge.
6. Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can be easily changed.



DC Brushless Barrier Gate WJDZE-BL
It can be equipped with WJDZE-BL(1.5-6s) mechanism
Left-installation and right-installation can be exchanged
Alarm against abnormal lifting boom
Support 24-hour continuous operation without heating protection
Speed will reduce when the boom moves to the limited position
RS485 communication, TCP/IP network port
