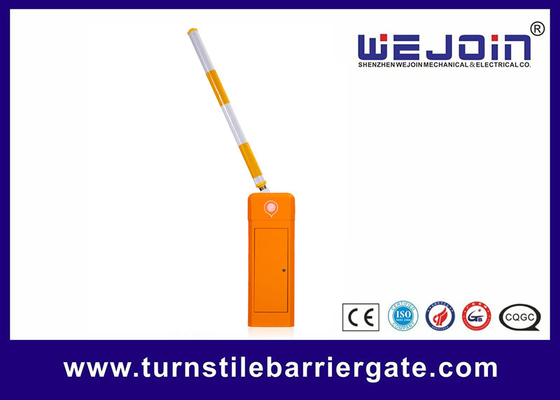

IP54 DC310V Parking Barrier Arm Gate PMSM 150W For High Traffic

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom Housing Color: White And Blue
Application: Parking Lot Speed: 1-2s/3-5s Speed Adjustable
Boom Length: Max 6M (customized) Arm Material: Aluminum Alloy
High Light:

IP54 Parking Barrier Arm Gate

,

DC310V Parking Barrier Arm Gate

,

PMSM Car Park Barrier Gate


Product Description

High-performance automatic parking gate barrier for high traffic


Parking Barrier Description:

WEJOIN Boom Barrier is a product which WEJOIN owns independent intellectual property rights. Its boom prevents the entry of unauthorized vehicles to a restricted area and is raised by the linkage between the gate and the remote control, access control system, long-distance reader, and number plate recognition system.



Boom Barrier Technical Data

Model

WJCB01SV-I

Running Speed

3/4/5S

5S

5S

5S

5S

Boom-Type

Straight

90° Folding

180° Folding

2 Fence

3 Fence

Max Boom Length

4.5M~6M

5M

4M

4.5M

4M

Input Voltage

AC220V±10%, AC110V±10%

Frequency

50/60HZ

Motor Voltage

DC310V

Enclosure Rating

IP54

Working Temperature

-35°C ~ +85°C

MTBF

6000000 times

Traffic Flow Application

24 hours of uninterrupted operation

Max Motor Power

150W

Max Motor Speed

36r/min

Max Torque

240N.m



Parking Barrier Gate Functions & Features

1. DC permanent magnet synchronous motor (PMSM) and servo control technology.

2. The motor has the same performance as the main motor of the CNC machine and electric vehicle. It has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.

3. Double extension spring crank transmission design, for a more stable and reliable structure.

4. Reasonable balance design makes less dependence on spring and easier adjustment and less maintenance.

5. No limit switch design, accurate encoder detection, detecting boom position when power on.

6. Manual clutch design: When power-off, open the manual hand-wheel clutch to move or lock the boom at any position by hand directly. (patented technology)



IP54 DC310V Parking Barrier Arm Gate PMSM 150W For High Traffic 0
