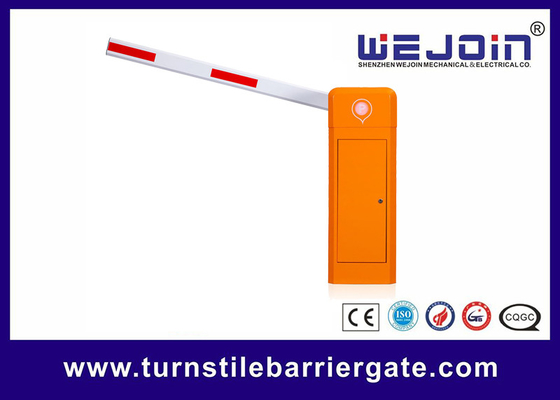

Straight Boom Foam Lining Automatic Parking Gate 5S Rust Resistant

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: CB01SV
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 12 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Boom Type: Straight Boom And Other Types Optional Housing Color: White And Blue
Application: Parking Lot Speed: 3-5s Speed Adjustable
Boom Length: Max 6M Arm Material: Aluminum Arm
High Light:

Foam Lining Automatic Parking Gate

,

Straight Boom Automatic Parking Gate

,

5S Parking Lot Arm Gate


Product Description

Longest straight arm optional foam lining automatic parking boom gate



Boom Barrier Brief Introduction

CB01SV high-volume automatic barrier gate offers a direct drive motor and stainless steel housing, which is durable and rust-resistant in different climates as well as tropical salt-water environments. These parking barriers gate offers multiple inputs/outputs, open/close speed selection, and auto-reverse upon obstruction. Red/green illuminated panels provide additional stop/go guidance to Drivers.

The optional breakaway release arm minimizes damage to the motor and gate in case a vehicle drives into the barrier arm. The lightweight aluminum arm requires no special tools for installation. With slim profiles, this barrier gate system is perfect for narrow spaces and high-volume applications.



CB01SV Series Boom Length and Speed Selection

Model

CB01SV-I (3-5S)

Boom-Type

Straight Boom

Boom Length

≤3M

≤4.5M

≤6M

Running Speed

3/4/5S

3/4/5S

5S





Warranty and Service Items

Free service is offered for component parts in one year warranty time. (not includes the barrier boom or remote)

Lifetime service with charge accordingly.

Technical questions are supported.



Maintenance

1. Keep the barrier gate clean

2. Check the joints every month in case of any loose parts.

3. Check the balance status of spring after the barrier gate running 1million times; change new springs after running 3 million times, to avoid spring breaking due to excessive fatigue.

4. Check the easily worn-out parts every half year and renew them.

5. Remote control distance will be shortened or not work in cases like big object screening, battery exhausting, extreme weather.
