Company security metro Turnstile Barrier Gate vehicle access control barriers

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: ISO 9001:2008,CE,
Model Number: WJTS122
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Export Wooden Case
Delivery Time: 3-15 days depending on the quantity
Payment Terms: T/T,Western Union
Supply Ability: 1,000 set/month
Detail Information
Power Supply: DC Motor Transit Speed: 30~40 Persons/min
Name: Tripod Turnstile Rated Power: 36W
Frequency: 50/60HZ Driving Force: 3KG
High Light:

turnstile entry systems

,

pedestrian security gates

,

security metro Turnstile Barrier Gate


Product Description

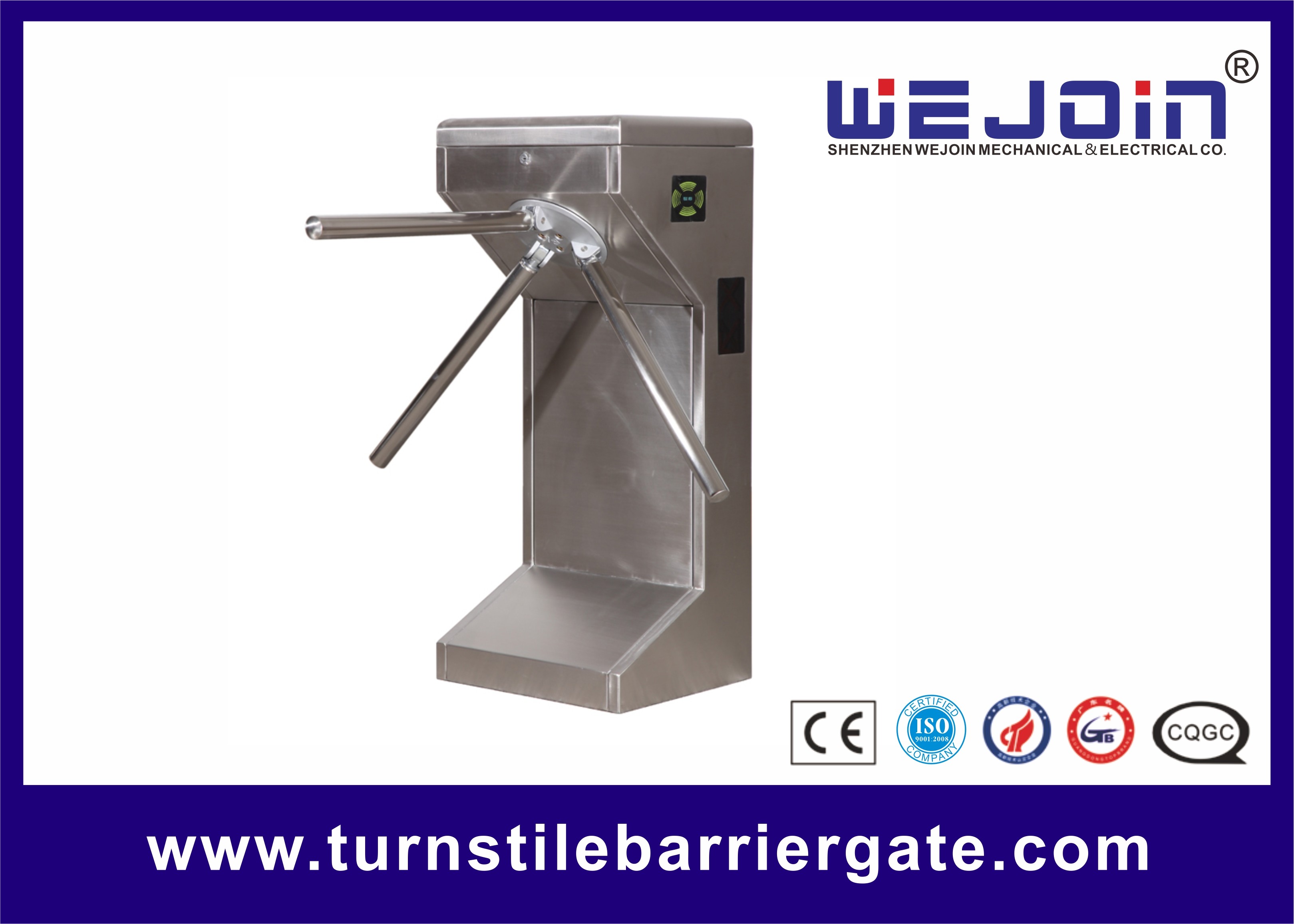

 Company security metro Turnstile Barrier Gate vehicle access control barriers


Turnstile Barrier Gate Quick Detail:

Name

Automatic Tripod turnstile

Driving Motor

DC Motor

Power Supply

220V±10%, 110V±10%

Housing material

Stainless Steel 304/ Iron with Powder

Frequency

50/60HZ

Rotating Direction

Double Direction


Turnstile Barrier Gate Functions and Features:
1.Special wheel mechanism is used here to realize the function of fixing and also unfixing all the parts of the turnstile
2.All the system runs stable with little noise and no mechanical impact
3.It can self-check and alarm which will be make it convenient to use
4.Several ways of working molds can be chosen at your request
5.It can work bi-direction, or one direction permitted, one forbidden, or one direction charged, one for free, and all the working molds can be set by the buttons in the main control board
6.Beam falling and lifting can be controlled in far distance so to satisfy the special requirement of the users and the request of fire protection
7.Beam can be lifted and fall when electricity is cut-off
8.It has the standard electrical interface which can be connected with various kinds of reader and writer equipment
9.So all the functions can be realized in one integration machine and can be controlled and managed by the computer in the far distance
10.The number of the persons who have passed by can be counted automatically which can also be displayed in LED
11.Direction-guide lights are in the turnstile to tell you which direction can go or which cannot
12.You can set the function with or without card-reading memory according to your requirement
13.The number of the persons who can pass by the turnstile can be set to meet the requirement of some special occasions
14.After reading the card, if the person who punched the card does not pass it within the set time, then this chance to access will be canceled, and the set time can be changed according to your request

Turnstile Barrier Gate Specifications:

Model
Item

WJTS122

WJTS110

WJTS112

WJTS111

Manual, Semi or Full-automatic

Full-automatic

Material of Housing

304 Stainless Steel

Iron with Powder

Thickness of Housing

1.50mm

Dimension of Housing
(L×W×H mm)

420×380×1000

1235×280×1000

1235×280×1000

420×380×1050

Length of Pole (out of housing)

490mm

Net Weight

50kg

70kg

70kg

45kg

Max Load-bearing of Pole

80kg

Driving Force of Pole

3KG

Rotating Direction

Double Direction

Power Supply

220V±10%, 110V±10%

Frequency

50/60HZ

Working Voltage of Motor

DC12V

Rated Power

50W

Driving Motor

DC Motor

Input Interface

DC12V electrical leveel signal, more than 100ms,
or DC12V impulse signal driveing current, more 10mA

Transit Speed

30~40 persons/min

Working Temperature

-40°C~55°C

Working Environment

Indoor / Outdoor (Shelter)

Relative Humidity

≤95%


Turnstile Barrier Gate Applications:
The tripod turnstiles can be used in places such as restaurants, hotels, office buildings, museums, gyms, clubs, metros, bus stations, high class communities, intelligent buildings, hotels, subway stations and other high level venues, ect.

After-sale Service:
1 year warranty
Lifetime Service with charge accordingly

Detail Preview:
Semi-auto tripod turnstile barrier gate core
Company security metro Turnstile Barrier Gate vehicle access control barriers 0

Arm
Company security metro Turnstile Barrier Gate vehicle access control barriers 1

Product Assembly
Company security metro Turnstile Barrier Gate vehicle access control barriers 2
