Barrier Gate Entrance Gate Security Systems with Yellow Color Housing

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO,
Model Number: WJDZ701
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton
Delivery Time: 3~7 working days
Payment Terms: T/T,Western Union
Supply Ability: 5000 units/ month
Contact Now
Detail Information
Color: Yellow Boom Type: Straight, Folding, Fence
Motor: AC Motor IP Degree: IP44
Speed: 3s,6s RS485: Optional

Product Description

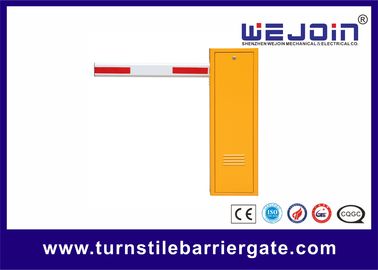

Barrier Gate Entrance Gate Security Systems with Yellow Color Housing





Quick Detail:





  1. Name: Boom barrier Gate
  2. Application:Parking Lot
  3. Speed:3/6 second
  4. Feature:Auto warming-up
  5. Rated Power:120W
  6. Certificate:CE, ISO,
  7. Net Weight:39KG
  8. Voltage:AC220V, AC110V





Description:





Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ70114 Straight boom 4m 4seconds
WJDZ70116 Straight boom 4.5m 6 seconds
WJDZ70126 90 degree, Articulated boom 4m 6 seconds
WJDZ70124 90 degree, Articulated boom 3m 4seconds
WJDZ70134 180 degree, Articulated boom 3m 4 seconds
WJDZ70136 180 degree, Articulated boom 4m 6seconds
WJDZ70146 Two-level, fence boom 3.5m 6 seconds
WJDZ70156 Three-level, fence boom 3m 6 seconds







Functions & Features:





1. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. Safety photo electricity limit switch

9. Thermal radiates rapidly, no thermal protection
10.11. Special art and craft makes out the most modernized and fashionable housing
12. RS485 communication module (optional)
 13. Advanced manual release





Applications:





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.





Specifications





Model WJDZ701
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 120W
Relative humidity ≤90%
Remote control distance ≥30m,≤100m
Net weight 35kgs
Speed 3S, 6S
Max boom length 6 meters





Why to choose WEJOIN Boom barrier Gate?





1. Barrier Gate uses the third generation motor. It is stable and has long service life performance, running one million times.

2. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

3. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.

4. Safety pjhotoelectricity limit switch

5. Barrier Gate is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.
