RFID barrier gate Security Full height Turnstile for Subway , Metro

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJFT610
Minimum Order Quantity: 1PC
Price: Negatiation
Packaging Details: Wooden box
Delivery Time: 10-15 days
Payment Terms: EXW,FOB,CIF
Supply Ability: 50PCS/Week
Contact Now
Product Description

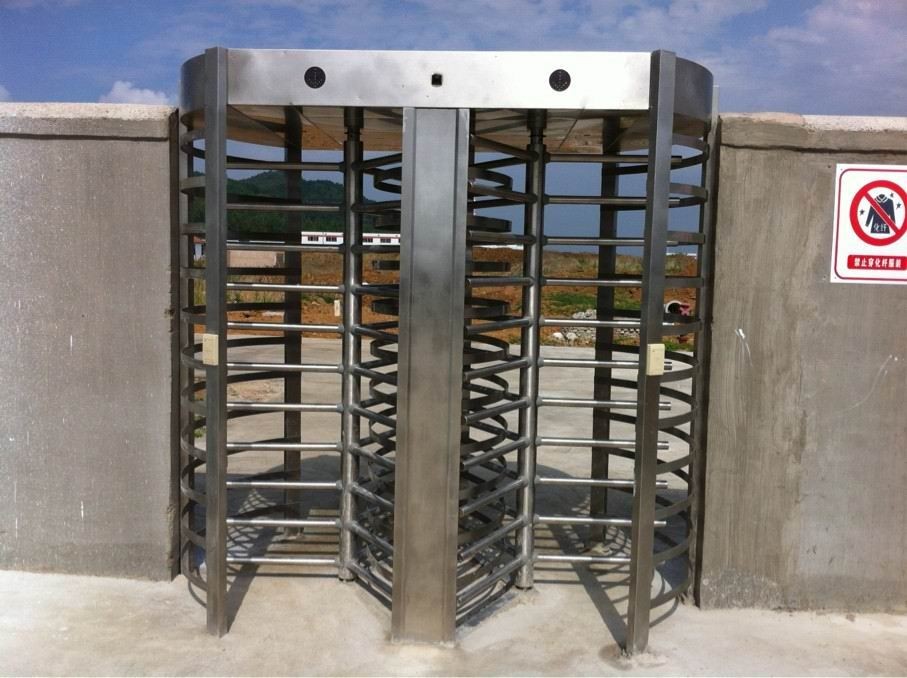

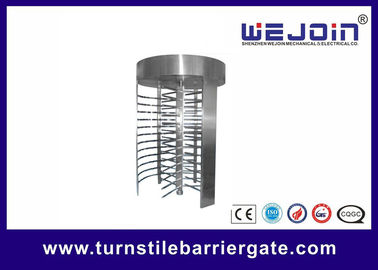

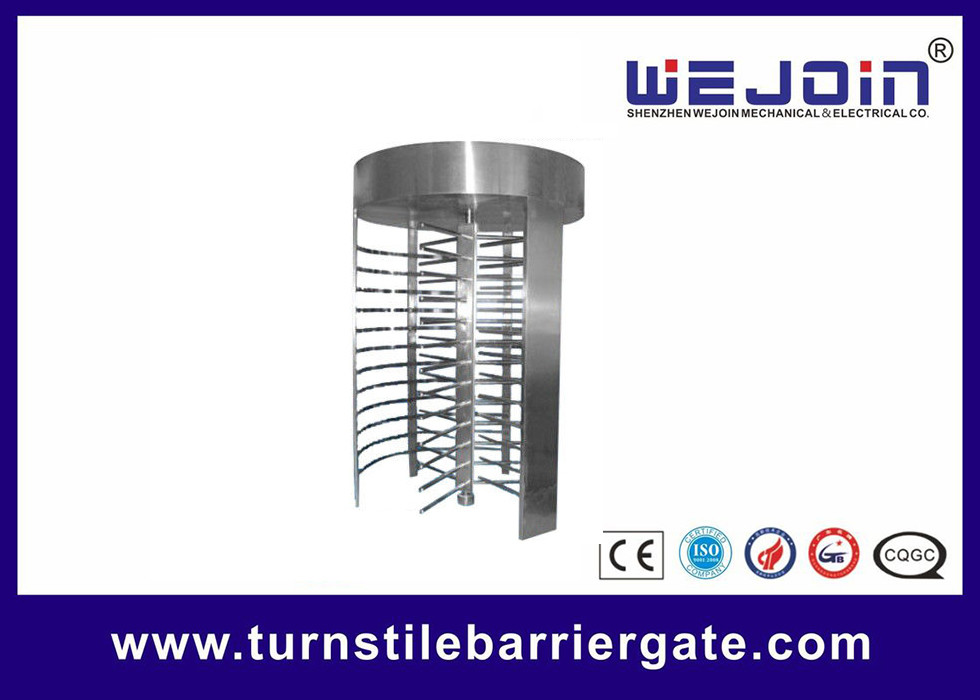

RFID barrier gate Security Full height Turnstile for Subway , Metro





Quick Detail:





  1. Name: Full height turnstile
  2. Feature: Compatiable with IC, ID, magcard, bar code
  3. Timel for opening: 0.2s
  4. Material : Stainless steel
  5. Relative temperature:10°C~50°C
  6. Application: Gateway guard
  7. Certificate: CE,ISO
  8. Voltage : 110V/220V







Operation Place





Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control





Description:





Counting Function of the controller, LED figure display function (optional)

2. Anti-strike function. Turnstile gate will be locked when there is no open signal.

3. Two rotors allow four possible control points, two entries and two exits. Each rotor can be controlled in one or two directions

4. To gain authorized passage through the turnstile, the user must present a valid card for the access control system.

5. The center rotor will be set free (default) or locked (optional) automatically when the power is off.

6. Compatible with several control devices such as IC, ID, magcard, bar code and so on.

7. Emergency-escape function: the center rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off

8. The turnstile can also work with push button, fingerprint and face recognition access control system.
9. The full-high turnstile is designed to combine the functions of two single rotor turnstiles into one turnstile.

10. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.





Specifications




Model
Item
WJFT601 WJFT602 WJFT603 WJFT610 WJFT611 WJFT612
Material of Housing 201 / 304 Stainless Steel
Thickness of Housing 2.00mm
Dimension of Housing
(L×W×H mm)

1630×1500×

2300

1400×1200×

2300

1630×1500×

2300

2800×1813×

2400

2150×1260×

2300

2210×1500×

2300

Length of Pole
(out of framework)
610mm 470mm 510mm 610mm 470mm 610mm
Net Weight 170kg 250kg 230kg 650kg 560kg 650kg
Max Load-bearing of Pole 80kg 30kg 80kg 80kg 30kg 80kg
 Light Indicator Direction indicating
Produce Processing Laser cutting fully controlled by computer
Input Interface  Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V
  Driving Force of Pole 3kgs
Transmission of Pole Digital Transmission
Working Temperature 10°C~50°C
Rotating Direction Single/Double Direction (optional)
Communication Interface Standard RS485 (D<=1200 m)
Power Supply 220V/110V±10%
Time for Opening 0.2 second
Transit Speed 30~40 person/ minute
Working Environment Indoor / Outdoor (with Shelter)
Relative Humidity 90%, no condensation
Frequency 50/60HZ
