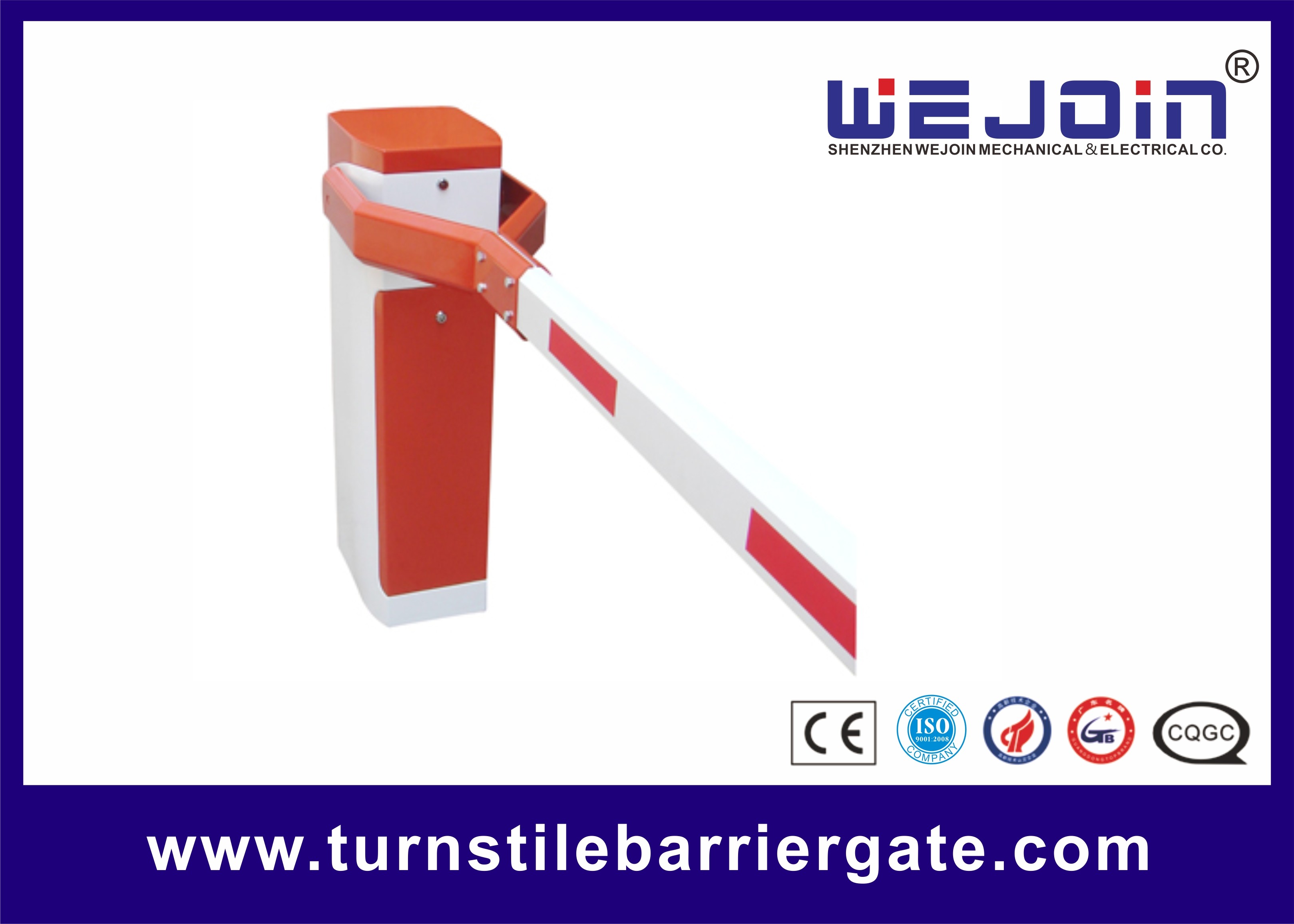

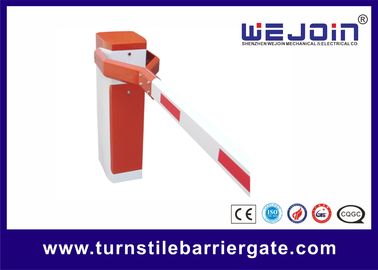

Car Parking Lot Vehicle Barrier Gate System With IC Card Interface

Basic Information
Place of Origin: Shenzhen,China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ203/204
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 2w units/weeke
Detail Information
COM Interface: RS485 Voltage: 110v/220v
Boom Type: Straight Arm; Folding Arm; Fence Arm Max Boom Length: 6 Metes
Housing Material: Steel Motor Material: Die-casting Aluminum Alloy
High Light:

traffic barrier gate

,

parking lot barrier

,

Supermarket Vehicle Barrier Gate


Product Description



Car Parking Lot Vehicle Barrier Gate System With IC Card Interface





Quick Detail:





Name: Boom barrier Gate

Voltage: AC220V, AC110V

Application: Supermarket gate

Speed:1s,3s,6s

Feature: IC Card interface

Rated Power:80W

Certificate:CE, ISO,

Net Weight:60KG





Description:



Model Selection and Differences



Model Boom Shape Boom Length Speed
WJDZ203/204-13 Straight boom 4.5m 3 seconds
WJDZ203/204-16 Straight boom 6 m 6 second





Functions & Features:





  • 1. Reversing on obstacle
  • 2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation
  • 3. Motor cooling fan to avoid the over-heating possibility
  • 4. Advanced Manual release:Auto-reset when power on
  • 5. Auto closing realization through menu setting on the control panel
  • 6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light
  • 7. Optional speeds:1s,3s and 6s, can  be selected on the control board
  • 8. Motor cooling fan,solves the problem of over-heat





Applications:





Boom Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate running time is 1s,3s and 6s. It can be used for toll system, bus station,bank,parking system, factory gate,toll system  and so on.





Specifications





Model WJDZ203/204
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Speed 1/3/6s
Relative humidity ≤90%
Remote control distance ≥30m
Max boom length 6meters
Rated power 80W
Net weight 60kgs





Why to choose WEJOIN Vehicle  Barrier Gate?





  • 1. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.
  • 2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.
  • 3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
  • 4. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.
  • 5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
  • 6. Unique appearance,nice color accomplish the modemized housing.
  • 7. Remotecontrol and wire control for selection





Communication with customers





Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q:Motor works but there is no reaction on the arm

A: Please check whether the clutch device is locked or not



Q:Why the boom is abnormal when rising and falling if the user changes a new control board

A: Please adjust the "Gate Type Selection" (Refer to the control board)



Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
