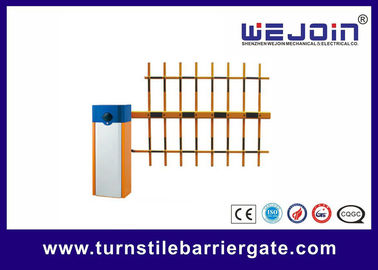

Automatic car Parking Barrier Gate for Highway toll collection

Basic Information
Place of Origin: CHINA
Brand Name: WEJOIN
Certification: CE ISO SGS
Model Number: WJDZ10156
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: carton
Delivery Time: 3-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000 sets/month
Detail Information
Voltage: 110v/220v Speed: 6S
Motor Material: Die-casting Aluminum Alloy Housing Material: Steel
Max Boom Length: 4 Metes Boom Type: 3Fence Arm
High Light:

auto barrier gate system

,

car park barriers


Product Description



Automatic car Parking Barrier Gate for Highway toll collection







Quick Detail:





1. Name: High Speed Barrier Gate

2. Net Weight: 60KG

3. Speed: 6 second

4. Rated Power: 80W

5. Application: Highway toll

6. Feature: Manual release

7. Certificate: CE, ISO,

9. Voltage: AC220V, AC110V





Functions & Features:





a. Motor cooling fan to avoid the over-heating possibility

b. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

c. Manual release device to operate the barrier when power failure

d. Automatic reversing when the barrier boom meets the obstruction

e. Auto closing realization through menu setting on the control panel

f. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

g. RS485 Communication Module is compatible

h. Machine core with compression spring, effectively avoids the accidents caused by spring breaking.





Applications:





Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.





Specifications :





Model WJDZ10156
Working Temperature -35℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Speed 6S
Max boom length 4 meters



Why to choose WEJOIN High Speed Barrier Gate?



1. High Speed Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll.

2. High Speed Barrier Gate uses swing away boom holder. The boom is out of the holder when it is hit, which protects the barrier core and prolong lifetime of the barrier.

3. High Speed Barrier Gate uses the first generation motor. It is stable and has long service life performance, running 3 million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

4. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

5. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.





Communication with customers

Q: What's WEJOIN monthly production capacity for barrier gate?

A: 3000 units.



Q: As for the over-heating problem of barrier gate

A: WEJOIN barrier gate has motor cooling fan which can solve the problem of over heating-protection. WJDZ601 and WJDZ701 don't have motor cooling fan, but the aluminum alloy housing of WJDZ601 can make the heat radiate quickly, and there’re shutters on the housing to let wind in.



Q: Sometimes, Why the barrier boom would open automatically?

A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.

Q: What’s the remote control distance?

A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.





Detail Preview:





Machine Core:





Automatic car Parking Barrier Gate for Highway toll collection 0
