Fashionable Auto Electronic Barrier Gates / Vehicle Access Control Barriers

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ601
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton 109*39*42cm
Delivery Time: 3~7 working days depending on quantity
Payment Terms: T/T, Western Union
Supply Ability: 10000 units/Monthly
Detail Information
Features: Auto Warming-up Boom Type: Straight,90/180 Degree Folding ,2/3 Fencing
Voltage: 110v/220v Power: 120w
Protection Grade: IP 44 Gross Weight: 44kg
High Light:

automatic car park barriers

,

parking gate arm


Product Description

Fashionable Auto Electronic Barrier Gates / Vehicle Access Control Barriers

Electronic Barrier Gates Quick Detail:
(1) Name: Bi-directional Barrier Gate
(2) Application : Parking System
(3) Speed: 3/6 second
(4) Feature: Manual release
(5) Rated Power: 80W
(6) Certificate:CE, ISO,
(7) Net Weight:60KG
(8) Voltage: AC220V, AC110V


Electronic Barrier Gates Description:
Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WJDZ60116

Straight boom

4.5m

6 seconds

WJDZ60113

Straight boom

4m

3 seconds

WJDZ60126

90 degree, Articulated boom

4m

6 seconds

WJDZ60123

90 degree, Articulated boom

3m

3 seconds

WJDZ60136

180 degree, Articulated boom

4m

6 seconds

WJDZ60133

180 degree, Articulated boom

3m

3 seconds

WJDZ60146

Two-level, fence boom

3.5m

6 seconds

WJDZ60156

Three-level, fence boom

3m

6 seconds


Electronic Barrier Gates Functions & Features:
1. No need to change the balance spring when changing the booms
2. Boom can rise and fall on left/right side by setting on the same machine
3  Advanced manual release
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch


Why to choose WEJOIN Bi-directional Barrier Gate?
Barrier Gate with aluminum alloy housing is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.

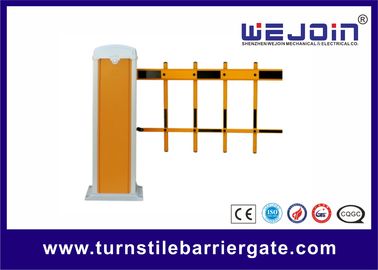

Fashionable Auto Electronic Barrier Gates / Vehicle Access Control Barriers 0
