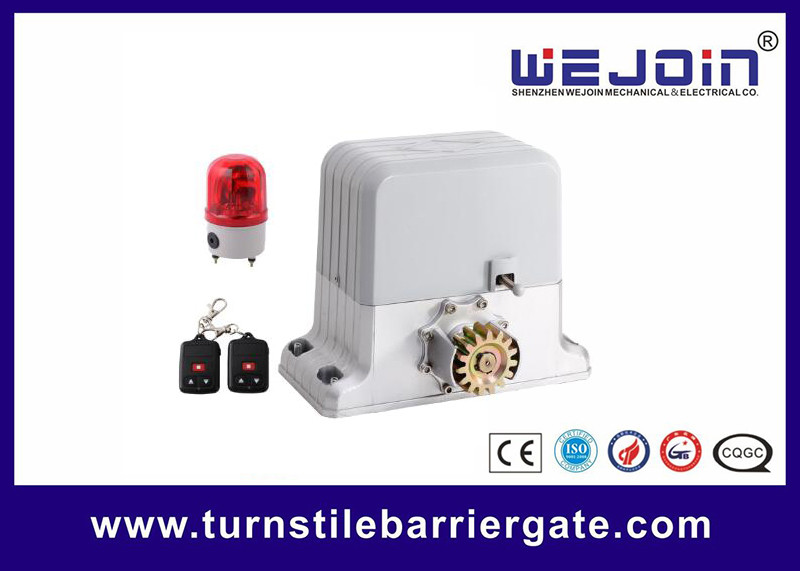

Remote Control Electric Sliding Gate Opener 418MHZ for Sliding Gate

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: negotiable
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Voltage: 220 V / 110 V Max. Weight Of Gate: CCC
Remote Control: 418MHZ Wire Control: Available
Manual Release: Yes Type: Gate Operators
High Light:

sliding gate opener motor

,

electric gate operators


Product Description

Remote Control Electric Sliding Gate Opener 418MHZ for Sliding Gate



Functions:

1. Integrated electromechanical design
2. Electronic soft start
3. Reversing on obstacle
4. Infrared photocell socket
5. Alarm light socket
6. Wires control and remote control
7. Delay closing
8. Reversing sensitivity adjustable
9. Bus-mastering (various operation ways)
10. Automatic warm-up



Instruction of use
1). After checking and debugging all the parts, fix up the motor shell. close the clutch and the cover of the lock hole.
2). When the power is cut off, open the clutch. Then move the gate manually. When the power is on, close the clutch and run it b electricity.



Troubleshooting
I. The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.

B: Check whether the limit iron is installed right. Adjust the position of the limit iron.



Service Item
1. One year maintenance services provided free of charge
2. Life-long repairing with charge offered11.

3. Technical support



Packing list

Name

Quantity

Unit

Remark

Sliding gate operator

1

set

Necessary

Remote control

2

pcs

Necessary

Internal hexangular bolt

4

pcs

M8*40

Internal hexangular bolt

4

pcs

M6*16

Left limit iron

1

pcs

Necessary

Right limit iron

1

pcs

Necessary

Base board

1

pcs

Necessary

Release key

2

pcs

Necessary

Manual

1

pcs

Necessary

Infrared photocell

1

set

Optional

Radio emitter

1

set

Optional
