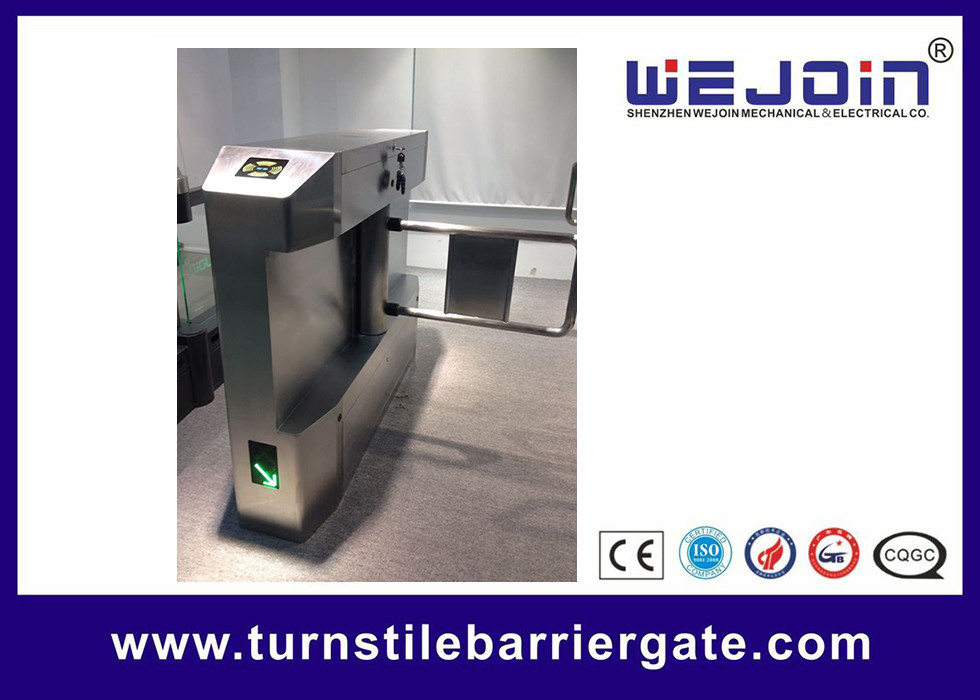

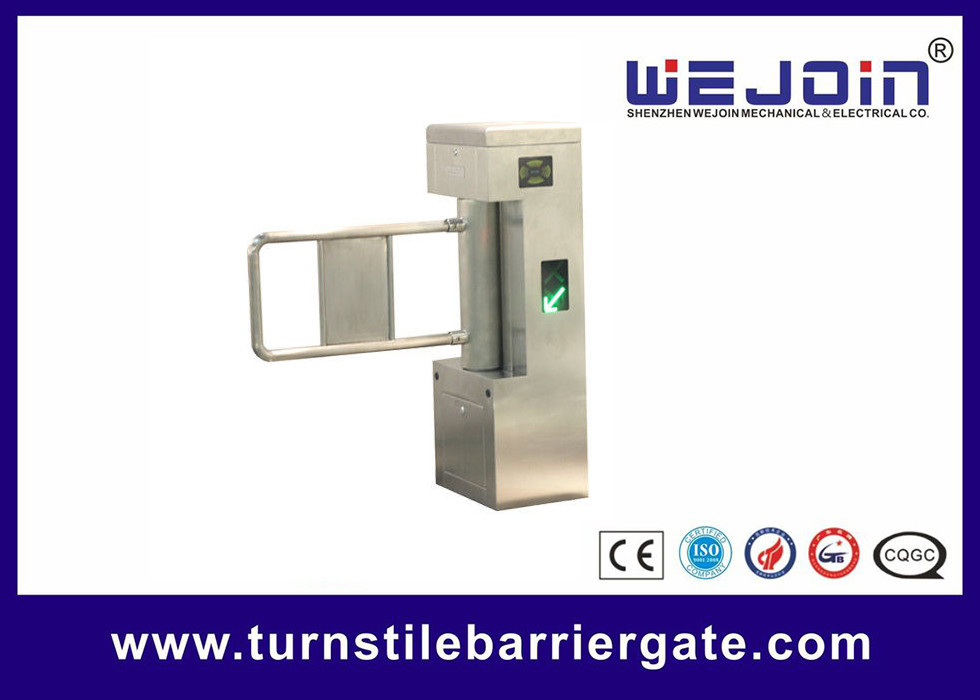

220V/110V Durable Access Control Swing Barrier Gate With High Quantity

Basic Information
Place of Origin: Shenzhen
Brand Name: WEJOIN
Certification: ISO,CE
Model Number: WJTB103
Minimum Order Quantity: 2sets
Packaging Details: wooden
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 2000sets/month
Detail Information
Housing Material: Stainless Steel Power Supply Frequency: AC220V±10%, 50HZ,AC110±10%, 60HZ
Drive Motor: 12V Direct Current Brush Motor
High Light:

speed gate systems

,

waist high turnstiles


Product Description

Technical data

1. Housing material: stainless steel 304

2. Power supply/frequency: AC220V±10%, 50HZ,  AC110±10%, 60HZ

3. Drive motor: 12V direct current brush motor

4. Flow speed: 25~30/minute

5. Input interface: +5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).

6. Opening and closing time: 0.5 minute

7.  Power on and reset time: 3s

8. IP protection degree: IP 32

10. Temperature: -25ºC~+50ººC



Functions and features

1. a compact electro-mechanical design with unique drive and a self-lock mechanism

2. automatic detection for malfunction

3. input interface for dry contact and switch signal connection

4. adjustable auto-delay closing

5. infrared photocells for safety access

6. alarm for unauthorized access and no access against passenger flow

7. anti-reversing passing

8. auto closing when power on

9.  auto open and free access when power off

10. adjustable access directions

11. emergency interface available

12.   traffic light indicating passenger access



220V/110V Durable  Access Control Swing Barrier Gate With High Quantity 0
