1800KG Heavy duty sliding gate motor manufacturers with gear rack

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Supply Ability: 10000 set / month
Detail Information
Type: Gate Operators Power Supply: 220V
Material: Aluminum Alloy Die-cast Usage: Sliding Gate
Function: Control Remote Control: 418MHZ
High Light:

sliding gate opener motor

,

electric gate operators


Product Description

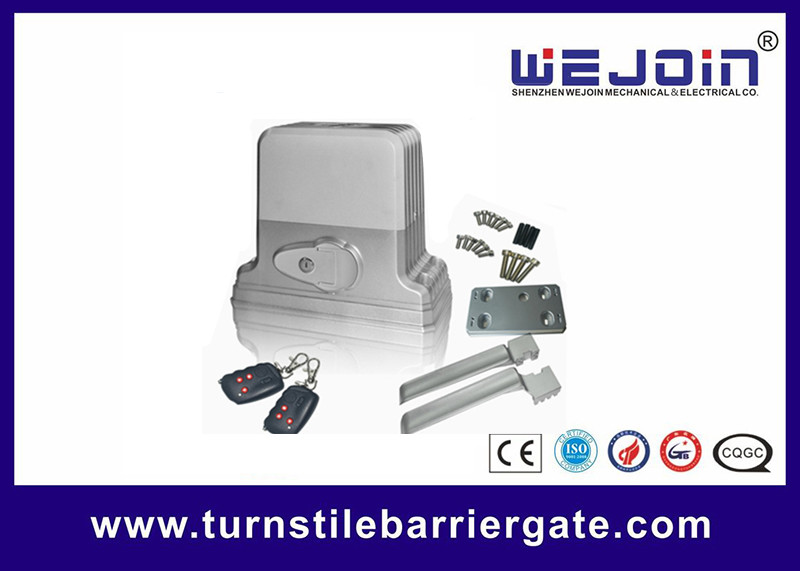

1800KG Heavy duty sliding gate motor manufacturers with gear rack



Function and Features
1. Integrated structure of the mechanic and electron. No need to install other controllers.
2. Electronic soft-start.
3. Automatically restraining when meets obstacle.
4. Crash proof and automatically restraining socket.

5. Crash proof (photocell).
6. Alarm light socket.
7. Line control and Remote control are optional.
8. Intelligent automatic heating function.
9. Automatically increase the temperature when the temperature is below 0 degree.



Motor Data

Model: KMP202

Voltage: 220V±10%, 110V±10%

Frequency: 50/60Hz

Current: 2.7A, 5.8A

Motor voltage: AC 220V/110V

Capacitor: (220V) 20µF, 60µF+14µF

Power: 350W

Torque: 35nm

Motor number: M=4

Motor speed: 1350rpm, 1620rpm

Gear speed: 58.8rpm, 70.2rpm

Travel speed: 11m/min, 13.2m/min

Working temperature: -40°c~ 55°c

Overload protection temperature: 130

Relative humidity: ≤90%

Motor making technique: die casting aluminum alloy

Manual Release: yes

Remote distance: >30m

Product weight, approx: 10.19kg, 10.25kg

Max, weight of gate: 1800kg



Electronic Data

Model

KMP202

Soft start

YES

Stop on obstacle (sensitivity adjustable)

YES

Auto warming-up (at freezing temperature)

YES

Remote control

418MHz (50m, approx)

Wire control

Available

Auto closing

YES

Vehicle loop detector socket

YES

Photocell socket

YES

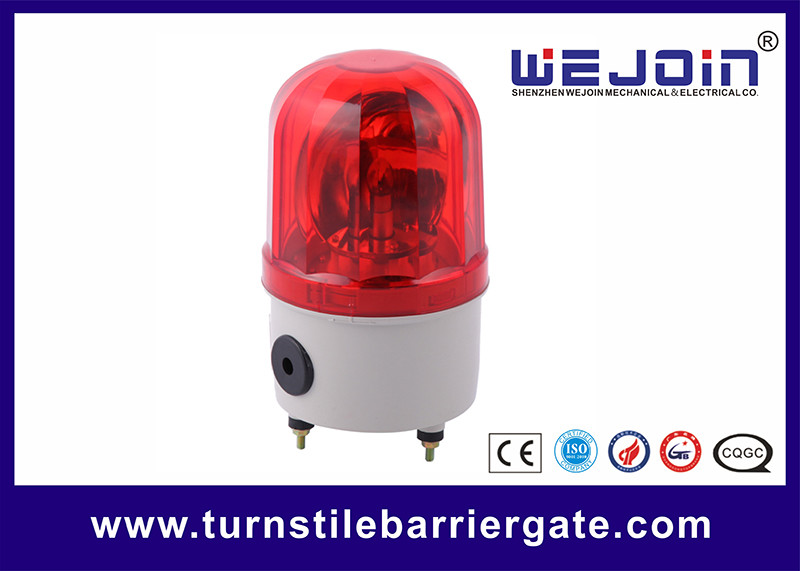

Alarm light socket

YES



Motor base and it's installation

1. Motor base installation: set the installation position of the base tray according to the size of the motor and the height of the installation position of the gear rack. Then Embed the bolts in advanced or use the expansion bolts to embed the base into the cement foundation.
2. If the gear rack has already been installed, fix the motor to th base and turn the clutch with the clutch key to the off position, then make the gear of the motor suit right to the gear rack, then the position of the base can be set. Take off the motor and fix the base.

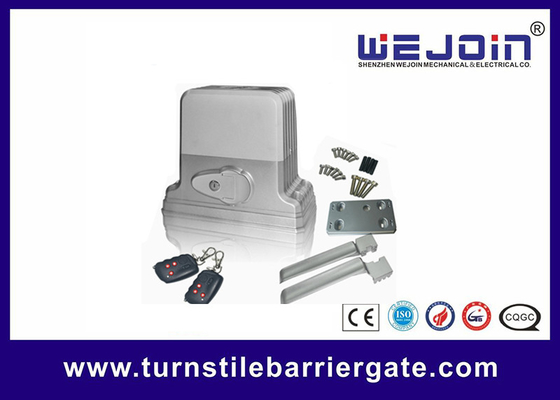

1800KG Heavy duty sliding gate motor manufacturers with gear rack 0
