motorized automatic sliding gate electric motor with photocell sensor

Basic Information
Place of Origin: SHENZHEN
Brand Name: WEJOIN
Certification: CE,ISO,SGS
Model Number: WJMP202
Minimum Order Quantity: 1 SET
Price: USD 150-200 SET
Packaging Details: Carton
Payment Terms: T/T, Western Union
Supply Ability: 10000 set / month
Detail Information
Color: Sliver Material: Aluminum
Usage: Villa Gate Name: Sliding Gate Operator
Function: Driving Protection Class: IP55
High Light:

sliding gate opener motor

,

automatic sliding gate opener


Product Description

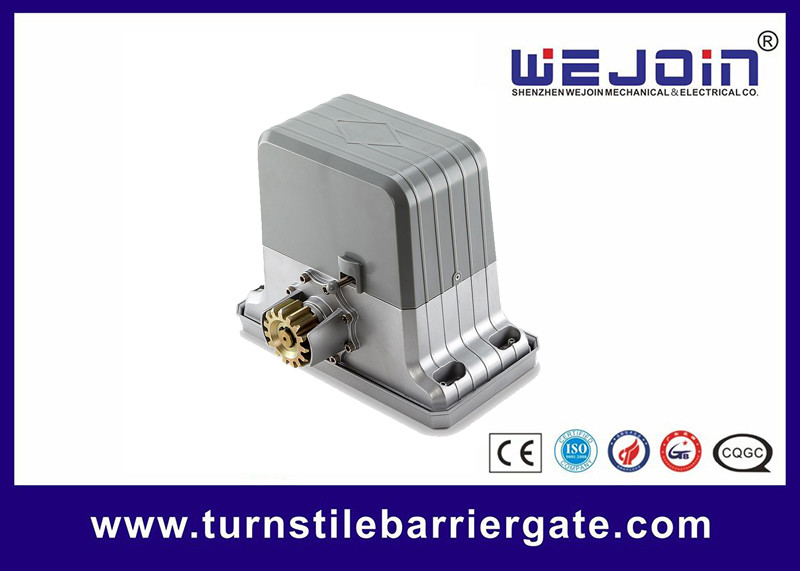

motorized automatic sliding gate electric motor with photocell sensor





Specification

1) Integrated mechanical and eletrical,all functions on one controller

2) Radio controller or linesto control open,close and stop functions

3) Magenetic limit switch,the door stops when it moves to the limit

4) Accurate limit braking

5) Electronic soft-start

6) Dialing switches to adjust the motor rotation in both directions

7) Open and close limits have a self-locking function

8) Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key- stroke.

9) Movement indication-the indicator lights up when the door is moving.

10) Optional line control or remote control



Motor Data

Model: KMP 202

Motor speed: 1350rpm, 1620rpm

Gear speed: 58.8rpm, 70.2rpm

Travel speed: 11m/min, 13.2m/min

Working temperature: -40°c~ 55°c

Overload protection temperature: 130

Relative humidity: ≤90%

Motor making technique: die casting aluminum alloy

Manual Release: yes

Remote distance: >30m

Product weight, approx: 10.19kg, 10.25kg

Max, weight of gate: 1800kg



Troubleshooting

1. Crash proof is not effective.
A Check whether the connection of crash proof is correct.

B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right.
2. When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether it works well.
3. The remote control doesn't work
A: Check whether the battery is low. If yes, change it.

B Check whether the code of the remote control is the same with the code of the control panel.



Service Item
1. One year maintenance services provided free of charge
2. Life-long repairing with charge offered11.

3. Technical support



motorized automatic sliding gate electric motor with photocell sensor 0
