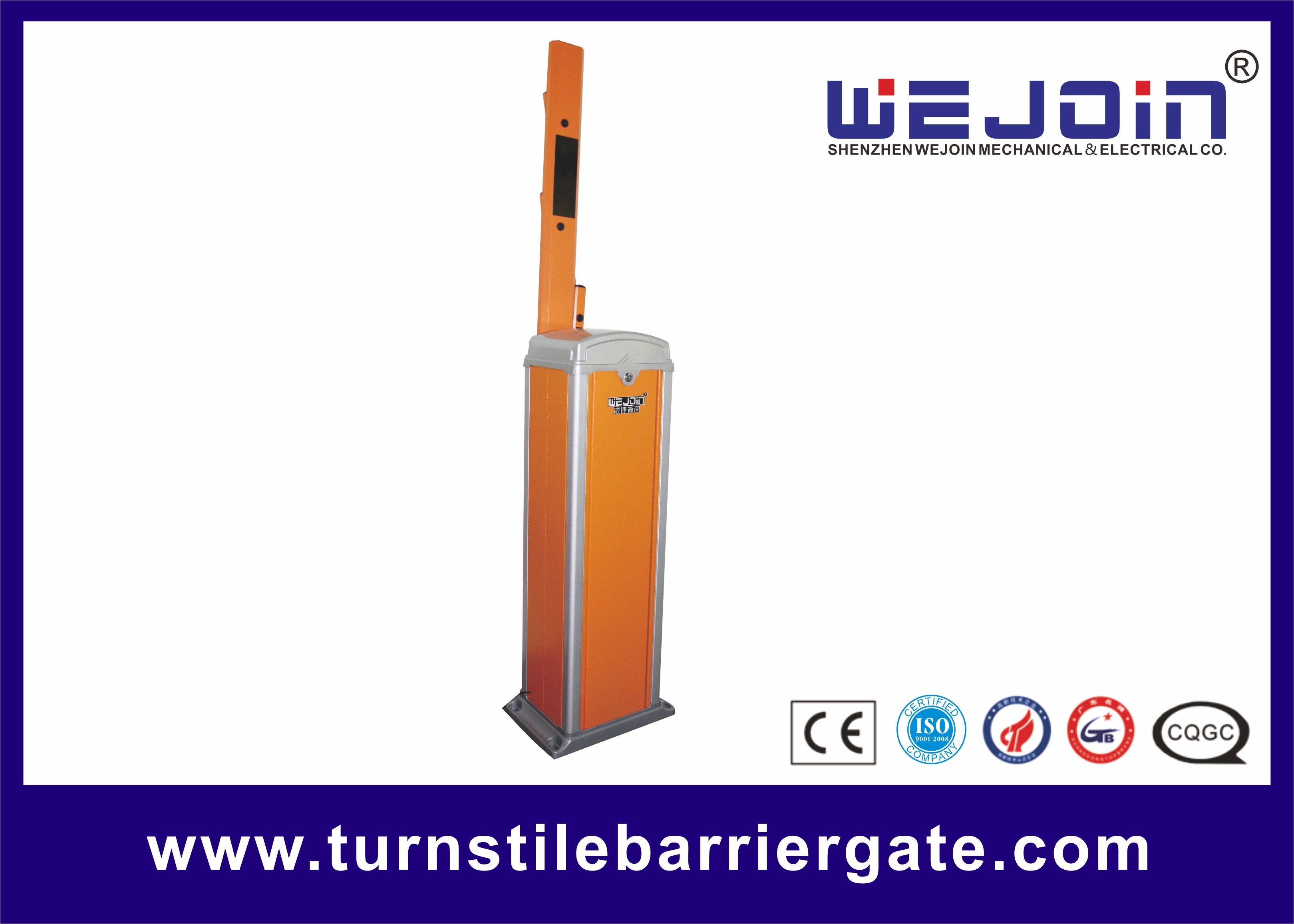

110V / 220V Remote Control Automatic Road Barriers For Parking System

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE, ISO,
Model Number: WJDZ601
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Carton box
Delivery Time: 3~7 working days
Payment Terms: T/T, Western Union
Supply Ability: 5000 units/ month
Detail Information
Material: 110V /220V Package: Carton
Color: Orange Net Weight: 60KG
Rated Power: 80W Voltage: AC220V, AC110V
Speed: 3s,6s
High Light:

parking gate arm

,

automatic parking barrier


Product Description

110V / 220V Remote Control Automatic Road Barriers For Parking System







Model Selection and Differences





Model Boom Shape Max Boom Length Speed
WJDZ60116 Straight boom 4.5m 6 seconds
WJDZ60113 Straight boom 4m 3 seconds
WJDZ60126 90 degree, Articulated boom 4m 6 seconds
WJDZ60123 90 degree, Articulated boom 3m 3 seconds
WJDZ60136 180 degree, Articulated boom 4m 6 seconds
WJDZ60133 180 degree, Articulated boom 3m 3 seconds
WJDZ60146 Two-level, fence boom 3.5m 6 seconds
WJDZ60156 Three-level, fence boom 3m 6 seconds





Technical Data





Name Barrier Gate Application Parking System
Speed 3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 120W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~75℃ Humidity ≤90%
Remote Control Distance ≤50m Boom Dimension 45*100mm
Net Weight 39kg Gross Weight 44kg
Certificate CE/ISO Boom Type Octagonal boom





Functions & Features:





1. Advanced manual release
2. Boom can rise and fall on left/right side by setting on the same machine
3. No need to change the balance spring when changing the booms
4. Adopts the 3rd generation WEJOIN machine core
5. Supports the infrared photocell for anti-bumping function (optional)
6. Supports the external and internal vehicle loop detector (optional)
7. Auto closing
8. RS485 communication module (optional)
9. Thermal radiates rapidly, no thermal protection
10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
11. Special art and craft makes out the most modernized and fashionable housing
12. Safety photo electricity limit switch





Applications:





Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times. And the barrier can work with parking system very well, and can be used in door and outdoor.







Why to choose WEJOIN Bi-directional Barrier Gate?





1. Barrier Gate with aluminum alloy housing is suitable for vehicle flux control of the access. This barrier gate is unique for its good looking, and full molding design for all main parts. Die-cast by aluminum alloy, the barrier gate is anticorrosive. Compact design of machine core adopts big reduction ratio technology, realizes machine core more compact and smart looking. Unique transformed boom can rise and fall on left/right sides under the direction. Just need one standard of balance spring can suit to all length of the booms, no need to change the spring.

2. Barrier Gate with aluminum alloy housing screen uses the third generation motor. It is stable and has long service life performance, running one million times.

3. Special barrier core makes its installation direction adjustable. Also The barrier works well with the barrier can be changed booms with different length, without changing its spring. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. Manual release device can operate the barrier when power failure.

4. WEJOIN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
