| Place of Origin: | China |
|---|---|
| Brand Name: | WEJOIN |
| Certification: | CE, ISO, |
| Model Number: | WJDZ102 |
| Minimum Order Quantity: | 1 set |
| Price: | USD+350-495+set |
| Packaging Details: | Carton Package |
| Delivery Time: | 3-7 working days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 sets per month |
| Material Of Housing: | Iron | Speed Of Motor: | 1s,1.8s,3s,6s |
|---|---|---|---|
| Max Boom Length: | 6m | Standard Color: | Orange |
| Standard Package: | Carton Package | Boom Type: | Straight Boom; Folding Boom; Fence Boom |
| High Light: | automatic car park barriers,vehicle barrier gates |
||

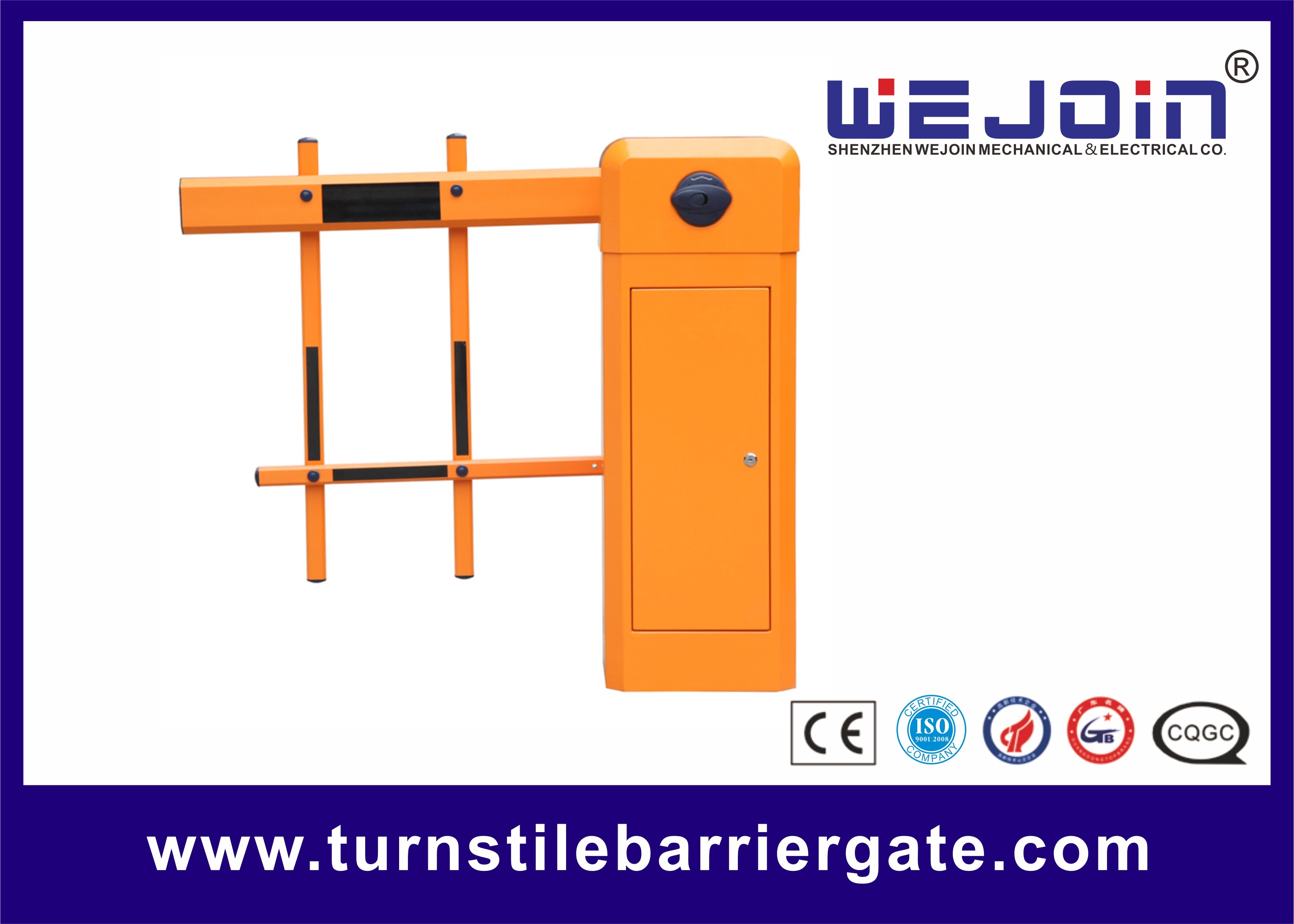

Car Barrier Arm Gates / Automatic Barrier Gate with Folding Boom
Application
Suitable for indoor as well as outdoor parking area
Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access
shopping malls, hospitals, stadiums, business centers,etc.
Technical Specification
|
Description |
Parameter |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
60kgs |
|
Arm Speed |
1s, 1.8s, 3s, 6s |
|
Max boom length |
8 meters |
Ordering Information
|
Model No. |
Open/Close Speed |
Max Boom Length |
Boom Type |
|
WJDZ10216 |
6 seconds |
6m |
Straight boom |
|
WJDZ10213 |
3 seconds |
4.5m |
Straight boom |
|
WJDZ10211 |
1 second |
3m |
Straight boom |
|
WJDZ10226 |
6 seconds |
5m |
90 degree, Articulated boom |
|
WJDZ10223 |
3 seconds |
3m |
90 degree, Articulated boom |
|
WJDZ10236 |
6 seconds |
5m |
180 degree, Articulated boom |
|
WJDZ10233 |
3 seconds |
3m |
180 degree, Articulated boom |
|
WJDZ10246 |
6 seconds |
4.5m |
Two-level, fence boom |
|
WJDZ10256 |
6 seconds |
4m |
Three level, fence boom |
Advanced Features:
1. Safe---the barrier will automatically go back when meet obstacles during closing.
2. Swing Out- Arm will swing out when hit directly by vehicle (only 1 second model ) to avoid further damage on the vehicle.
3. Clutch key can be used to release the clutch when power off.
4. Fan cooling machine reduces the motor temperature by high frequency using, and never get over-heated. Unique temperature calefaction design for low temperature using prevents freezing in cold weather.
5. Exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate working life.
6. Thimble type motor worm design for preventing plugging up in using.
7. Balance spring--- no noise and easy adjusting.
8. Double limit ways (electronic limit and motor sensor memory limit) for boom rising and falling.
Basic Features:
AC motor is more powerful and no maintenance.
Boom can be chosen from 3 meters to 6 meters, and barrier closing time is also arranged from 1 second to 6 seconds.
All the operation process is soft without any noise and shaking.
Infrared photocell interface, Loop detector interface and IC system interface are reserved for the other functions.
Green light and red light are used inside for indication the position of the boom.
Barrier housing Dimension
Study and strong housing 2.5 mm thickness mild steel, Housing is polished, phosphorized and further finished
with plastic coating to ensure long lasting bright colors
Model: WJDZ102 Dimension: 330*285*934mm
