110V/220V 900mm full-automatic access control flap gate

Basic Information
Place of Origin: Shenzhen,CHINA
Brand Name: WEJOIN
Certification: CE,ISO
Model Number: WJTY312
Minimum Order Quantity: 1 apir
Price: USD+1920---1980+ a pair
Packaging Details: wooden package
Delivery Time: 3-5 working days after payment received
Payment Terms: T/T, Western Union
Supply Ability: 2000pair per month
Detail Information
Housing Material: 304 Stainless Steel Max Width Length: 900mm
Wing Material: Resin, Or PVC Standard Package: Wooden Package
Leading Time: 3-5 Working Days After Payment Received Transit Speed: 30~40/min
Housing Dimension: 1400*305*1020mm
High Light:

optical turnstile

,

half height turnstile


Product Description

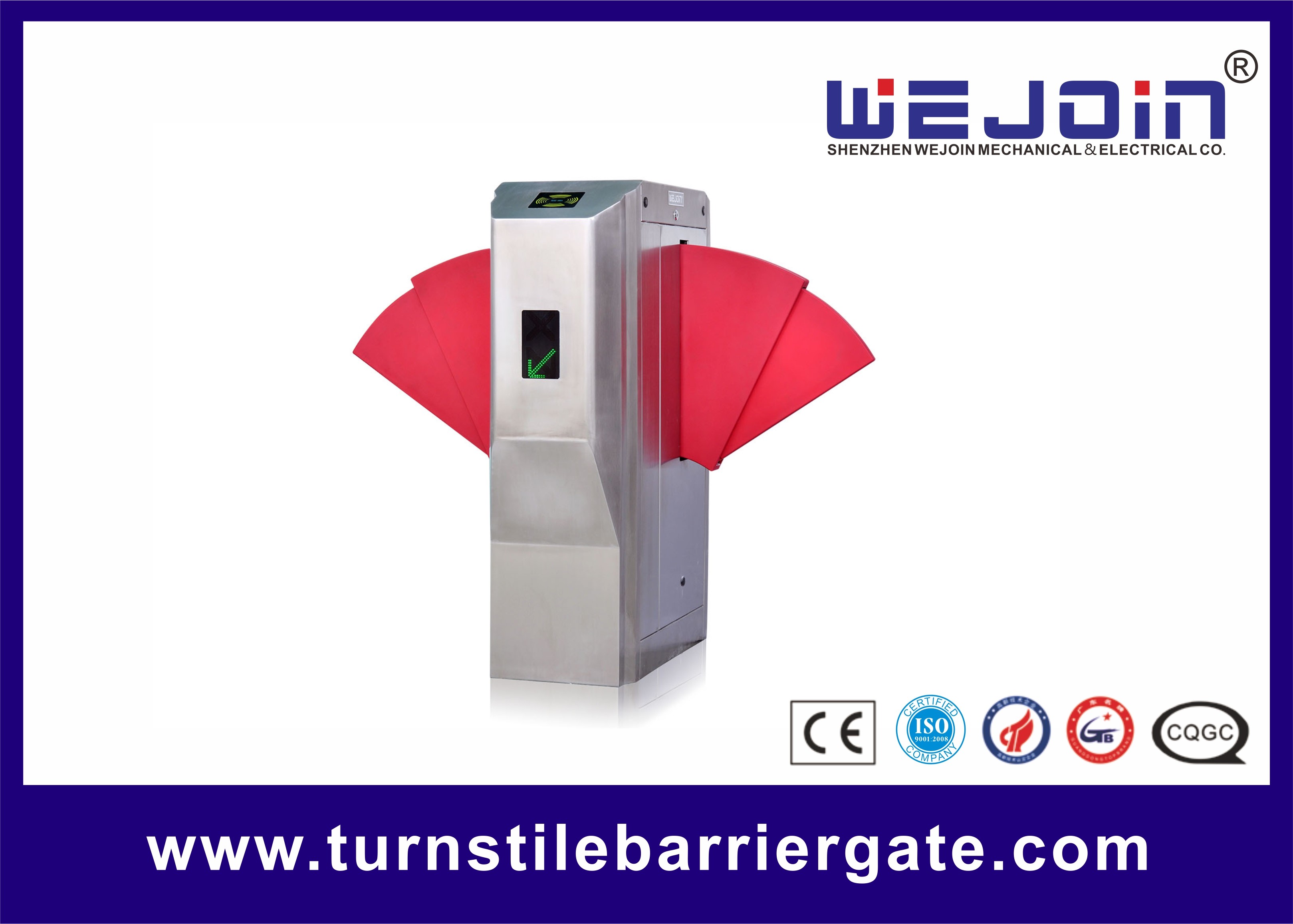

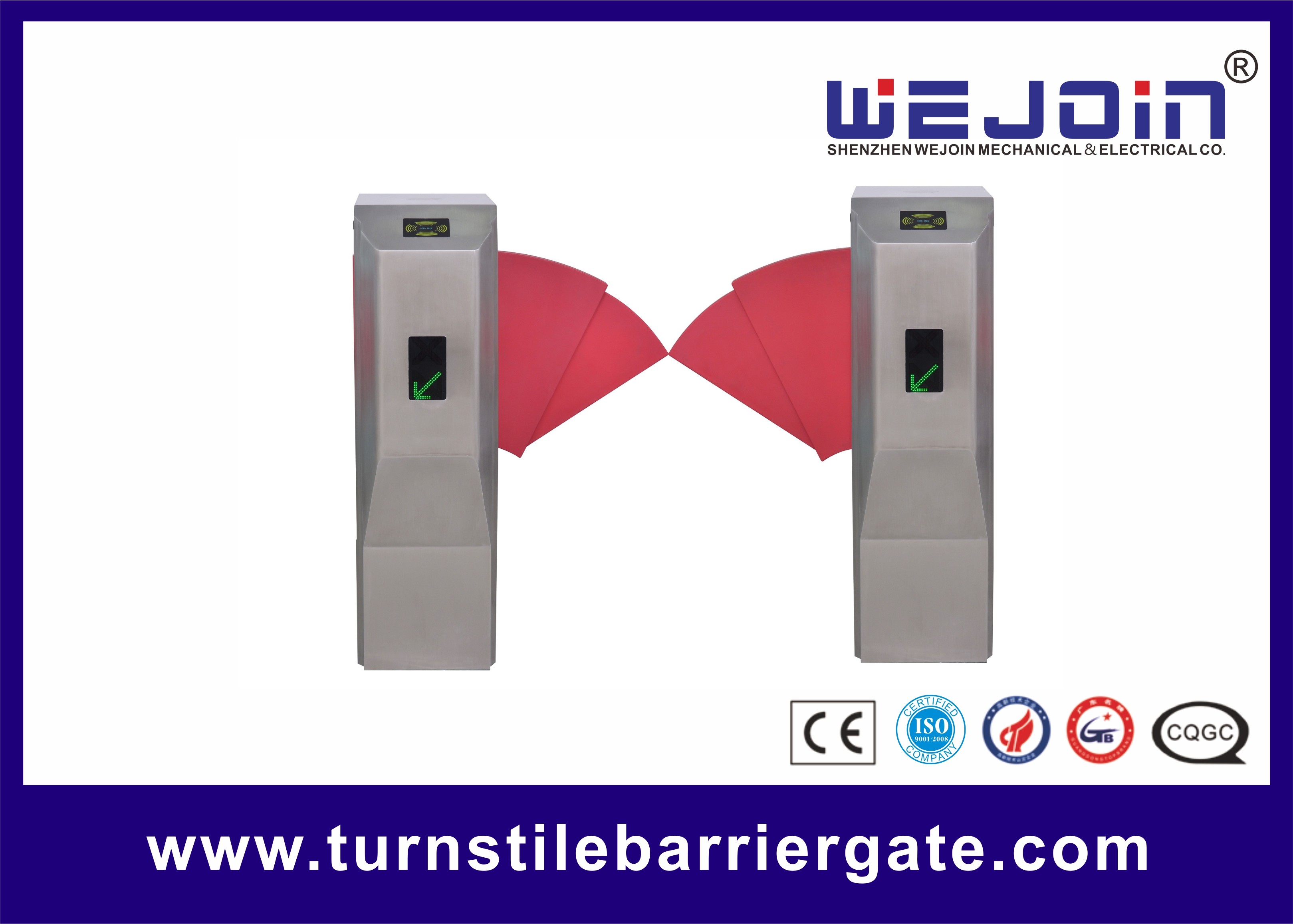

110V/220V 900mm full-automatic access control flap gate

Flap Barrier Description:



Intelligence flap barrier (block gate) is product with intelligent management of high-tech mainly for staff access. Flap barrier is upgrade of intelligent tripod turnstiles and swing gates.The product with precision processed, complete function and high quality, mainly used in high-end residential, intelligent buildings, hotels, subway, pier, clubs and other places.
The flap barrier organically integrated mechanism, electronic, microprocessor control and a variety of identification technologies. It's easy to integrated IC card, ID card, bar code platform, fingerprint, facial recognition and other devices. It could coordinated realize intelligent controls and management for channel by matching various identification system equipment and the using reliable security devices, alarm devices and direction indication.



Feature and Function:

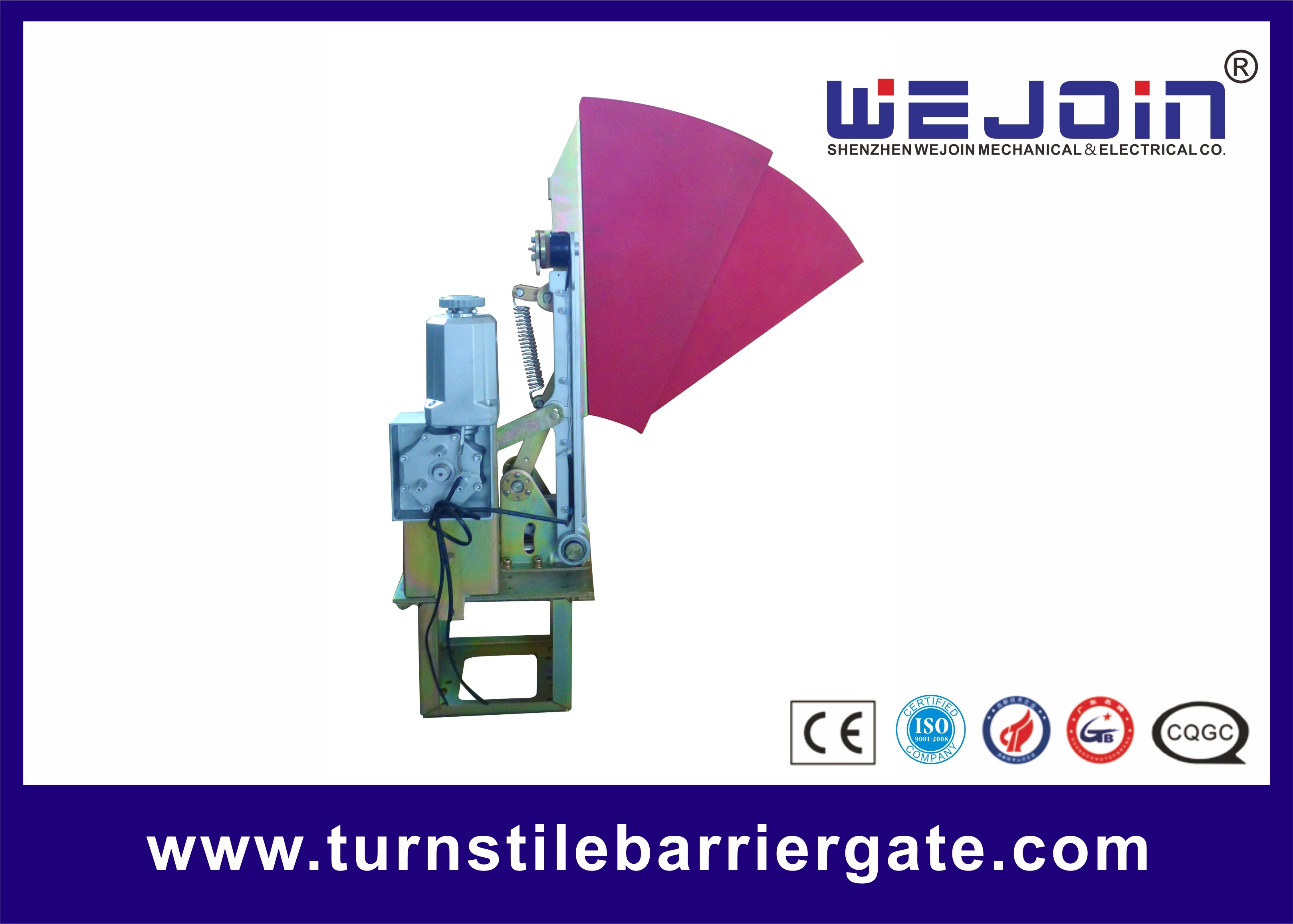

1. A compact electric and mechanical design with unique drive which ensure product durability and silent

operation, and its self-lock mechanism can also well protect the access control security.

110V/220V 900mm full-automatic access control flap gate 0



2.WEJOIN flap barrier barriers have automatic detection for malfunctions, which will be convenient for

customer to maintain and operate.



3.WEJOIN flap barrier barriers have input interface that are available for dry contact and switch signal

connections. So that customers can integrate the flap barrier with different system, like card reader, ticket

 system, token system etc.





4.WEJOIN flap barrier barriers have auto delay closing function, after the flaps open if no pedestrian passes.



5.WEJOIN flap barrier barriers can be integrated with fire control device, which allow the release on

emergency for security consideration.



6.WEJOIN flap barrier barriers have audible and visual alarm in case of unauthorized access, which can

 strengthen the entrance security.



7. Infrared photocells for safety access



8. Anti-reversing passing



9. Auto closing when power on



10. Auto open and free access when power off



11. Adjustable access directions



13. Traffic light indicating passenger access





Specifications:

Model

WJTY312

Stretching-out flap length

440mm

The max lane width

900mm

Cabinet material

304 Stainless Steel

Material of Flap Door

Resin, or PVC

Housing of thickness

1.5mm

Normal Life Span

3 millions times

Communication Interface

Standard RS485(distance less than 1200 meters)

Transit speed

30-40 persons/min

Time for opening or closing

1s

Starting time after power on

3s

Input interface

Dry contact signal or +12Vor pulse signal with width more than

100ms DC12V

Transit speed

30~40 persons/min

Working temperature

-10°C~50°C

Working environment

Indoor / Outdoor (Shelter)

Relative humidity

≤95%, no condensation
