Powder Coated Boom Folding Barrier Gate Vehicle Access Control Barriers

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: CE
Model Number: WJDZ820
Minimum Order Quantity: 1set
Price: USD380-420USD
Packaging Details: Carton or Wooden
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 6000/month
Detail Information
Motor Material: Die-casting Aluminum Alloy Seciruty: Yes
Comunicate Modual: Yes Housing Finished: Powder Coated
Time Optional: 1.5s, 3s,6s Boom Type: Folding Or Straight
CE Certificate: Yes
High Light:

security barrier gate

,

traffic barrier gate


Product Description

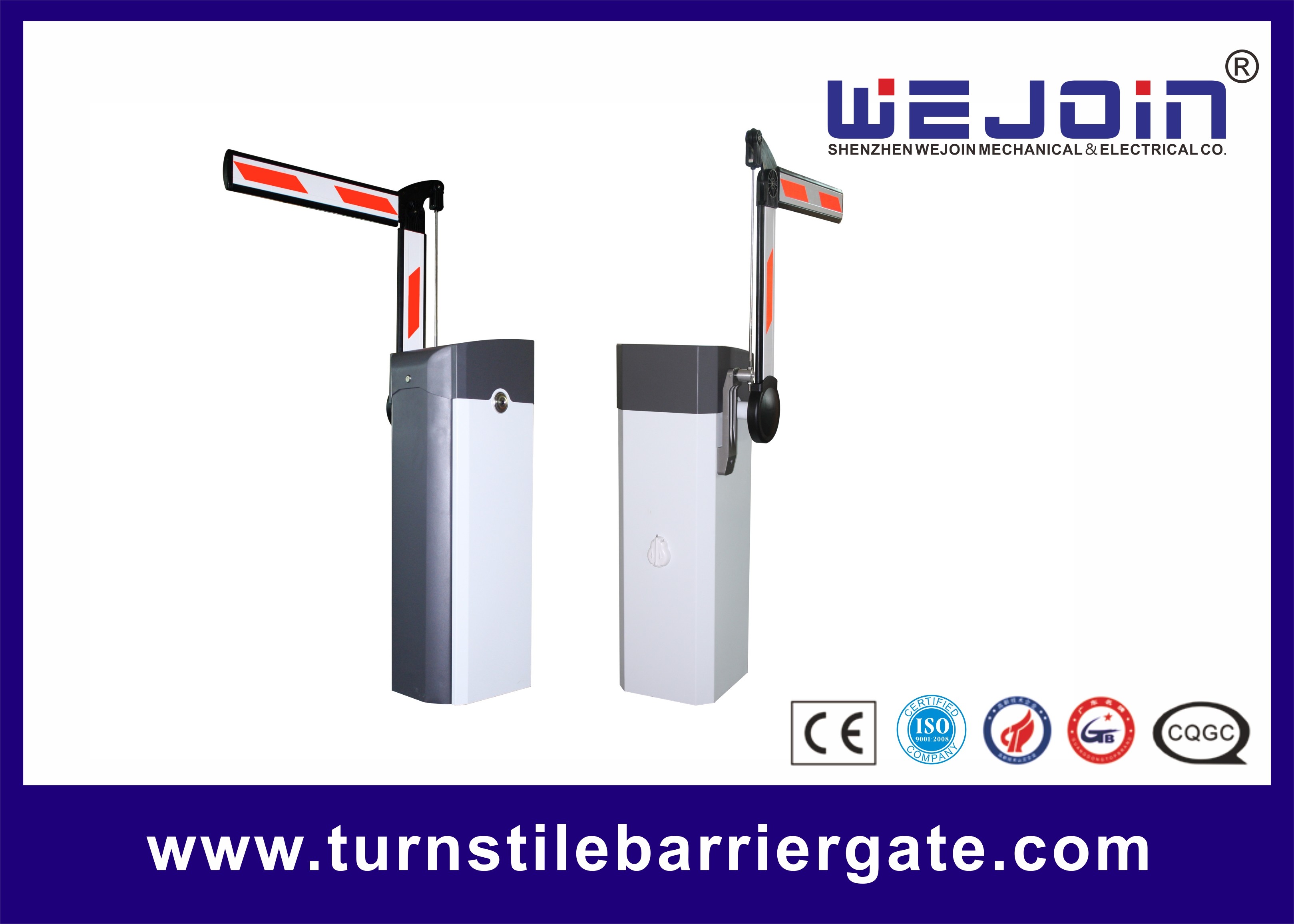

Powder Coated Boom Folding Barrier Gate Vehicle Access Control Barriers



General Introduction:

1, A cutting-edge automation equipment for effective traffic control and management

2, Robust reliable flexible

3, With attractive design, this boom will reduce the operation load of the barrier gate and prolong its lifespan

4, Maximum boom length is 4 meters

5, Brand new process design makes the high strength and stainless folding arm



Functions & Features:

1. Open the gate by motor wheel when power off and automatic locking when power on

2. Balance boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto reverses when the boom meets obstacles

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Installation on both sides (left or light)

10. Auto-delay when closing (adjustable)

11. Boom with protective rubber band



Specification:

Model

Item

820-11

820-13

820-16

820-23

820-26

820-33

820-36

820-46

820-56

Running time

1.5sec

3sec

6sec

3sec

6sec

3sec

6sec

6sec

6sec

Boom type

straight

90 degree folding

180 degree folding

2fencing

3fencing

Max boon length

3M

4.5M

6M

3M

5M

3M

5M

4.5M

4M

Boom dimension

25*80mm

45*100mm

Boom weight

3kg

4.5 kg

6 kg

6.5 kg

8 kg

9 kg

11 kg

7 kg

7.5 kg

Voltage

AC220V±10%, AC110± 10%

Frequency

50/60HZ

Motor voltage

220V

Power working temperature

80W

working temperature

-35centigrade~+60centigrade

Protection degree

IP44



Application:

Car parks:

Underground parking facilities;

Perimeter entrances and access roads at industrial sites, airports, ports and stations



Boom installation Direction Adjustment:

Powder Coated Boom Folding Barrier Gate Vehicle Access Control Barriers 0



Powder Coated Boom Folding Barrier Gate Vehicle Access Control Barriers 1
