Flow Control Handicap Flap Pedestrian Barrier Gate Optical Turnstiles

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO
Model Number: WJTY202
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: WOODEN
Delivery Time: 3-7DAYS
Payment Terms: T/T
Supply Ability: 3000 SETS
Contact Now
Detail Information
Speed Time: Adjustable Housing Material: SST 304
Flap Material: Oganic Glass Infrared Photocell: 8 Pair
Customized Products: Yes Motor: DC12V Brush Motor

Product Description

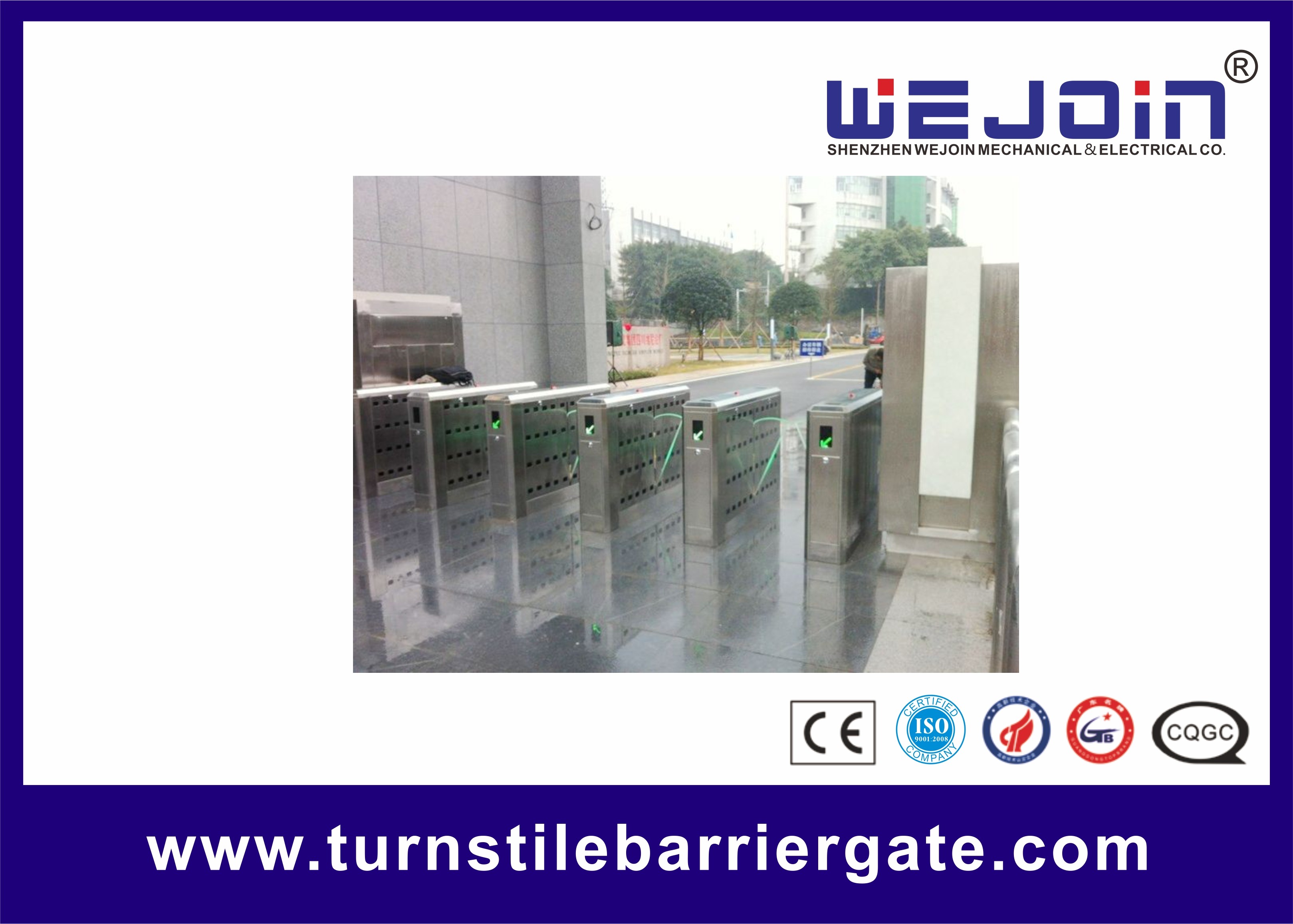

Flow Control Handicap Flap Pedestrian Barrier Gate Optical Turnstiles



Feature:



  • Flap will auto close if there is no pedestrian passing through after the delay time elapsed.This will avoid unauthorized user from sneaking into the building when flap was opened wrongly. The delay time can be preset in control panel.
  • Built in high sensitivity infrared photocell to detect unauthorized and abnormal access. Alarm will sound and red light to alert security guard. Flap shall remain securely locked if it did not receive any authorized signal from access control system.
  • LED display at front and back can be set to display correct passage direction once activated. This ensure pedestrian go into the correct lane when multiple flap barrier is installed side by side. Display can show “X” if no access is permitted.
  • Compared to tripod turnstile, Flap barrier allow wider opening and more comfortable passage for pedestrian of any size. User can bring along luggage or big parcel to pass through. Flap barrier can also allow user on wheel chair to pass through.
  • Flap barrier support up to 0.8 sec opening / closing time. This allow higher pass through traffic rate and effectively reduce long queue in front of entrance/exit door during peak hour.
  • Flap will only close after all IR sensor confirmed that the pedestrian has finished passing through.This ensure flap will not crush onto a pedestrian. During power failure, flap will automatically open by itself to allow free passage for emergency escape. Flap will automatically close back when power resume. Intelligent sensor will auto reverse the flap if there is a sudden incoming obstacle while the flap is closing. Flap will also auto reverse if there is something blocking the flap to avoid motor overload and damage itself.

Data:



                  Model

Item

WJTY201

WJTY301

WJTY311



WJTS111

Material of Housing

304 Stainless Steel



Material of Flap Door

Organic Glass, Resin, or PVC



Iron with powder

Dimension of housing

1200*270*1000

1450*315*1020

1400*305*1020



420*380*1050

Thickness of housing

1.5mm



Max Width of Passage

600

900

900



Net weight

70kg

140 kg

85 kg



45 kg

Normal Life Span

3 millions times



Communication Interface

Standard RS485(distance less than 1200 meters)



Transit speed

30-40 persons/min



Power supply

220V±10%, 110± 10%



Frequency

50/60HZ



Working voltage of motor

DC24V



Time for opening or closing

1s



Starting time after power on

3s



Input interface

Dry contact signal or +12Vor pulse signal with width more than

100ms DC12V





Transit speed

25~32 persons/min



Working temperature

-10°C~50°C



Working environment

Indoor / Outdoor (Shelter)



Relative humidity

≤95%, no condensation





Dimension:


 Flow Control Handicap Flap Pedestrian Barrier Gate Optical Turnstiles
