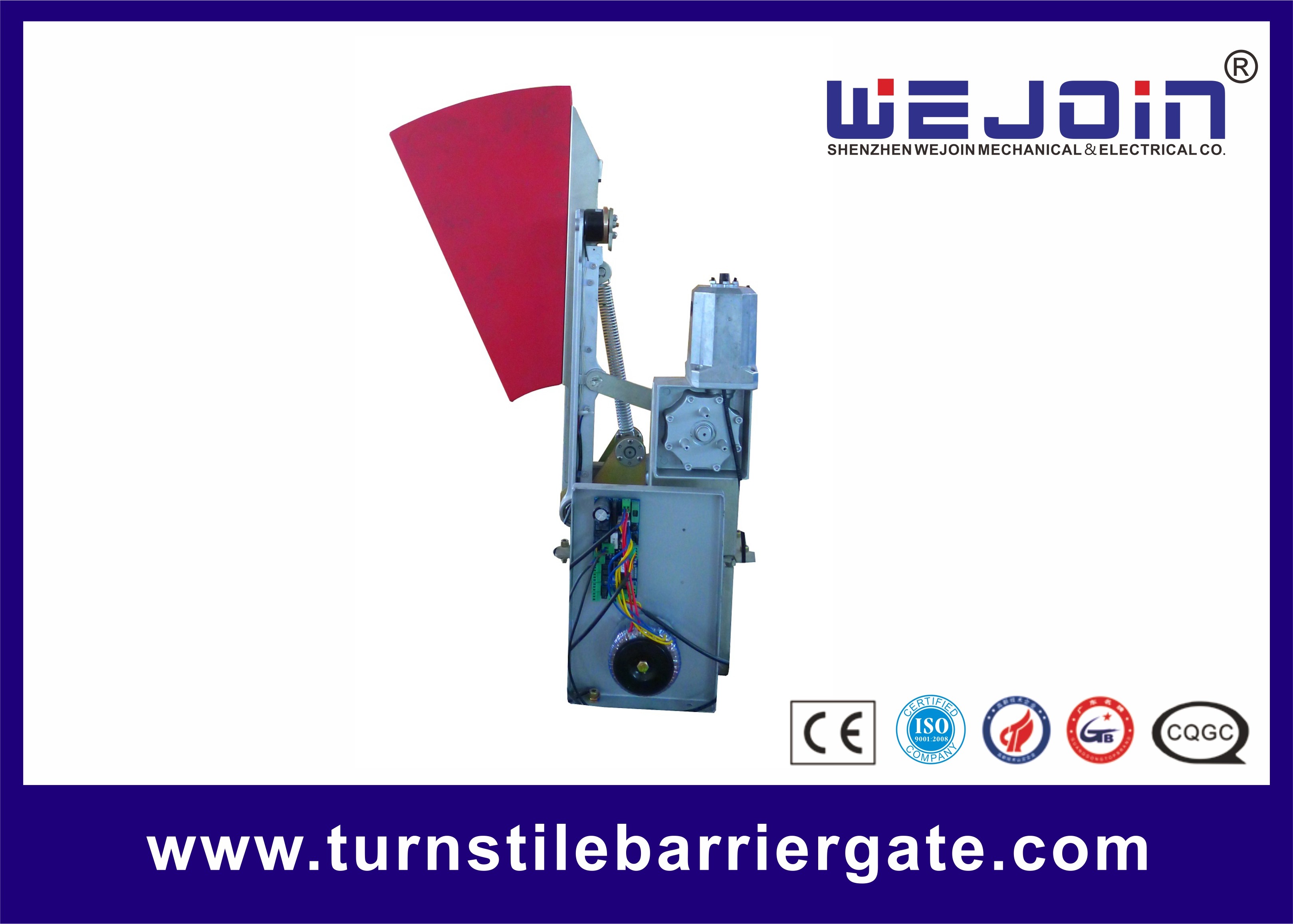

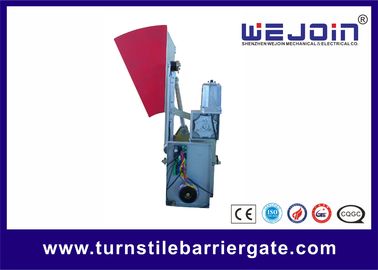

1s High Speed Stainless Steel Flap Turnstile Entry Systems Swing Turnstile

Basic Information
Place of Origin: China
Brand Name: WEJOIN
Certification: ISO,CE
Model Number: WJTY301
Minimum Order Quantity: 1set
Price: Negotiation
Packaging Details: WOODEN
Delivery Time: 3-7DAYS
Payment Terms: T/T
Supply Ability: 3000 SETS
Detail Information
Close Opening Time: 1s Housing Finished: Stainless Steel
Flap Speed: Adjustable Flap Material: Oganic Glass
Infrared Photocell: Yes Customized Products: Yes
Safety: Yes Opening/closing Time: Adjustable
Wing Color: Red
High Light:

security turnstiles

,

optical turnstile


Product Description


1s High Speed Mechanical Turnstile Entry Systems Swing Turnstile


Features:

1.Zero position self-checking function, which offers users a convenient way to use and maintain it;
2.The warning function of indicating illegal intruders;
3.The function of anti-impulse: the expansion baffle (swing-arm) is self-locked before receiving the signal of opening the gate;
4.Infrared and mechanical anti-nipping function: when the expansion baffle (swing-arm) is blocked with something in the course of turning back, with
little force, the motor will stop working in the regular time, and send out
the alarm signal.
5.The function of automatic reposition: if one doesnt pass in the regular time
set by the system after the card being read validly, the system will
automatically cancel his/her passing right.
6.The standard outward electric interface can be connected with many kinds
of card readers and realize remote control and management through
running the computer.
7. The whole system is running steadily with low noise.


Function:
1. With function of self-examine and alarm, it is convenient for maintenance and use.
2. Be able to program running status by the small keyboard in the main board
3. Flap door will stop move when it is being blocked, which prevent pedestrians from being nipped and from
hurt.
4. Light and sound alarm is generated when the illegal invasion and the tail followed.
5. Arms are automatically locked until opening signal is received.
6. Arms synchronization (adjustable)
7. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.(default time is 10sec.)
8. Automatically open the gate when power off and automatically close when power on.
9. Several readers devices are attachable.(IC, ID access control, fingerprint access control, barcode ticket access control, facial identification access control, time attendance machine est.)

10. One direction or bi-direction is optional.
11. It can be directly controlled and managed by remote control.

Data:
1) Electrical source voltage: AC220±10% V50HZ
2) Driving motor: direct current motor 24V/100W
3) Temperature of the working environment: -15OC - 60 OC
4) relative humidity: ≤90%, not dewing
5) input interface: 12V electrical level signal or 12V pulse signal with the
pulse width100ms driving electric current10mA
6) communication interface: RS485 electric standard
7) communication distance: ≤1200 meters
8) gangway width: wing barrier: 600mm; the length of a single bar of swing gate barrier: 600-900mm

9) Passing speed: 30 people/min ( always open mode), 20 people/min(always close mode)
10) Time of gate opening and closing: wing barrier :1s, swing gate barrier:2-3s

Specifications:


Model

WJTY301

Cabinet dimension

1715mm(L)×315mm(W)×1020mm(H)

Stretching-out flap length

440mm

The max lane width

900mm

Cabinet material

cold rolled steel & aluminum alloy

Power supply

AC220V±15%, AC110V±15%  50/60Hz

Motor voltage

DC24V (brush motor)

Access device input voltage

dry contact

Max flow rate

30~40 people per minute

Flap opening/closing time

0.5s ~ 1s

reset time when power on

2s

protection grade

IP32

working environment

outdoors (with shelter) and indoors.

working temperature

-25°C ~ +50°C
